10t h12m Mechanical Workshop 415V M5 Q235B Wire Rope Pulling Winch
10t 15t h12m Mechanical Workshop 415V M5 Q235B Wire Rope Pulling Winch
JK fast series Winch mainly used for large and oversize concrete of steel installation and disassembly of mechanical equipment.This structural characteristic is wirerope orderly arrangement lifting is safe and realiable.It is suitable for bridge port and ect road and bridge engineering and large factories and mines engineering equipments installation.
| Y brand winch | WINCH TECHNIQUE PARAMETER | |||||||||||
| Rated load (KN) | Rated speed (m/min) | Rope capacity (m) | Rope Diameter (mm) | Motor type | Motor power (KN) | Overall dimension (mm) | Weight(Kg) | Type | ||||
| JK MODEL FAST SPEED ELECTRONIC CONTROL WINCH | JK0.5 | 5 | 22 | 190 | 7.7 | Y100L-4 | 3 | 620*701*417 | 200 | / | ||
| JK1 | 10 | 22 | 100 | 9.3 | Y112M-4 | 4 | 620*701*417 | 300 | / | |||
| JK1.6 | 16 | 24 | 150 | 12.5 | Y132S-4 | 5.5 | 945*996*570 | 500 | / | |||
| JK2 | 20 | 24 | 150 | 13 | Y132M-4 | 7.5 | 945*996*570 | 550 | / | |||
| KK3.2 | 32 | 25 | 290 | 15.5 | YZR180L-6 | 15 | 1325*1335*840 | 1011 | / | |||
| JK3.2B | 32 | 30 | 250 | 15.5 | YZR200L-6 | 22 | 1900*1738*985 | 1500 | / | |||
| JK5 | 50 | 30 | 300 | 21.5 | YZR225M-6 | 30 | 1900*1620*985 | 2050 | / | |||
| JK5B | 50 | 25 | 210 | 21.5 | YZR225M-8 | 22 | 2250*2500*1300 | 2264 | / | |||
| JK8 | 80 | 25 | 160 | 26 | YZR280S-8 | 45 | 1533*1985*1045 | 3000 | / | |||
| JK10 | 100 | 30 | 300 | 30 | YZR315S-8 | 55 | 2250*2500*1300 | 5100 | / | |||

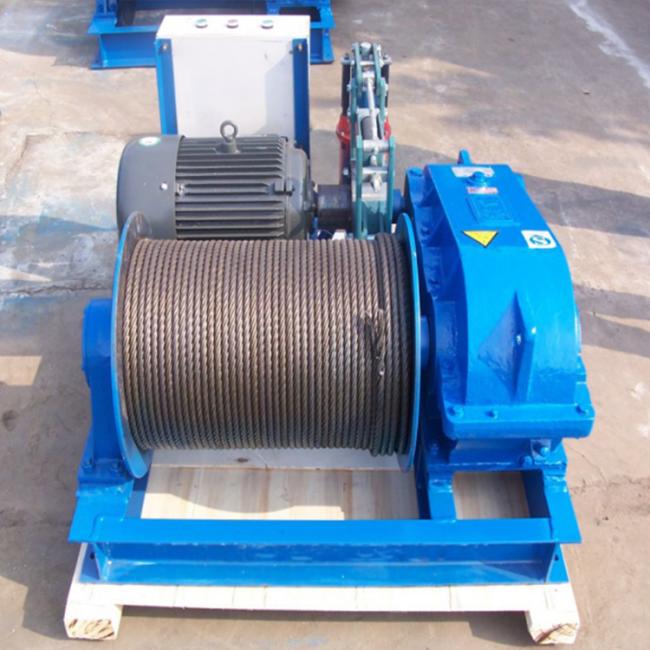

Electric winch generally includes the following units:
1. motor.
2. Reduction gear box.
3. winch drum.
4. Brake.
5. electric control system.
6. optional rope guider.
