3T 5T Electric Wire Rope Hoist Lifting Equipment 30m Light Weight
Kuangyuan Brand 1T 2T 3T 5T Electric Hoist Lifting Equipment

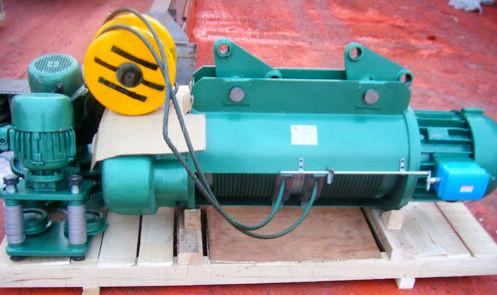

Electric hoist is a special kind of lifting equipment installed on overhead cranes and gantry cranes. Electric hoists have the characteristics of small size, light weight, simple operation and convenient use. They are used in industrial and mining enterprises, storage, docks and other places.
|
Parameters
|
||||||||
|
Model
|
CD/MD
0.25t
|
CD/MD
0.5t
|
CD/MD
1t
|
CD/MD
2t
|
CD/MD
3t
|
CD/MD
4t
|
CD/MD
5t
|
|
|
Lifting Weight
|
0.25
|
0.5
|
1
|
2
|
3
|
5
|
10
|
|
|
Lifting Height(m)
|
3-9
|
6-12
|
6-30
|
6-30
|
6-30
|
6-30
|
6-30
|
|
|
Lifting Speed(m/min)
|
8(8/0.8)
|
8(8/0.8)
|
8(8/0.8)
|
8(8/0.8)
|
8(8/0.8)
|
8(8/0.8)
|
7(7/0.7)
|
|
|
Running Speed
|
20(30) m/min
|
|||||||
|
Wire Rope Model
|
6×19-3.6
|
6×37-4.8-180
|
6×37-7.4-180
|
6×37-11-155
|
6×37-13-170
|
6×37-15-200
|
6×37-15-200
|
|
|
I-beam Track Model
|
16-22b
|
16-28b
|
16-28b
|
20a-32c
|
20a-32c
|
25a-63c
|
28a-63c
|
|
|
Minimum radius of circular orbit(m)
|
0.8
|
1.5
|
1.5-4
|
2-4
|
2-4
|
2.5-5
|
3.5-9
|
|
|
Lifting Motor
|
Motor
|
ZD12-4
|
ZD21-4
|
ZD22-4
|
ZD31-4
|
ZD41-4
|
ZD41-4
|
ZD51-4
|
|
ZDS0.2/1.5
|
ZDS0.2/1.5
|
ZDS0.4/3
|
ZDS0.4/4.5
|
ZDS0.8/7.5
|
ZDS1.5/13
|
|||
|
Capacity
|
0.4
|
0.8 0.2/0.8
|
1.5 0.2/1.5
|
3 0.4/3
|
4.5 0.4/4.5
|
7.5 0.8/7.5
|
13 1.5/13
|
|
|
rotation rate
|
1380
|
1380
|
1380
|
1380
|
1380
|
1400
|
1400
|
|
|
Power supply
|
3P 380V 50HZ
|
|||||||
The electric hoist has a compact structure, and the electric hoist whose motor axis is perpendicular to the reel axis adopts a worm gear transmission. The disadvantages are: large length, large width, clumsy structure, low mechanical efficiency, and difficult processing. The hydraulic system is dual-controlled, and the pressure relief valve and magnetic contact pressure gauge can precisely control the pressure. The electrical control department adopts low voltage control, which increases the safety of the control system.
FAQ:
A: Can you provide custom service?
B: Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.
A: Are there any professional technicians to assist our installation?
B: Yes. We have a professional installation team, who has already been to many countries to assist the installation.If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.
A: Whether or not you can offer the matched spare parts?

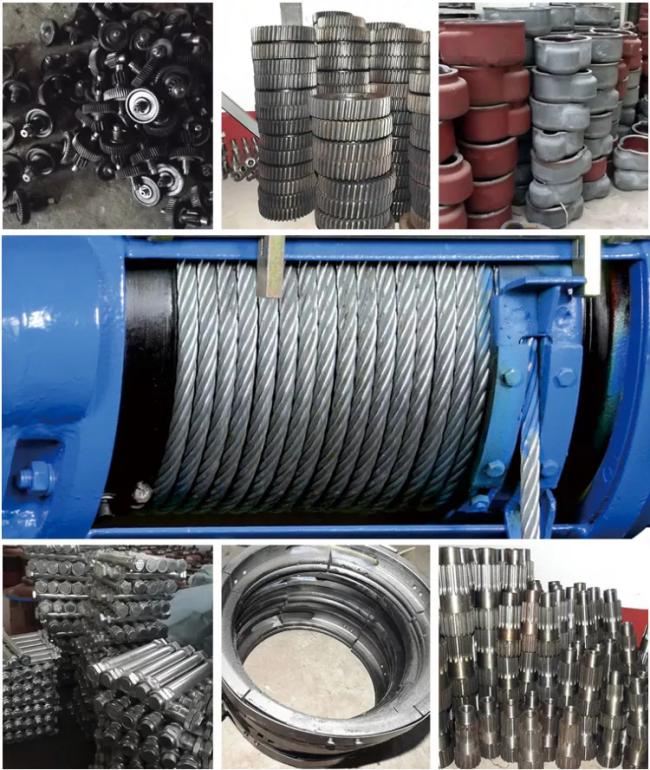

B: Yes, as a crane manufacturer, we can offer all the related spare parts. Such as motor, hoists, drums, wheels,grabs, hooks, rails, travel beams, enclosed bus bar, etc.
A: How can you ensure the quality?
B: Before delivery, every product will be tested strictly and we will send you the quality certification. You are alsowarmly welcomed to our factory to make the inspections.
