Intelligent Electric Overhead Crane 15.5m / Min With High Strength Safety Equipment
Price:
USD 35000-45000
MOQ:
1Set
Delivery Time:
45~65 work days
Brand:
KUANGYUAN
Product Description
PRODUCT DESCRIPTIONS
Intelligent electric overhead crane with craaier-beam with high-strength safety equipment

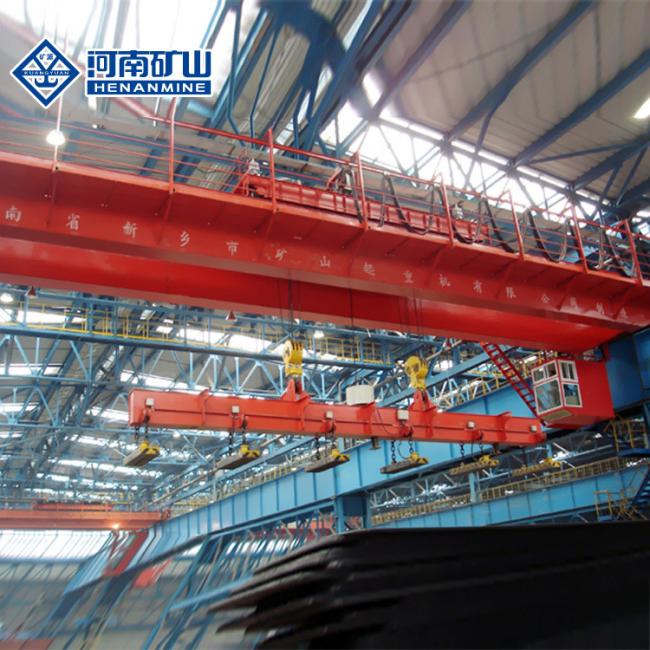

The Intelligent electric overhead crane with craaier-beam generally has two lifting mechanisms, the length of the trolley is relatively long, and the two lifting mechanisms are connected with the connection points on the lower hanging beam. It is often used in workshops, warehouses, etc. to lift and transport materials with long lengths and dimensions.
The hanging beam direction is divided into the vertical main beam direction and the parallel main beam direction. According to the stacking requirements of the user's workshop products, choose different hanging beam directions.
The QL type hanging beam bridge crane with the hanging beam parallel to the main beam, the length of the trolley and the hanging beam direction are parallel to the main beam direction, which is used in the case where the material stacking direction in the workshop is parallel to the crane.
The QL type hanging beam bridge crane with the hanging beam perpendicular to the main beam , The length direction of the trolley and the direction of the hanging beam are perpendicular to the direction of the main beam, which is used for the situation where the material stacking direction in the workshop is perpendicular to the crane.If the distance between the two hoisting points is relatively large, the hoisting mechanism can be located on the outside of the main beam, which can reduce the overall volume of the crane and save costs.
PRODUCT SPECIFICATIONS
Main features:
1).Heavy duty slip ring motor, IP54 or IP55, insulation class F or H, soft starting and smooth running.
1).Heavy duty slip ring motor, IP54 or IP55, insulation class F or H, soft starting and smooth running.
2). Wheels, wire rope drum,gears, couplings are processed by CNC machine center, Top quality control.
3). Siemens or Schneider main electrical parts are used for durable and safe operation.
Safety device:
1). Weight overload protection device.
2). Lifting limit switch and traveling limit switch.
3). Emergency stop system.
4). Zero voltage protection.
5). Phases protection device and so on
6). Top quality long time bearing polyurethane materials buffer.
3). Siemens or Schneider main electrical parts are used for durable and safe operation.
Safety device:
1). Weight overload protection device.
2). Lifting limit switch and traveling limit switch.
3). Emergency stop system.
4). Zero voltage protection.
5). Phases protection device and so on
6). Top quality long time bearing polyurethane materials buffer.
PRODUCT PARAMENTERS
Plumbing with the beam
Paralleling with the beam
| Technique paremeters | |||||||
| 起重量lifting weight | t | 5+5 | 7.5+7.5 | 10+10 | 16+16 | ||
| 跨度span | m | 10.5~31.5 | |||||
| 最大起升高度Max.lifting height | m | 16 | |||||
| 速度Speed | 起升hoisting | A5 | m/min | 12.9 | 10.4 | 9.8 | |
| A6 | 15.66 | 15.3 | 15.2 | 12.4 | |||
| 小车运行travelling of crab | 43.8 | 44.6 | 42.4 | ||||
| 大车运行travelling of trolley | A5 | 84.7; 90.7; 91.9 | 84.7; 87.6 | 74.2; 74.6; 87 | |||
| A6 | 112.5; 115.6; 116.8 | 101.4; 112.5 | 86.8; 101.4; 101.8 | ||||
| 电动机motor | 起升hoisting | A5 | kw | YZR200L-6/26 | YZR225M-6/34 | YZR250M-6/42 | YZR280M-8/63 |
| A6 | YZR255M-6/30 | YZR280S-8/45 | YZR280M-8/55 | YZR315M-8/90 | |||
| 小车运行travelling of crab | YZR132M-6/2.5 | YZR132M-6/4 | YZR132M-6/4 | YZR160M-6/6.3 | |||
| 大车运行travelling of trolley | A5 | YZR132M-6/4*2 YZR160M-6/6.3*2 |
YZR160M-6/2*8.5 YZR160M-6/6.3*2 |
YZR160M-6/2*8.5 YZR160M-6/6.3*2 |
YZR160M-6/2*8.5 YZR160L-6/13*2 |
||
| A6 | YZR160M-6/2*7.5 YZR160L-6/5.5*2 |
YZR160L-6/11*2 YZR160M-6/7.5*2 |
YZR160L-6/11*2 YZR160M-6/7.5*2 |
YZR160L-6/11*2 YZR180L-8/11*2 |
|||
| 电源power source | 380V 50Hz 3-Ph AC | ||||||
FAQ&CONTACT US
1Q: How can you ensure the quality?
A: Before delivery, every product with quality certification will be tested strictly by QC teams. You are also warmly welcomed to our factory to make the inspections. Meanwhile, also support live factory view & crane inspection.
2Q: What's your delivery period?
A: Within 10/25/40 days after your prepayment received. Exact period should be based on detailed requirements and actual period.
3Q: What's your warranty period?
A: 18 months for cranes accepted.
4Q: Do you have engineer oversea installation service?
A: Yes, we could provide the crane supervision, installation, commissioning & training.
5Q: What kinds of products do you have?
A: All kinds of industrial crane (especially non-standard); Overhead Crane; Gantry Crane, Jib Crane, Wire Rope Hoist; Electric Winch, etc.
6Q: Could we buy spare parts in local once they are out of work?
A: Our main electrical parts brand is SIEMENS or Schneider or S E W brand; it's very easy to buy all the world. But if there is any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.
7Q: Do you provide lift tools or crane parts?
A: Yes, we can provide any kinds of related parts such as hoists, motor, wheels, hang beam, travel beams, enclosed bus bar, lift clamp, grab, magnet , pulley blocks, C hook, wire rope, drum, etc.
