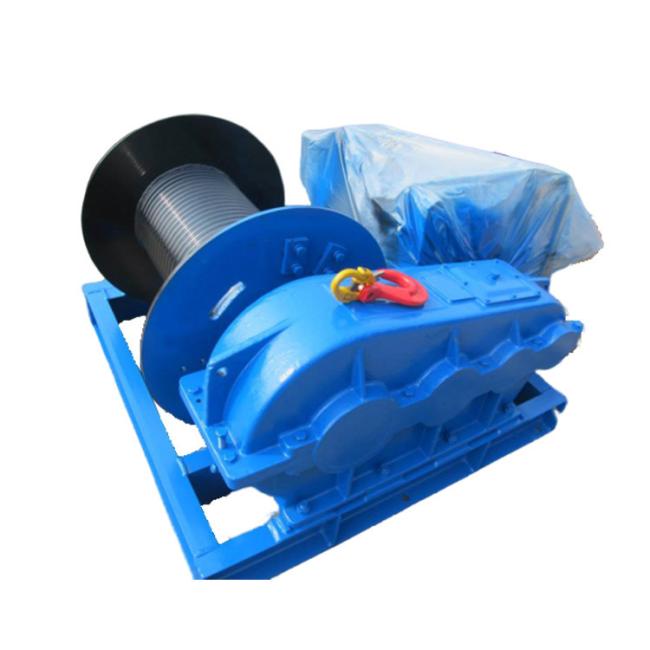

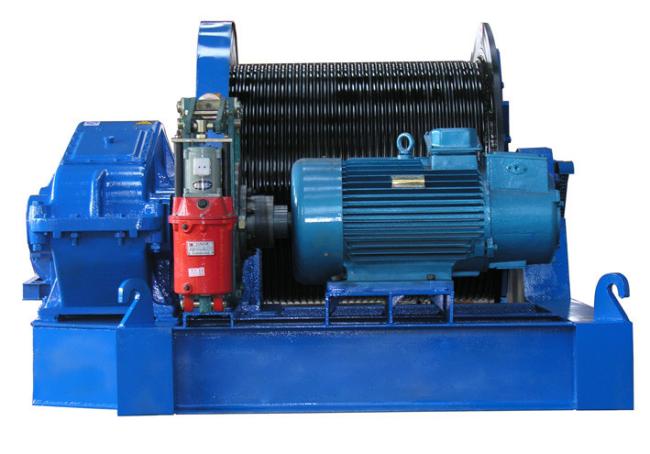

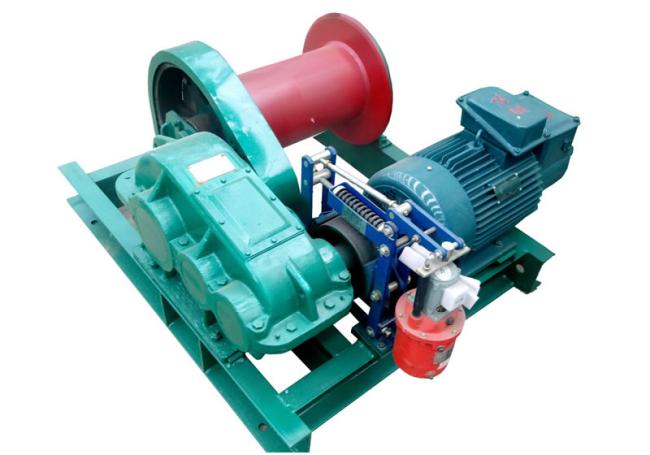

JK Electric Pulling Electric Wire Rope Winch Machine 2500lbs 15m / Min
Electric Wire Rope Winch Machine 2500lbs JK Electric Pulling Winch
High speed Electric Winch is widely used on bridge /gantry carne, it is mainly used in marine to help lifting ship or fishing lifting, the large and middel sized concrete, steel structure, mechanical equipment installation and dismantling. The structural characteristics of steel wire rope is an orderly, lifting safe and reliable. Suitable for all kinds of bridge, port, wharf, road and bridge engineering.
Features of electric winch:
1.Top quality with competitive price
2.Widely used in factory, mining, shipyard or double beam cranes
3.Compact structure and reasonable design
4.Easy to install, operate and maintenance
5.Low noise and good working condition
| Technical Parameter of High speed Electric Winch | ||||||||
| Model | Rated load(KN) | Rated speed (m/min) | Rope capacity (m) | Rope diameter (mm) | Motor model | Motor power (KW) | Overall dimensions (mm) | Total weight (kg) |
| JK1 | 10 | 22 | 100 | 9.3 | Y112M-4 | 4 | 620x701x417 | 300 |
| JK1.6 | 16 | 24 | 120 | 12.5 | Y132S-4 | 5.5 | 945×996×570 | 500 |
| JK2 | 20 | 24 | 120 | 13 | Y132M-4 | 7.5 | 945x996x570 | 550 |
| JK3.2 | 32 | 25 | 200 | 15.5 | YZR180L-6 | 15 | 1325x1335x840 | 1200 |
| JK5 | 50 | 30 | 200 | 21.5 | YZR225M-6 | 30 | 1900x1620x985 | 2400 |
| JK8 | 80 | 25 | 250 | 26 | YZR280S-8 | 45 | 1533x1985x1045 | 3500 |
RFQ:
Q1: What's the information should I provide when inquiry?
A3: We have trained service technicians who will be able to get your material handling equipment up and running and have been providing our customers and effective service solution.
Q4: What area do you service? How can we install the crane?
A4: We mainly service in China and our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
Q6: Can you provide the various lifting tools?
