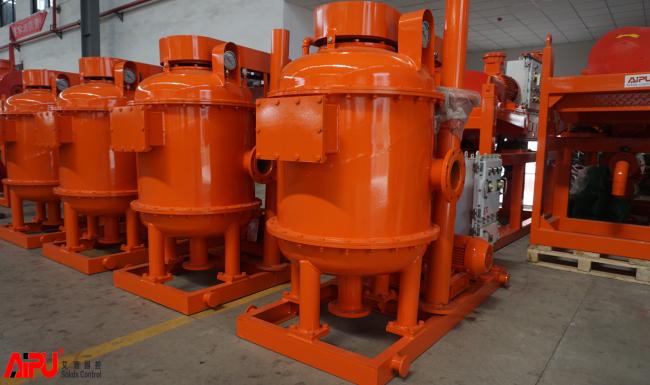

APZCQ Driling fluids,drilling cuttings vacuum degasser for Drilling Fluids Solids Control

Vacuum Degasser is also called mud/Gas separator. Mud/gas separators (Degasser) is the first units of solids control equipment arranged to treat drilling mud. As such, they process all of the drilling mud from the flow line before the mud reaches the primary shale shakers. The units have no moving parts and rely on the density difference between the gas and the mud for removal. The process is simple, yet very effective for well drilling fluids processing system.

Vaccum Degasser is used to remove the small entrained gas bubbles left in the mud by the mud/gas separator. These units are positioned downstream from mud/gas separators, gumbo removal equipments (if utilized), shale shakers and mud conditioners (if utilized), while hydrocyclone desander and Decanting centrifuges follow in the arrangement.

Why we call degasser the 2nd purification equipment? It's set behind shale shaker but prior to desander or mud cleaner. The vacuum degasser holding different sizes and different treating capacity. The model unumber APZCQ 270 means the degasser can handle fluids mixed with gas upto 270m³/h. Users can select the proper degasser according to pratical demand

The material of vacuum degasser can be common carbon steel or the H₂S resistant steel. At some of drilling sites, there is no ignitor connected directly to gas vent port, but at some drilling sites, such as gas field or shale gas drilling the vacuum degasser is connected with ignition device via a line to make sure the gas can be burned safely.

Vacuum degassers are not operatred continuously. As the entrained gas quantity is not as large as the gas flow out of the choke manifold or the elevating pipe. We can turn it on when entrained gas raise.

Below technical specification on APZCQ Vcuum degasser for your reference.

For any interes or demand on drilling mud vacuum degasser, please feel free to contact AIPU. You will get professional proposal very soon.
