Durable High Quality Screw Conveyor Is Drilling Waste Equipment Can Be Used In Waste Management System

Durable high quality screw cenveyor in Aipu

Aipu solids control provide durable high quality screw conveyor in waste management system

Screw conveyor is designed to transfer drilling cuttings and feed to vertical cuttings dryer or dryer for further treatment. It is also called auger feeder. Usually, the screw diameter has 4 options: 10 inch, 12inch, 16 inch, 20 inch; screw length is customer built too, but commonly there are 12~48feet. Furthermore, depends on clients’demand the screw conveyor will be made of different materials. Including carbon steel, stainless steel graded differently.

As per different material to transfer the screw conveyor can be designed as flexible screw conveyor, vertical screw conveyor, circled conveyor, roller conveyor. The auger feeder consisting scroll impeller, shaft (if there is necessary) cover, motor, and gear box.

Screw conveyor is also referred to Auger feeder. They can be used as the transfer unit of drilling cuttings to cuttings dryer, also the unit to transfer disposal to cuttings boxes or collection container. The length can be custom built according to actual working condition

Actually the auger feeder is not only used in oilfield waste management but also other applications. Such as chemical industry, construction industry, food industry, mining industry, and so on. The angle of conveyor is customizable for different work site. For cuttings transfer, we usually use U type conveyor and round tube type conveyor.

Technical specification of APLS screw conveyor

What is the structure of the screw conveyor?

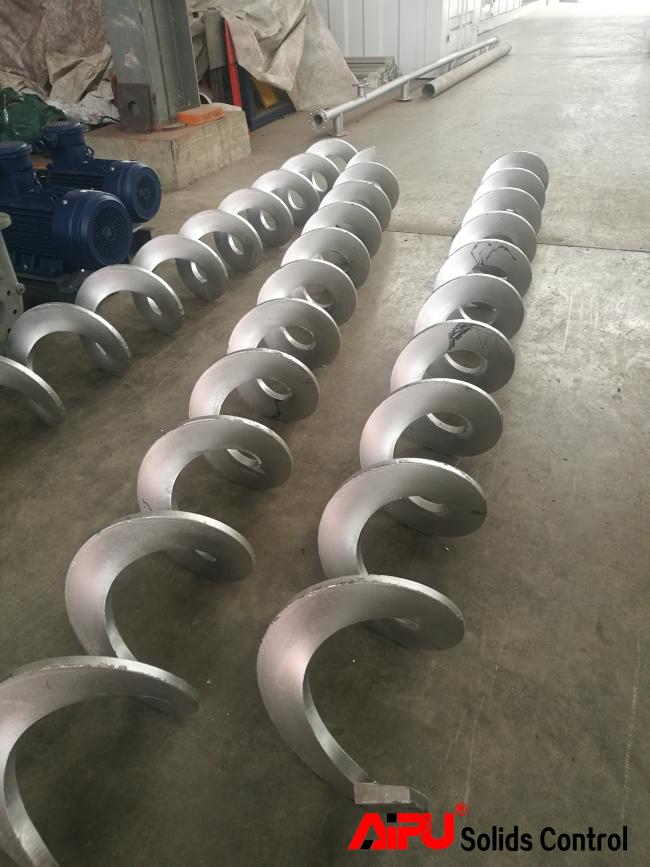

It including but not limited to following items. The motor, the gear box, the coupling, the channel, the impeller or blade, the grade or sheet cover, the support leg or frame. If necessary, there is control panel.

Some clients need the screw conveyor to perform at variable frequency. The the VFD can be achieved by control panel, also can be achieved by a mechnical way. Based on different clients' preference, there are horizontal direction gear box and the vertical direction gear box. The gear box can be the helical bevel or the helical worm and wheel type.

Why use screw conveyor?

As a professional manufacturer of solids control, we know better about the job site. We know how to design and configure an auger feeder is more convenient for users' operation. And from the raw material of steel to the different standard components (motors, gearbox) we select the high quality and excellent performance product

AIPU provide the optimal proposal for all of clients. Most of our orders place repeat orders since the reliable quality and stable performance. If you don't select us you may face risks of higher cost on operation or maintenance.

APLS series screw conveyor features

Compact design with small foot print.
Tightseal.
Stable and reliable performance.
Flexible design on input and output port.
Easy to operate and maintain.
Gear box and motor are top brand with high quality.
Custom built available per actual requirement.

Please feel free to contact AIPU solids. You will get a professional proposal very soon.
