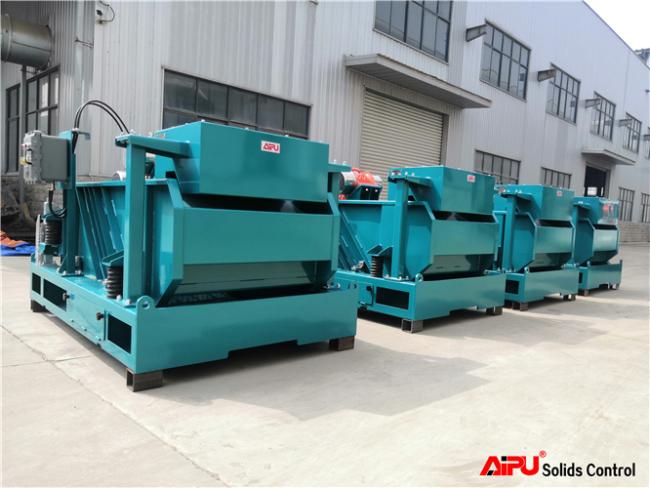

Stainless Steel 316L and Steel Framed Screen Shale Shaker

Shale shaker is the primary and most important device on the rig for removing drilled solids from the mud. AIPU shake is popularly used for various kinds of the drilling industry. This shaker is specially designed for one environmental company, it was used to separate particles around 2-3mm.

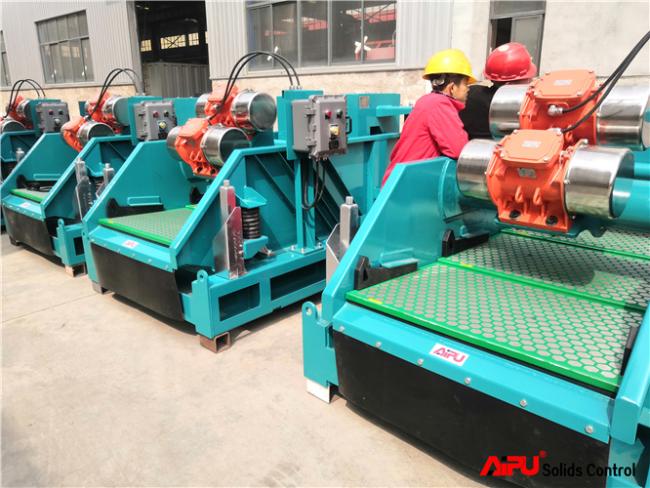

We designed steel framed screens panel to replace common composite frame which more suitable and long service life. the installation way is wedge block, fast change on shaker screen. shaker screen totally 4 pieces and screening area is about 2.73㎡.

For the shaker motors, we use the top brand Martin powerful vibration force. High quality motors will help much on stable performance and good result.

The deck angle is adjusted from -1° to +5°. This will force the operator to run the shaker deck not over +5°. And protect shaker screen from over high strength of fast mud flow.

Meanwhile, our painting is different from other suppliers. Heavy anticorrosive painting on shaker surface, 3 layer painting. Sand-blasting per SA2.5 prior to painting.

Shale shaker technical data sheet

Features of drilling shale shaker

1. Heat treatment for shaker deck
2. Drilling shale shaker is installed with AIPU self-produced shaker screen.
3. Vibration motor: IEC Ex, ATEX, and UL certified according to customer requirements.
4. Material: Q345B from BAOSTEEL for the body, and compound rubber spring used to reduce vibration.
5. Wedge type screen for quick and convenient replace.
6. Flexible feeding type including weir feed, top feed, and hopper feed for different applications.

The specialty of AIPU shale shaker

AIPU solids control always provide special customizable service to our customers. For a vibration motor, except for explosion-proof motor, non-explosion proof can be selected per different working conditions. For electrical parts, certificate like IEC EX, UL, ATEX, it's the common configuration of AIPU equipment. Also, we can provide special certificates like EAC or other certificates per clients' requirements.

AIPU's professionalism

AIPU solids control is a turnkey solids and liquid separation solution provider for over 20 years and we have a professional technical team. And I firmly believe that cooperating with us, you'll find that we are different from other suppliers and you don't need to spend energy time to seek other suppliers.

As a professional manufacturer of oilfield solids control equipment, AIPU products are appreciated by clients because of high quality at a reasonable cost. Trust AIPU solids control will be your strong assistance. Our solutions for you and clients will be the optimal one and lead more reasonable profits. AIPU products have served KDC, Burgan, SINOPEC, CNPC, Honghua, Petronas, Pertamina, and so on drilling company and rig manufacturers.

Please feel free to contact AIPU Solids control for more details. Trust you'll get interesting issues.
