High-speed battery pole piece metal die cutting machine
1equipment profile:
This equipment completes the lamination type lithium ion battery pole metal mold slicing process, the continuous coil material is cut into a single pole.Artificial roll pole rolling inflatable shaft installed to the device, the device automatically put volume, rectifying mechanism of rolling process to carry on the automatic adjustment, and control the tension of pole piece through the tension control system, servo mechanism will be transported to the sheet metal die cutting station, hardware die will be extremely ear and arc Angle cutting forming, cutting location with a cutting knife for sheet cutting into single pole piece, then to dust removal of single pole piece, through CCD detection plate surface quality and dimension, bad product has been dropped into the waste box, non-conforming material was sent to the material collecting box.

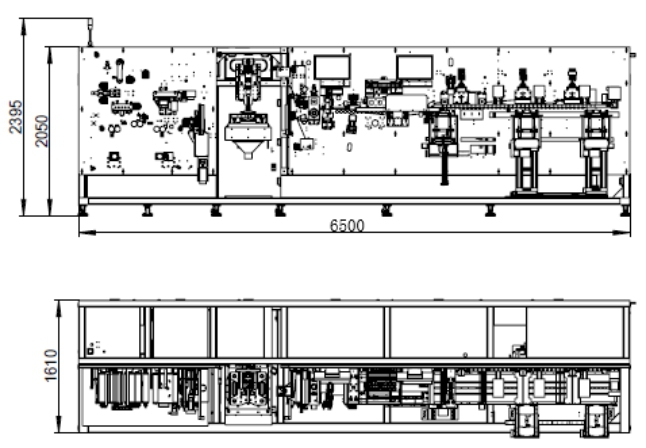

1.1external dimensions of the equipment:Overall size (mm) : length * width * height 7500*1780*2395 (including protective cover and vacuum cleaner)Equipment weight: 6500KG
2.Scope of equipment adaptation and technical parameters 2.1 the specification of adaptive materials is as follows:
|
Item
|
|
specifications
|
ZCCE01B-00
|
|
Material specifications
|
Pole piece
|
Length(mm)
|
coil
|
|
Width/tolerance(mm)
|
100～300/0.2
|
||
|
Thickness/tolerance(mm)
|
0.05～0.25/0.005
|
||
|
The largest diameter(mm)
|
φ650
|
||
|
The inner diameter(mm)
|
φ152.4mm(6＂)
|
||
|
Maximum weight of coil
|
250Kg
|
2.2 material requirements: 1. Incoming material must be continuous coating 2．Rewinding error of pole sheet: ±5mm; 3.Snaking bending error of pole sheet: ±0.5mm/1000mm;
2.3 technical parameters and functions of the equipment: 2.3.1 equipment technical parameters:
|
Specification
Item |
Technical parameters
|
|
Efficiency
|
＞180ppm
|
|
Pole width W range/precision
|
80-250mm/±0.2mm
|
|
Pole height H range/accuracy
|
100-280mm/±0.2mm
|
|
Polar ear shoulder width Dt range/accuracy
|
5-50mm/±0.25mm
|
|
Polar ear width Wt range/accuracy
|
10-100mm/±0.2mm
|
|
Polar ear height Ht range/accuracy
|
10-30mm/±0.5mm(According to the size of the incoming material)
|
|
Total life of hardware mould
|
＞100000 hours
|
|
Grain rate (failure caused by equipment only)
|
≥98%
|
|
Qualified rate (except defective incoming materials)
|
≥99.5%
|
3,Equipment operating environment 3. Power supply: three-phase 380V;Voltage fluctuation is less than ±10%;The maximum power of the equipment is 16kw; 2. Gas requirements: air source pressure (compressed air) > 6 kg/cm2, maximum consumption 50L/min, drying; 3. Total weight of the equipment: 6500kg; 4. Plant floor bearing: > 800kg/㎡; 5. Ambient temperature: 20 ~ 35℃; 6. Relative humidity: 5 ~ 55% HR; 7. Operating environment requirements: the environmental cleanliness shall be no less than 100,000, and there shall be no corrosive gas, liquid or explosive gas on the site;
