3kw Li Ion Battery Manufacturing Equipment Battery Pole Piece Laser Slicer
Price:
Negotiation, email communication
MOQ:
1
Delivery Time:
90 Working day
Brand:
ZeCheng
Product Description
Li Ion Battery Manufacturing Equipment Battery pole Piece laser slicer
1. equipment profile:This equipment

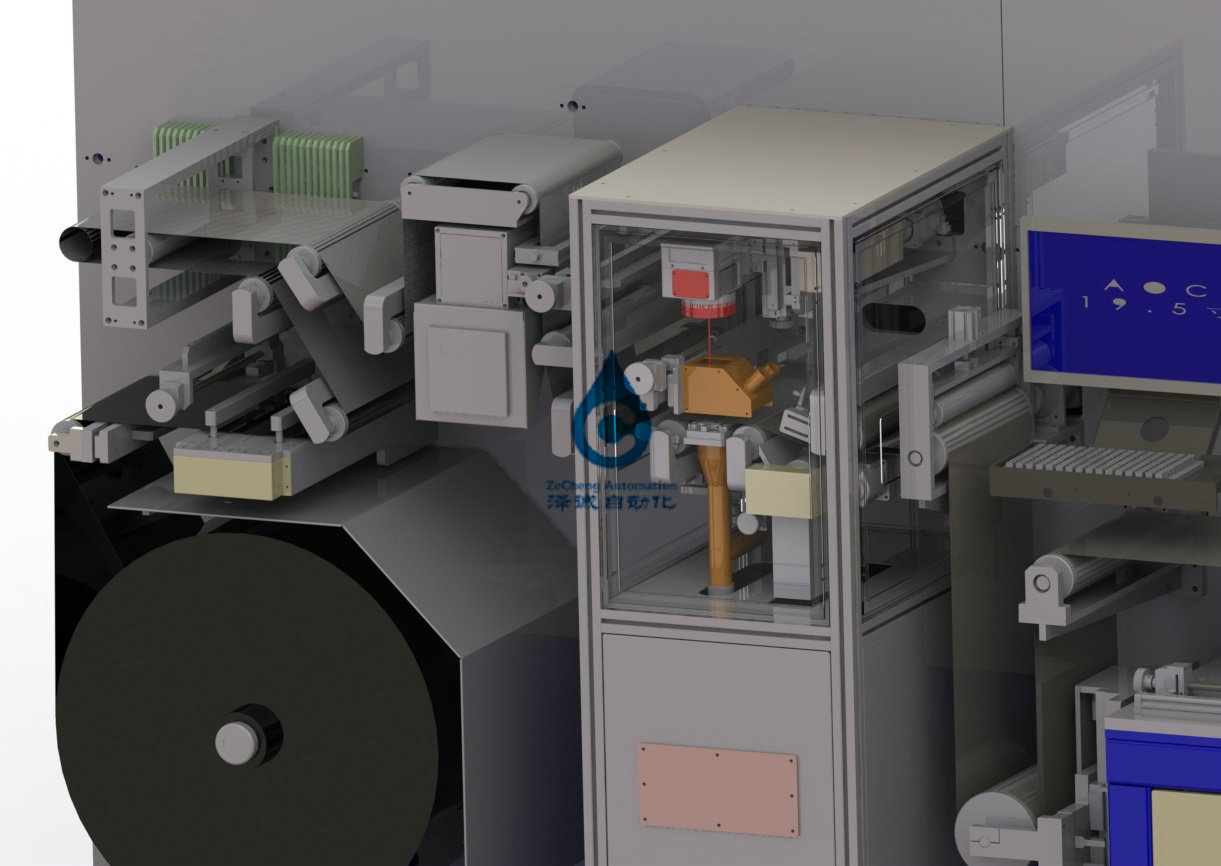

completes the laser chip slicing process of laminated lithium ion batteries and cuts the continuous coil material into single chip.Artificial roll pole rolling inflatable shaft installed to the device, the device automatically put volume, rectifying mechanism of rolling process to carry on the automatic adjustment, and control the tension of pole piece through the tension control system, servo mechanism will be transported to the laser cutting plate location, the laser will be extremely ear cutting forming, cutting location with a cutting knife for sheet was cutting into single pole piece, then to dust removal of single pole piece, through CCD detection plate surface quality and dimension, bad product has been dropped into the waste box, non-conforming material was sent to the material collecting box.

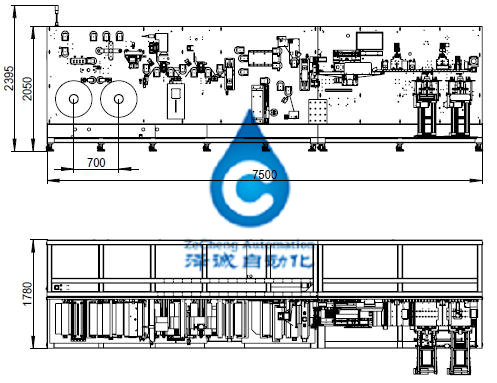

1.4 external dimensions of the equipment: Overall size (mm) : length * width * height 7500*1780*2395 (including protective cover and vacuum cleaner)Equipment weight: 6500KG
2, Scope of equipment adaptation and technical parameters 2.1 the specification of adaptive materials is as follows:
3,Equipment operating environment 1. Power supply: three-phase 380V;Voltage fluctuation is less than ±10%;The maximum power of the equipment is 16kw; 2. Gas requirements: air source pressure (compressed air) > 6 kg/cm2, maximum consumption 50L/min, drying; 3. Total weight of the equipment: 6500kg; 4. Plant floor bearing: > 800kg/㎡; 5. Ambient temperature: 20 ~ 35℃; 6. Relative humidity: 5 ~ 55% HR; 7. Operating environment requirements: the environmental cleanliness shall be no less than 100,000, and there shall be no corrosive gas, liquid or explosive gas on the site;
