10M/Min Battery Production Machine Battery Pole Piece Winding Unwinding Machine
Price:
Negotiation, email communication
MOQ:
1
Delivery Time:
90 Working day
Brand:
ZeCheng
Product Description
Product Description
1. Device function Mainly used for rewinding and unwinding of battery pole pieces. 2. Process requirements 2.1 Basic technical parameters of the equipment:
2.2,Specification range

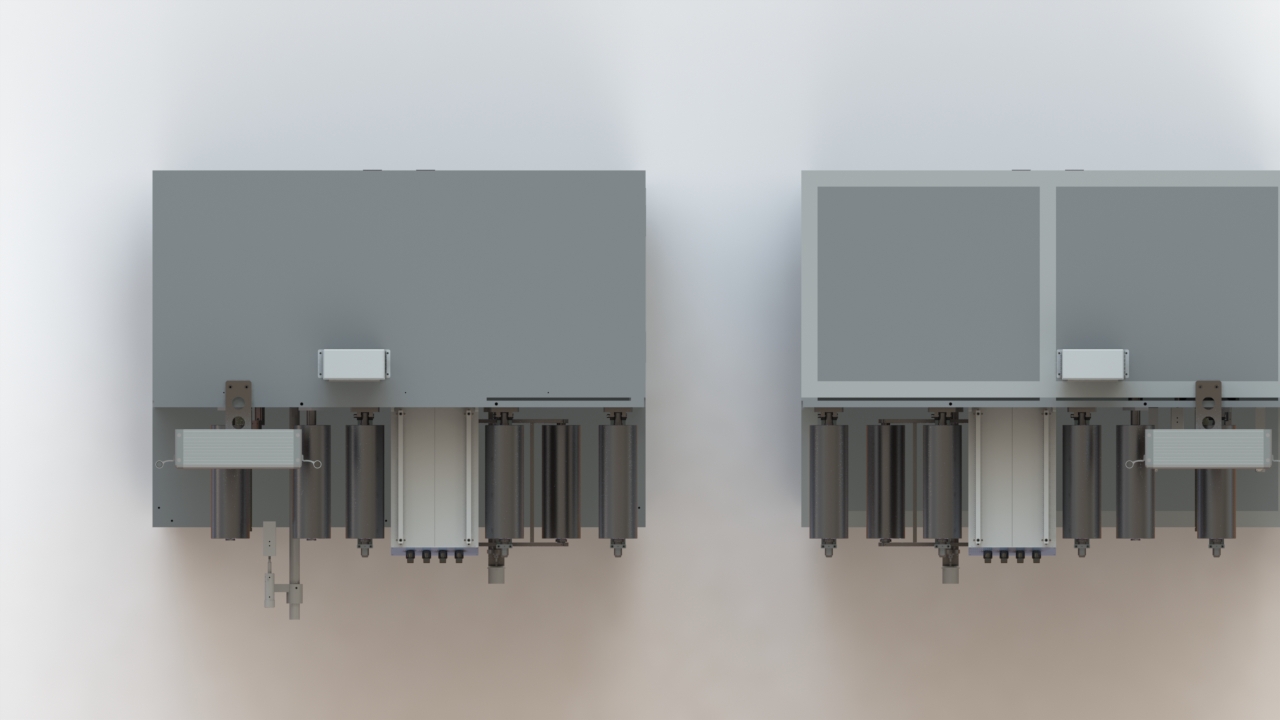

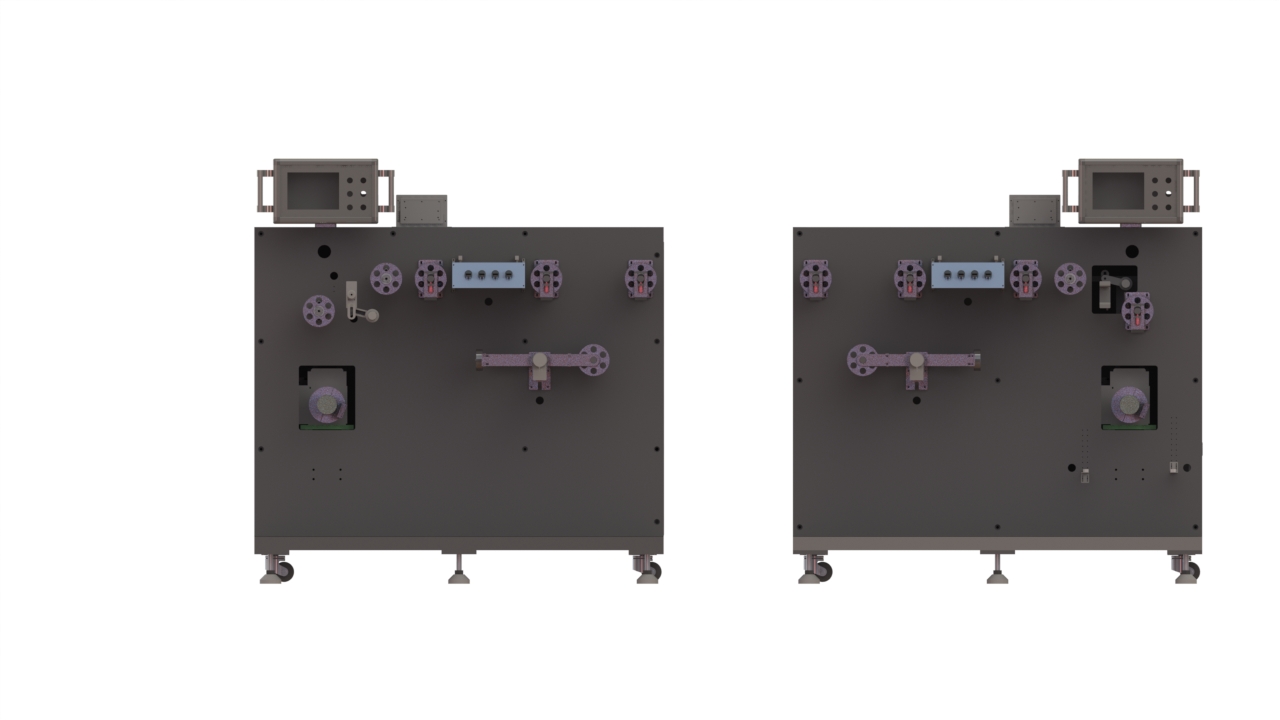

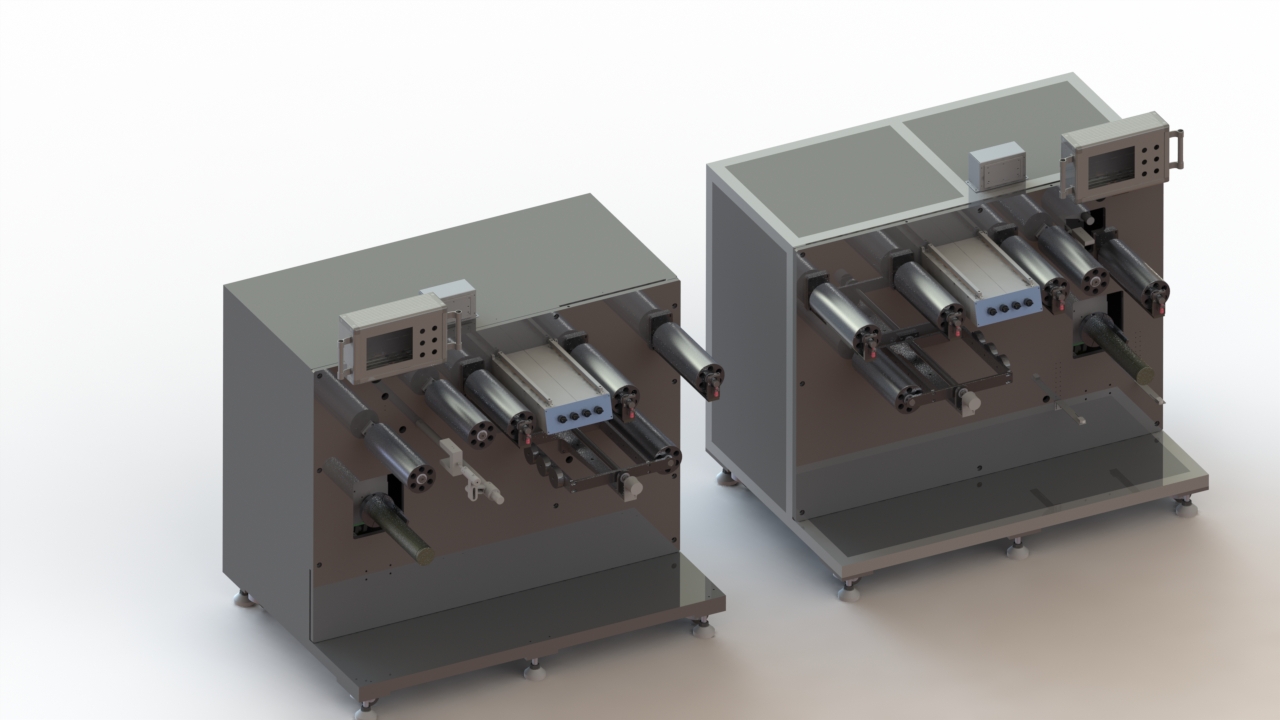

2.3 The equipment can realize automatic deviation correction of rewinding and unwinding coils. 3. Equipment introduction Schematic diagram of the equipment (the picture shows the schematic diagram of the unwinder, and the rewinding is in the opposite direction, the others are the same)
4, the main components of the equipment
5. Environmental requirements 5.1 Compressed air: air source pressure (compressed air) > 6 kg/cm2, maximum consumption 50L/min, dry; 5.2 Ambient temperature: 20～35℃ 5.3 Relative humidity: 5～55%HR 5.4 Power supply: AC220V, single-phase; voltage fluctuation less than ±10%; power supply: 6KVA 5.5 Vacuum: Vacuum degree: -100kp～-70kp, negative pressure is stable, which can meet the stable production of equipment. 5.6 The ground bearing capacity of the workshop: ＞800kg/㎡;
Specification
