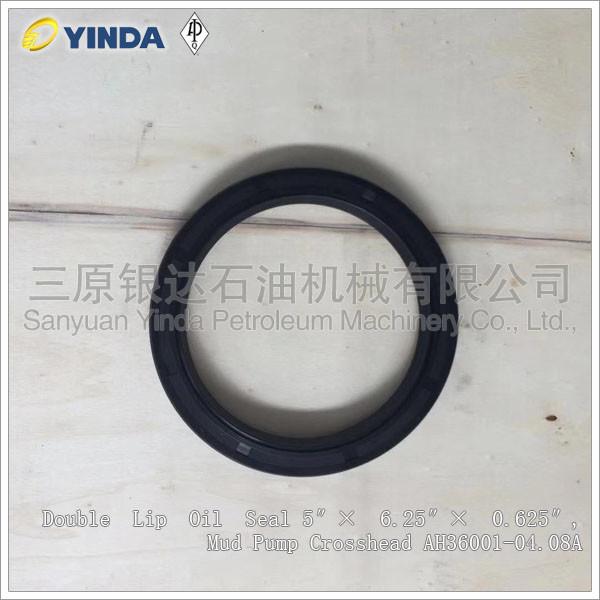

Double Lip Oil Seal Mud Pump Crosshead 5″× 6.25″× 0.625″ AH36001-04.08A
Double Lip Oil Seal 5″× 6.25″× 0.625″, Mud Pump Crosshead AH36001-04.08A was used in Mud Pump corsshead.
Mud pump oil seal is the main seal in the crosshead system of the power end of the mud pump. The material is nylon, which belongs to the vulnerable parts of the mud pump.The oil seal ring is installed in the packing box and ACTS as a seal.
O-rings are one of the most common seals used in machine design because they are inexpensive, easy to make, reliable and have simple mounting requirements. They have been tested to seal up to 5000 psi (35 megapascals) of pressure. The maximum recommended pressure of an O-ring seal depends on the seal hardness and gland clearance.
An O-ring, also known as a packing or a toric joint, is a mechanical gasket in the shape of a torus; it is a loop of elastomer with a round cross-section, designed to be seated in a groove and compressed during assembly between two or more parts, creating a seal at the interface.
The O-ring may be used in static applications or in dynamic applications where there is relative motion between the parts and the O-ring. Dynamic examples include rotating pump shafts and hydraulic cylinder pistons. Static applications of O-rings may include fluid or gas sealing applications in which: (1) the O-ring is compressed resulting in zero clearance, (2) the O-ring material is vulcanized solid such that it is impermeable to the fluid or gas, and (3) the O-ring material is resistant to degradation by the fluid or gas.
| Usage: | Drill Rig | Application: | Conveying Mud And Flushing Fluids |
|---|---|---|---|
| Structure: | Piston Pump | Standard Or Nonstandard: | Standard |
| Type: | Mud Pump | Product Name: | Mud Pump |
| Oem: | Applicable | Condition: | New |
Mud Pump Parts Model We Can Do
|
BOMCO |
F-500 |
F-800 |
F-1000 |
F-1300 |
F-1600 |
F-1600HL |
F-1600L |
F-2200HL |
|
Hong Hua |
HHF-500 |
HHF-800 |
HHF-1300 |
HHF-1600 |
3NB-1600F |
5NB-1600 |
5NB-2400 |
|
| HRSB | RSF-1300 | RSF-1600 |
|
|||||
|
RG |
RGF-800 | RGF-1000 | RGF-1300 | RGF-1600 |
|
|||
|
Lanzhou |
3NB1000C |
3NB1300C |
3NB1600F |
3NB1600L |
|
|
|
|
|
EMSCO |
F-500 |
F-800 |
F-1000 |
F-1300 |
F-1600 |
FD-1000 |
FC-2200 |
FB-1300 |
|
Gardner Denver |
PAH |
P7 |
P8/9 |
P10/11 |
|
|
|
|
|
National |
7-P-50 |
8-P-80 |
9-P-100 |
10-P-130 |
12-P-160 |
14-P-200 |
14-P-220 |
|
|
Oilwell |
A-850-PT |
A-1100-PT |
A-1400-PT |
A-1700-PT |
|
|
|
|
|
TSC |
WF-500 |
WF-800 |
WF-1000 |
WF-1300 |
WF-1600 |
WF-2000 |
WF-2200 |
|
|
IDECO |
T-500 |
T-800 |
T-1000 |
T-1300 |
T-1600 |
|
|
|
|
RUSSIA |
UNBT-1180L |
UNBT-950A |
UNB-600 |
|
|
|
|
FAQ
1) How can I place order?
A: You can contact us by email about your order details, or place order on line.
2) How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T is the most usual ways we are using.
3) What's the order procedure?
A: First we discuss order details, production details. Then we issue you an PI for your confirmation. You will be requested to do pr-e paid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 15-25 days if we don't have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
4) How do you take care when your clients received defective products?
A: replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.
5) How do you check all the goods in the production line?
A: We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure.
