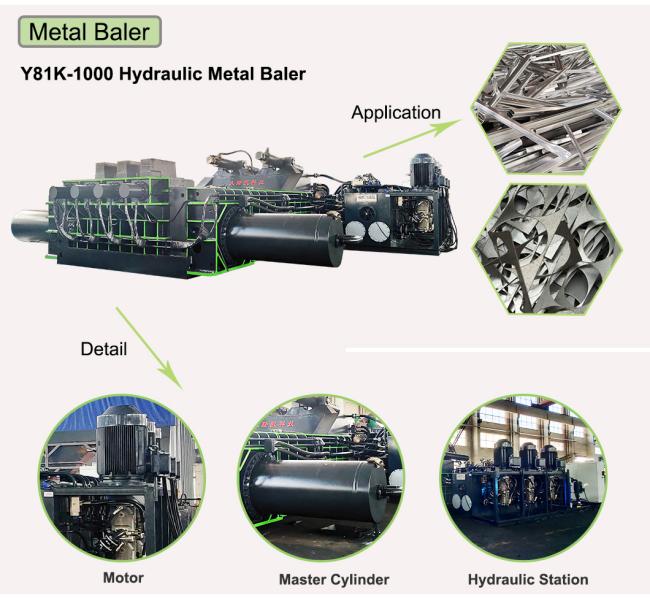

Hydraulic Scrap Metal Baling Recycling Machine Y81K-1000 243 KW
Hydraulic Scrap Metal Baling Recycling Machine Balers Y81K-1000
Product Description
Our hydraulic metal baler adopts hydraulic transmission, compact structure, convenient transfer, simple operation, easy maintenance, reliable sealing and no foot screws during installation. This Y81 series scrap metal baler is mainly used in the recycling and processing industry and the metal smelting industry. This metal baler can extrude various metal scraps, steel shavings, scrap steel, scrap iron, scrap copper, scrap aluminum, aluminum shavings, disassembled car shells, waste oil drums and other metal raw materials into a cuboid, a cylinder, etc. Shape of qualified charge. It is easy to store, transport and return to the furnace for reuse.
Technical Parameters
| 1 | Main oil cylinder | Model | YG700/500 | Qty. | 2pc |
| Normal force | 10000KN | Stroke | 1220mm | ||
| 2 | Side pressure cylinder | Model | YG450/320 | Qty. | 2pc |
| Normal force | 4000kN*2 | Stroke | 2870mm | ||
| 3 | Door cover cylinder | Model | YG280/200 | Qty. | 2pc |
| Normal force | 1600kN | Stroke | 2150mm | ||
| 4 | Lock cylinder | Model | YG220/120 | Qty. | 4pc |
| Normal force | 900kN*4 | Stroke | 100mm | ||
| 5 | Hydraulic system working pressure | ≤25MPa | |||
| 6 | Power Specifications | 380V/3P 50Hz | |||
| 7 | Size of feed box | 3500*3000*1300 mm | |||
| 8 | Size of bale | 700*700 mm | |||
| 9 | Operation method | Hand-in-one, remote control operation | |||
| Floor area | 12000x11000mm | ||||
The parameters in the above table are for reference only.
Features of the metal baler
1.Hydraulic drive, compact design, great sealing.
2.Customized press box size and bale size.
3.Bale discharging ways include turn-out, side-push out and forward-out.
4.Designed with quick unit that can improve work efficiency substantially.
Application
Y81 series hydraulic metal scrap baler is applicable in steel plants, recycling companies, ferrous &non-ferrous smelting industry to press metal scraps (steel, copper, aluminum, stainless steel, discarded automobiles) into acceptable furnace charges (shapes: cuboid, cylinder or octagon), so as to reduce cost of transportation, to increase speed of furnace charging.
Company Profile
Jiangsu Dalongkai Technology Co., Ltd is the professional manufacturer who is specialized in producing the balers, metal shears, metal scrap briquette machines, loose material baler and other hydraulic machinery. We provide both standard and customized design in large range of different machines. They are widely applied in industries of metal smelting, textile, fiber, paper-making, waste recycle, automobile, metal processing and so on.
Jiangsu Dalongkai Technology Co., Ltd was established in 2003 and we researched and produced the first hydraulic machine exported from us based on customer’s need. This made us begin to sell our products world wide. In order to enlarge our overseas market and improve our products quality, we especially established our trade company ---Jiangsu Dalongkai Technology Co., Ltd. Our trade company not only promotes our machinery, we also export different kinds of products by our professional sales team.
