Max shear force 250ton blade length 800mm Q15-2500 Hydraulic Gantry Plate Shear Machine

Price Negotiable

Price: $28571-$30000 per set

MOQ: 1

Delivery Time: 50-60 days

Brand: Dalongkai

Product Description

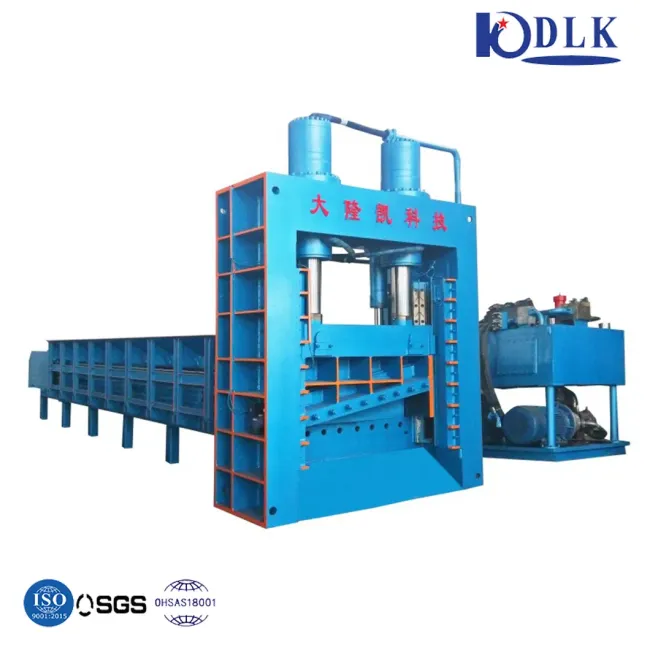

Q15-2500 Gantry Plate Shear Machine

This hydraulic gantry plate shear machine is designed for processing various metal plates, cutting them into materials of different specifications. It effectively replaces flame cutting processes, significantly reducing operational costs while improving efficiency in sheet metal processing applications.

Product Information

Model Number:

Q15-1200~Q15-3150

Certification:

ISO9001,CE

Place of Origin:

Jiangsu P.R. China

Product Name:

Gantry plate shear

Condition:

New

Application:

Scrap metal

Nominal Force:

250Tons

Driven Type:

Hydraulic

Power:

30kW

Voltage:

380V,50HZ, Customized

Color:

Customized

Automatic Grade:

Semi-Automatic

Technical Specifications

Model	Shearing Force (ton)	Blade Length (mm)	Max. Cutting Material (mm)	Shearing Frequency (times/min)	Motor (KW)
Q15A-1200	120	600	18*500	4-7	15
Q15A-1600	160	600	20*500	4-7	18.5
Q15A-2000I	200	600/800	25*500	4-7	22
Q15A-2500I	250	600	30*500	4-7	22
Q15A-2500II	250	800	30*700	4-7	2*15
Q15A-3150	315	800	30*700	4-7	45
Q15A-4000	400	800	35*700	4-7	2*22
Q15A-5000	500	900	40*800	4-7	2*45
Q15B-1600	160	1200	16/12*1000	4-7	18.5
Q15B-2000	200	1200	18/16*1000	4-7	22
Q15B-2500I	250	1200/1600	25/20*1000	4-7	2*18.5
Q15B-3150	315	1200	30/25*1000	4-7	2*18.5
