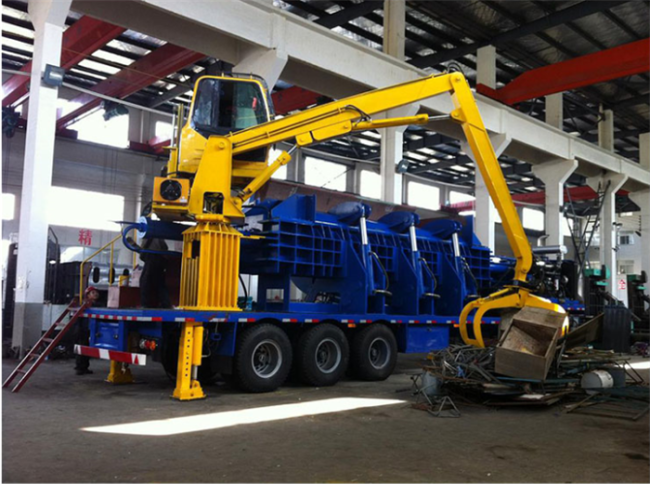

Portable Hydraulic Baling Machine 110KW Scrap Aluminum Alloy Material
110KW Portable Baler With Hydraulic Driven , Working Pressure 31.5Mpa
Applications:
Mobile working, diesel engine driven, no power needed, which are used for scrap;
Scrap cars; other metal structures and non-ferrous metals(stainless steel, aluminum alloy, steel,
etc).of compression baling.
Feature:
1. The work bin of machine can contain big volume and a big area of scrap materials at one time.It is especially convenient for large scraps to bale in a short time.
2. Mechanical and electrical integration of liquid control, easy to learn and operation.
3. Hydraulic drive, operation stable and high efficiency.
4. PLC control, high reliability, simple maintenance.
5. Removable style, one equipment can be used more than one yard to reduce the cost of equipment.
Technical Parameters
|
No |
Technical specification |
Remark |
||||||
|
1 |
Main cylinder |
Model |
YG250/160--2210 |
2set |
||||
|
Nominal pressure |
2500KN*2 |
Trip |
2210MM |
|
||||
|
2 |
First class cylinder |
Model |
YG200/140-598 |
3set |
||||
|
Nominal pressure |
800KN |
Trip |
598MM |
|
||||
|
3 |
Second class cylinder |
Model |
YG200/140-598 |
3set |
||||
|
Nominal pressure |
800KN |
Trip |
598MM |
|
||||
|
4 |
Press box size(L×W×H)(MM) |
5000*2430*1600 |
|
|||||
|
6 |
Bale size(L×W×H)(MM) |
(1000)*800*700 |
|
|||||
|
7 |
Working pressure(Mpa) |
21.5 (turn out system6Mpa) |
|
|||||
|
8 |
Bale density(Kg/m3) |
≥2000(Fe) |
|
|||||
|
9 |
Discharge bale out |
Grab machinery |
|
|||||
|
10 |
Power |
Diesel |
260HP |
|||||
|
11 |
Oil pump
|
Model |
Variable double-piston constant power |
Pressure |
31.5Mpa |
|
||
|
Oil flow |
125ml/*2 |
Quantity |
1set |
|
||||
|
Manufacture |
|
|||||||
|
12 |
Control system |
PLC control |
||||||
|
13 |
360 degree rotation grab
|
|||||||
