High Performance BBK For Mercedes Benz CLA Class W117 18 Inch Car Rim Front 4 Piston Brake Kit Auto Brake System
High Performance BBK For Mercedes-Benz CLA Class W117 18 Inch Car Rim Front 4 piston brake kit auto brake system
Mercedes-Benz CLA W117 2013-2018 year
It can be installed our front and rear brake kit
Minimum Upgrade Rear Rotor Size is 330 mm,Double Caliper(Keep EPB function) Minimum Rear Rotor Size is 355 mm,Special Electric Caliper Minimum Rear rotor size is 380 MM
Normal or Electric handbrake
The original wheels do not need to add Spacers.
Orginal Brake Rotor Information

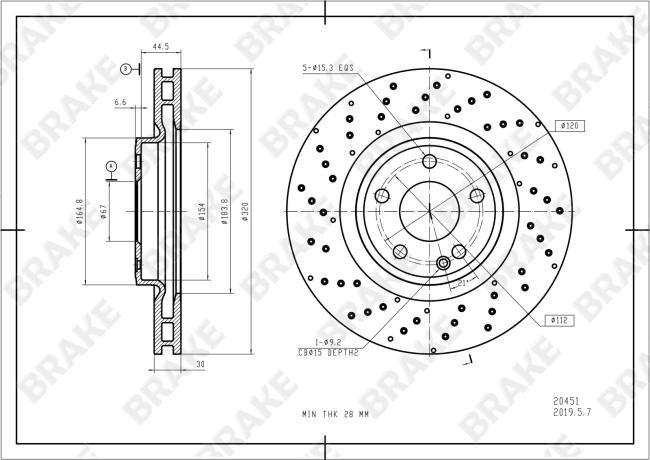

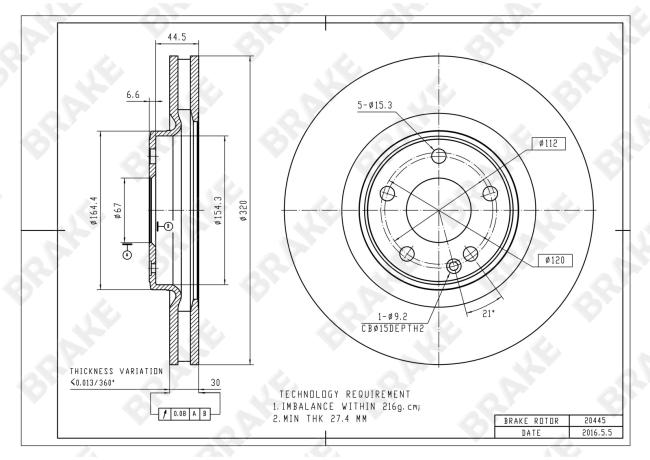

Front:
| Front Original Rotor Information | |
| Brake Rotor model | 20445 or 20451 |
| Rotor Diameter | 320 mm |
| Rotor Hat Diameter | 112 mm |
| Central Hole Diameter | 67 mm |
| Disc Thickness | 30 mm |
| Minimum Disc Thickness | 28 mm |
| Total Height | 51 mm |
| Number of Positioning Holes | 5 |
| Disc type | Ventilation |

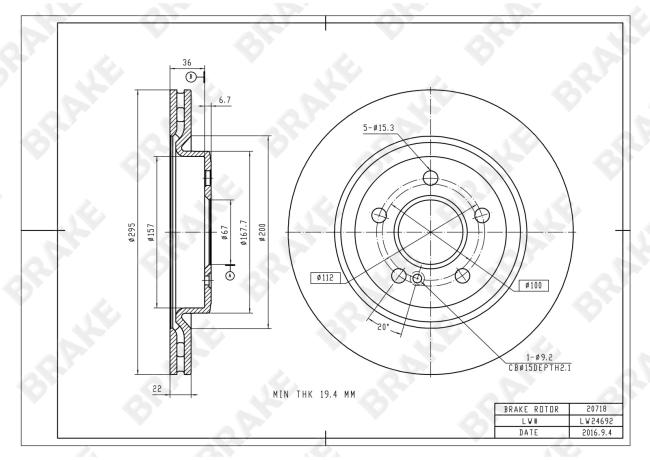

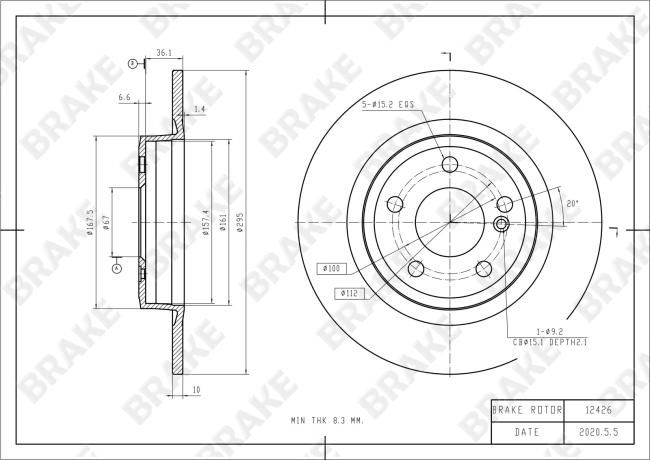

| Rear Original Rotor Information | |
| Brake Rotor model | 12426(20718) |
| Rotor Diameter | 295 mm |
| Rotor Hat Diameter | 112 mm |
| Central Hole Diameter | 67 mm |
| Disc Thickness | 10 mm(22 mm) |
| Minimum Disc Thickness | 8.3 mm(19.4 mm) |
| Total Height | 44 mm(42.5 mm) |
| Number of Positioning Holes | 5 |
| Disc type | Solid(Ventilation) |

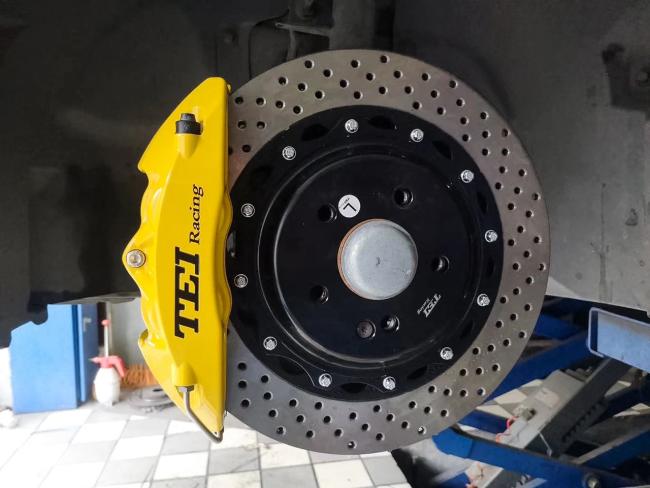

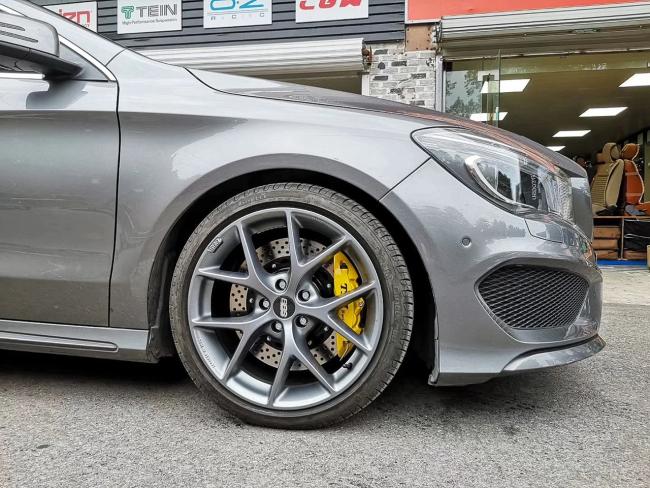

| nstallation Case Brake Kit Information | ||
| Car Model | MB V260 | |
| Front | Rear | |
| TEI Caliper Model | P40NS | / |
| Caliper Color | YELLOW | / |
| Rotor Size | 355X28 MM | / |
| Rotor Style | DRILLED | / |
| Bolt Type | FIXED | / |
| Brake Pad Type | SPPA | / |
|
Noted:1.You can click the caliper model to check the products information.For example,You can click P40NS to check the P40NS brake information. 2.SPPA=Normal Ceramics Brake Pad,SPPL=Normal Metal Brake Pad SSS,XSS,MSS=Racing Metal Brake Pad |
||
