W204 Mercedes Big Brake Kit 17 Inch Car Rim Front 4 Piston Brake Kit Auto Brake System
High Performance BBK For Mercedes-Benz C Class W204 17 Inch Car Rim Front 4 piston brake kit auto brake system
Mercedes-Benz W204 2007-2014 year
It can be installed our front and rear brake kit
Minimum Rear Rotor Size is 345 mm
Normal handbrake
The original wheels do not need to add Spacers.
(W204 is the code of Mercedes -Benz C -Class. Its models are: Mercedes -Benz C180, C200, C260, C300.The 2021 C200 is an example. The body size is: 4784mm long, 1810mm wide, 1457mm height, 2920mm in wheelbase, 66L of the fuel tank, and 4 -door body structure. The Mercedes -Benz C -Class 2021 C200 is equipped with a 1.5T turbocharged engine with a maximum power of 115kW and a maximum torque of 250Nm. Extreme independent suspension.)

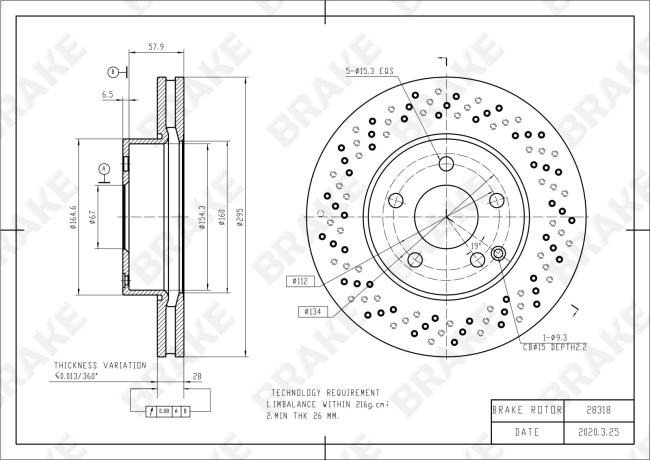

Orginal Brake Rotor Information
| Front Original Rotor Information | |
| Brake Rotor model | EK28318 or 28317 |
| Rotor Diameter | 295 mm |
| Rotor Hat Diameter | 112 mm |
| Central Hole Diameter | 67 mm |
| Disc Thickness | 28 mm |
| Minimum Disc Thickness | 25.4 m |
| Total Height | 58.5 mm |
| Number of Positioning Holes | 5 |
| Disc type | Ventilation |
| Rear Original Rotor Information | |
| Brake Rotor model | 12251(12186) |
| Rotor Diameter | 300 mm(278 mm) |
| Rotor Hat Diameter | 112 mm |
| Central Hole Diameter | 67 mm |
| Disc Thickness | 10 mm(9 mm) |
| Minimum Disc Thickness | 8.3 |
| Total Height | 58 mm |
| Number of Positioning Holes | 5 |
| Disc type | Solid |

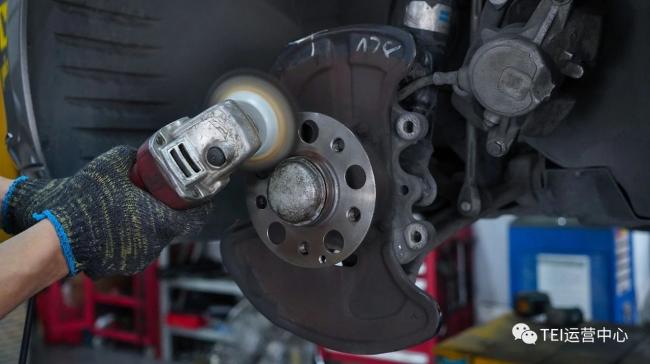

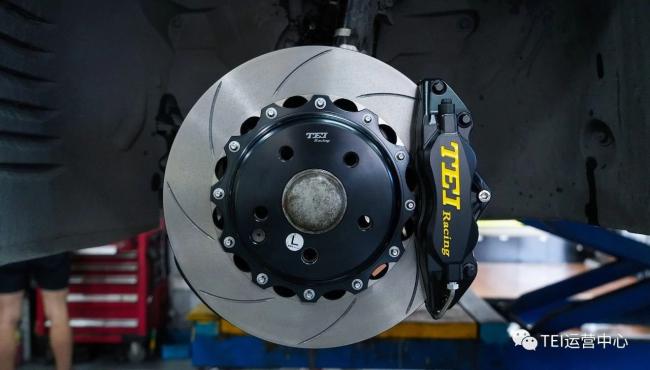

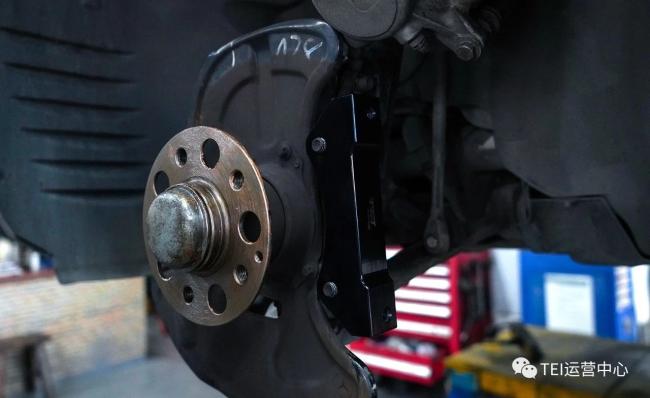

Installation Case
| Installation Case Brake Kit Information | ||
| Car Model | MB W204 | |
| Front | Rear | |
| TEI Caliper Model | P40NS | / |
| Caliper Color | BLACK | / |
| Rotor Size | 330X28 MM | / |
| Rotor Style | SLOTTED | / |
| Bolt Type | FIXED | / |
| Brake Pad Type | SPPA | / |
|
Noted:1.You can click the caliper model to check the products information.For example,You can click P40NS to check the P40NS brake information. 2.SPPA=Normal Ceramics Brake Pad,SPPL=Normal Metal Brake Pad SSS,XSS,MSS=Racing Metal Brake Pad |
||
