E Class W212 Mercedes Big Brake Kit 18 Inch Car Rim Front 6 Piston And Rear 4 Piston Brake Kit
Price:
Negotiable
MOQ:
1 Set
Delivery Time:
10-15 DAYS
Brand:
TEI-RACING
Product Description
High Performance BBK For Mercedes-Benz E Class W212 18 Inch Car Rim Front 6 piston and rear 4 piston brake kit
Mercedes-Benz E class W212 2009-2016
It can be installed our front and rear brake kit
Minimum Rear Rotor Size is 345 mm
Normal handbrake
The original wheels do not need to add Spacers.

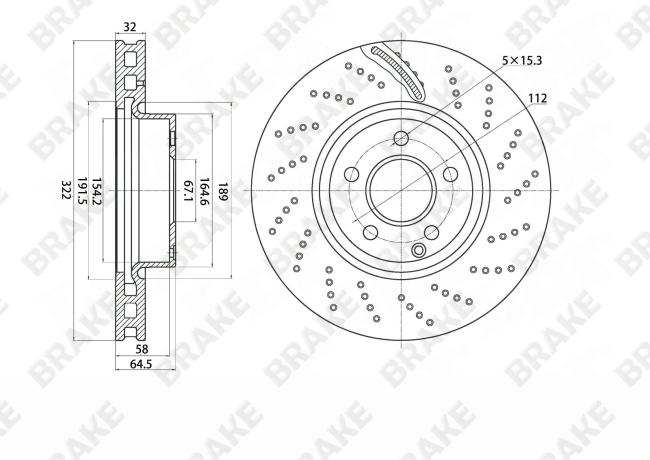

Orginal Brake Rotor Information
Front:
| Front Original Rotor Information | |
| Brake Rotor model | 28315 |
| Rotor Diameter | 322 mm |
| Rotor Hat Diameter | 112 mm |
| Central Hole Diameter | 67 mm |
| Disc Thickness | 32 mm |
| Minimum Disc Thickness | 30 mm |
| Total Height | 64.5 |
| Number of Positioning Holes | 5 |
| Disc type | Ventilation |
| Rear Original Rotor Information | |
| Brake Rotor model | 11902 |
| Rotor Diameter | 300 mm |
| Rotor Hat Diameter | 112 mm |
| Central Hole Diameter | 67 mm |
| Disc Thickness | 10 mm |
| Minimum Disc Thickness | 8.3 mm |
| Total Height | 65.5 mm |
| Number of Positioning Holes | 5 |
| Disc type | Solid |
Installation Case
| Installation Case Brake Kit Information | ||
| Car Model | MB E CLASS W212 2009-2016 | |
| Front | Rear | |
| TEI Caliper Model | P60ES | P40S-R |
| Caliper Color | BLACK | BLACK |
| Rotor Size | 355X32 MM | 345X28 MM |
| Rotor Style | DRILLED AND SLOTTED | DRILLED AND SLOTTED |
| Bolt Type | FIXED | FIXED |
| Brake Pad Type | SPPA | SPPA |
|
Noted:1.You can click the caliper model to check the products information.For example,You can click P60ES to check the P60ES brake information. 2.SPPA=Normal Ceramics Brake Pad,SPPL=Normal Metal Brake Pad SSS,XSS,MSS=Racing Metal Brake Pad |
||
