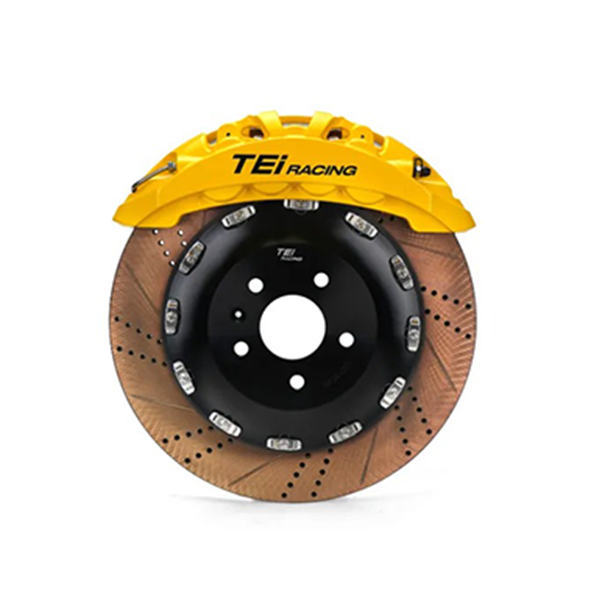

TEI Racing Ultra-high Strength SR8 8 Pot Monoblock Caliper Big Brake Kit For 20/21/22 Inch Car Rim
| Attribute | Value |
|---|---|
| Piston Material | Aerial 6082 Aluminum Alloy |
| Piston Quality | 8 pistons |
| Piston Area | 52.87cm² |
| Disc Size | 400x36mm / 410×38/420*40mm |
| Fitting Disc Size | 20/21 Inch Car Size |

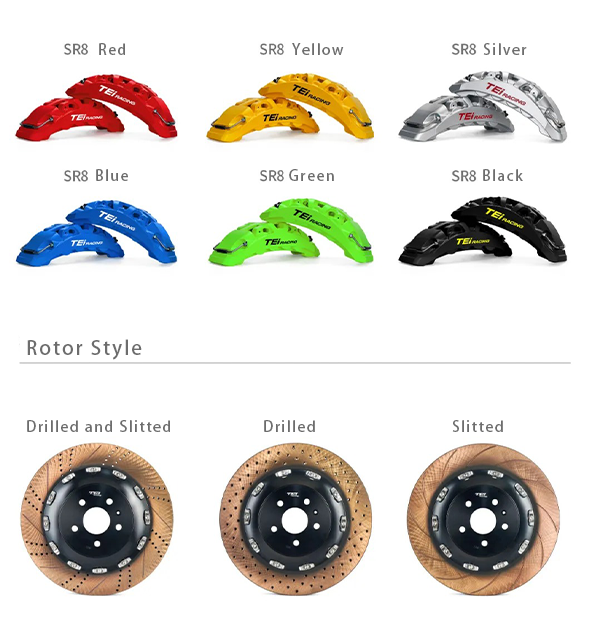

| Color Options | Black, Red, Yellow, Green, Blue, Silver |
- Larger piston area than six-piston
- lighter than ten-piston

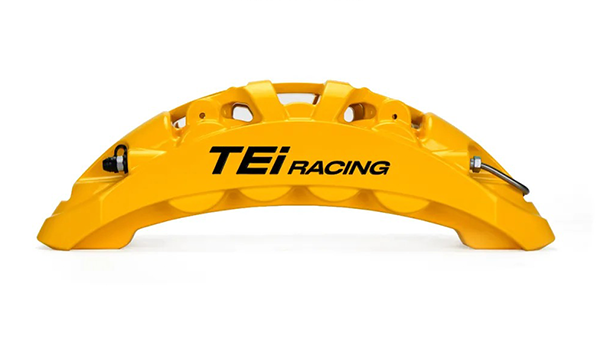

Brand-new design with enhanced caliper strength.
The front-to-back asymmetrical, stacked horizontal and vertical design significantly improves caliper strength compared to traditional calipers.
It also delivers excellent performance on 2-3 ton and larger displacement vehicles.
Lightweight and High Strength
Measuring 388.4mm in length, 172mm in width, and 125.5mm in height, it delivers a visually stunning appearance.
Lightweight and improved driving stability
Friendly for new energy vehicles

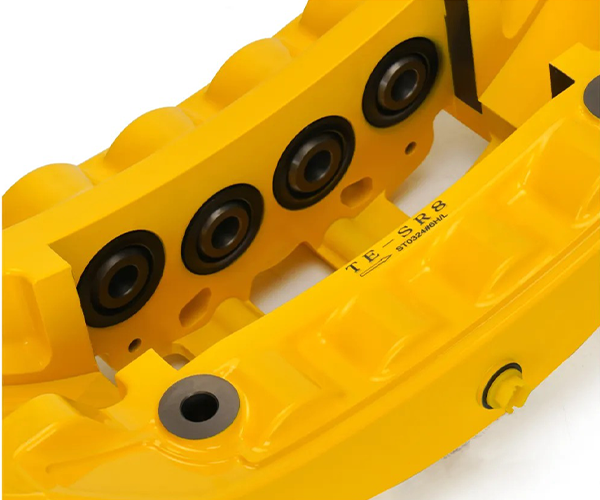

New 8-piston design with external seals
Dust-proof pistons eliminate maintenance worries and provide a better braking experience
Seal rings with a hardness of 85°-90° and high-temperature resistance of 200°-220°C for increased durability
- Caliper Construction: Two-piece forging
- Caliper Material: Aviation aluminum alloy
- Number of pistons: Eight
- Piston area: 52.87 cm²
- Caliper weight: 6.7 kg (single caliper)
- Brake pad friction area: 121 cm²
High-carbon alloy disc with 73 ventilation slots
G3500 high-carbon alloy brake discs are more heat-resistant and wear-resistant than ordinary metal discs.
They also have a larger disc surface than ordinary brake discs, providing better heat dissipation while being lighter.
Nationally patented design ensures stable performance, reduced vibration, and enhanced stability for off-road vehicles.

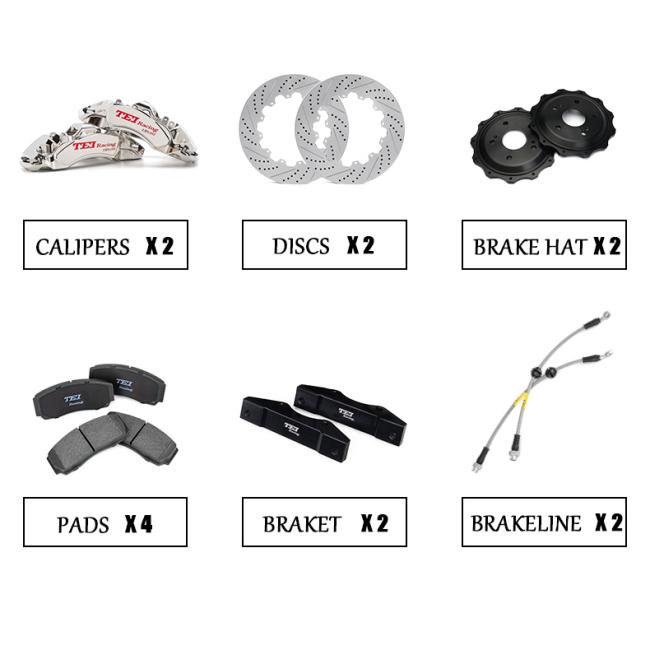

- 2 x Calipers
- 2 x Discs
- 2 x Brake Lines
- 4 x Brake Pads
- 2 x Adapters (Brackets)
- All necessary hardware
![]()
- Material: Ceramic Graphite
- Heat Resistant: 0-500°C
- Friction Coefficient: 0.49
- Craft: Forged
- Plane Bounce: <0.03mm
- Disc Material: High Carbon Iron
- Center Hub Material: Aerial 6061 Aluminum Alloy
- 2-piece floating rotors with 6061-T6 aerospace grade alloy hat
- Factory balanced
- Rotor ring in FC30 cast iron with anti-corrosion coating
- Drilled/slotted/drilled and slotted options available
- Curved vanes for optimal cooling
- Full-floating rotors with anti-rattle system
- Material: Aerial 6061 Aluminum Alloy
- Craft: CNC machined
- Inner material: Teflon
- Mid layer: Braided stainless steel
- Outer shell: Protective PVC weatherproof
- 10 years on calipers casting, caliper parts, and seals
- 2 years on mounting hardware and brackets
- Lifetime Warranty on brake lines (DOT approved)
- 10,000km / 3 months on rotors
