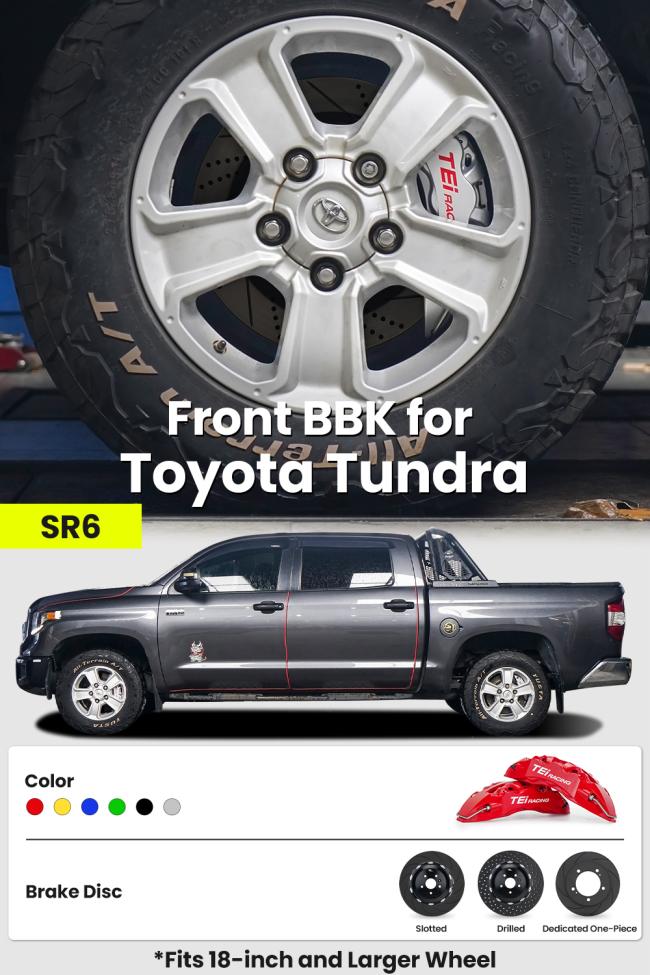

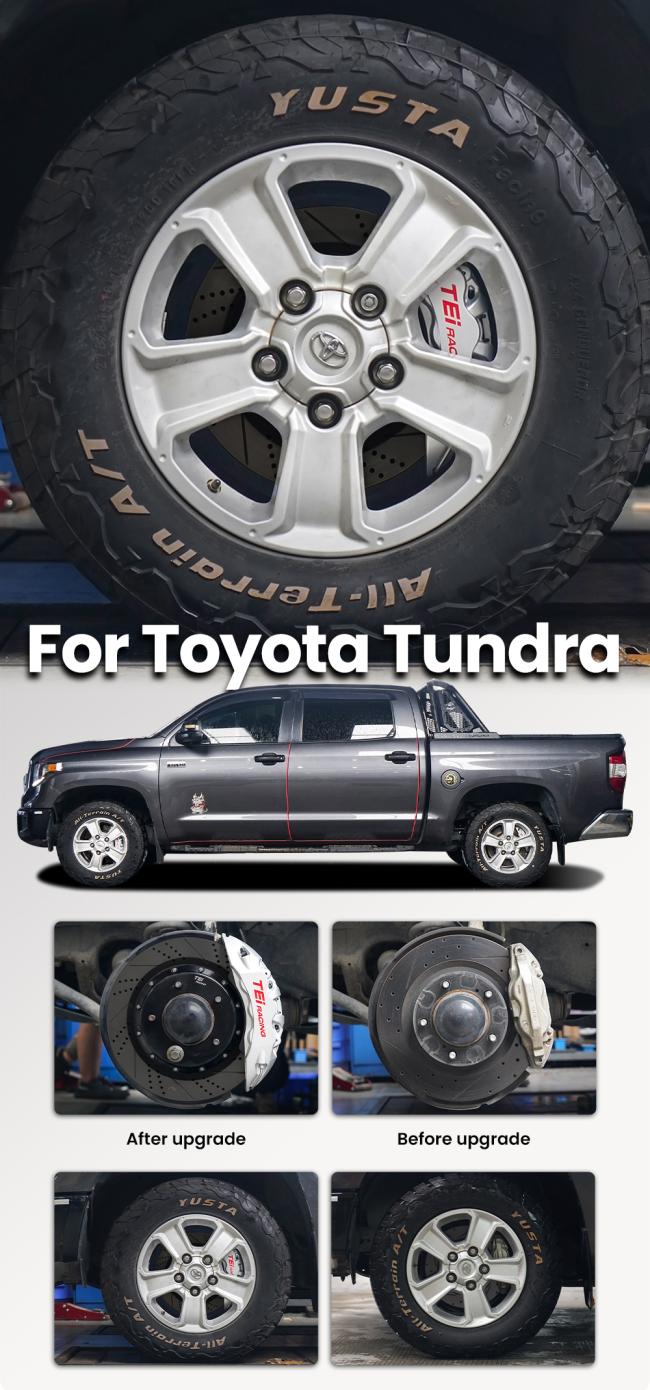

TEI Performance Car Parts SR6 6 Piston Brake Kit R17 R18 Wheel Bbk Kit for Toyota Tundra XN20/N150/N170/XN30/N180
TEI Performance Car Parts SR6 6 Piston Brake Kit R17 R18 Wheel Bbk Kit for Toyota Tundra XN20/N150/N170/XN30/N180
This Big Brake Kit is engineered for enthusiasts who demand uncompromised braking stability, thermal efficiency, and structural rigidity. Built with motorsport-grade materials and optimized airflow design, the system delivers consistent stopping performance during aggressive street driving and high-temperature track sessions.
6-Piston Brake Caliper
-
CNC-machined from 6082 aerospace aluminum for excellent rigidity-to-weight ratio
-
Cross-rib reinforced architecture minimizes flex and maintains linear braking response
-
Hollow-body design significantly reduces unsprung mass to sharpen steering feel
-
Open dustproof layout enhances debris discharge and long-term component reliability
HP Brake Disc
-
72 curved ventilation slots maximize heat extraction and maintain rotor balance
-
Titanium alloy hollow floating bolts reduce rotational mass and improve thermal expansion control
-
600°C heat-treated rotor sustains structural integrity under repeated high-load braking
Ceramic Brake Pads
-
Premium ceramic friction material ensures strong bite with reduced dust output
-
Consistent μ: 0.38–0.43 provides predictable braking modulation in all conditions
-
0–550°C operating window maintains fade resistance during intense driving
Performance Advantages
-
Shorter braking distance and firmer pedal stability
-
Reliable thermal performance for both daily and performance applications
-
A complete performance brake upgrade delivering control, strength, and consistent safety
Product Parameters:
| Item No. | SR6 High Performance Brake Kit |
| Type | Front Big Brake Kit |
| Wheel | for 17-inch and larger Wheel |
| Brake Caliper | |
| Weight | 4.5kg/Each Caliper |
| Material | 6082-T6 Aerospace Aluminum Alloy |
| Pistons | 6 Pistons |
| Pistons Size | 41.3/38/31.8mm |
| Pistons Area | 65.31cm² |
| Caliper Craft | 2 Piece Forging |
| Brake Pad | |
| Pad Area | 95.3c㎡ |
| Pad Material | Ceramic Pad |
| Brake Disc | |
| Style | Slotted/Drilled/Dedicated One-Piece Disc |
| Size | 33.2*3.2cm(17 inch)
35.5*3.2cm(18 inch)
|
| Material | G3500 High Carbon Alloy(Carbon 3.85%) / Carbon Ceramic(Option) |
| Craft | 600℃ Heat Treatment for 24 Hours /72 curved ventilation slots |
| Standard | Dynamic Balance Testing, DTV Vibration Detection |
| Brake Hose | |
| Material | PTFE Inner Tube + Stainless Steel Braided Mesh + PVC Protective Sleeve |
| Certificates | Certified by TUV, DOT, ADR, and ISO |
