DA-FDH 288F Outdoor Fiber Distribution Cabinet Fiber Distribution Hub
DA-FDH 288F Outdoor Fiber Distribution Cabinet
Dawnergy’s Fiber distribution cabinet enables telecom operator & service providers to maintain and manage the distribution of connection in a disciplined manner for FTTX network. The cabinets are specially designed and fabricated for outdoor operations provided to bear extreme weather conditions and provide well organized and centralized distribution of the connections.
Fiber distribution cabinet is mainly used for connection, distribution and dispatching of communication optical cable from offices to optical distribution nodes, providing a safe, reliable but flexible optical fiber/cable management system for communication networks, especially for access networks.
Specifications
| Parameters | Specification | ||
| Material | Cabinet | Cold rolled steel | |
| Shell | 1.5mm Cold rolled steel sheet | ||
| Cable Fixing Board | SUS304 | ||
| Plastic Part | UL94V0 | ||
| Available Install Equipment | Splitter trays or splice trays with angular SC/APC adapters | ||
| Installation Type | Ground | ||
| Protection Rating | IP65 | ||
| Operating Temperature (°C) | -40~ +60 | ||
| Relative Humidity | ≤95％ (@+40℃) | ||
| Working Environmental Atmosphere Pressure (kpa) | 70~106 | ||
| Grounding Device | Yes | ||
| Dimensions (mm) (L×W×H) | Cabinet (with base) | 1590 x 750 x 520 (for 288F) | |
| Package | carton package with wooden pallet | ||

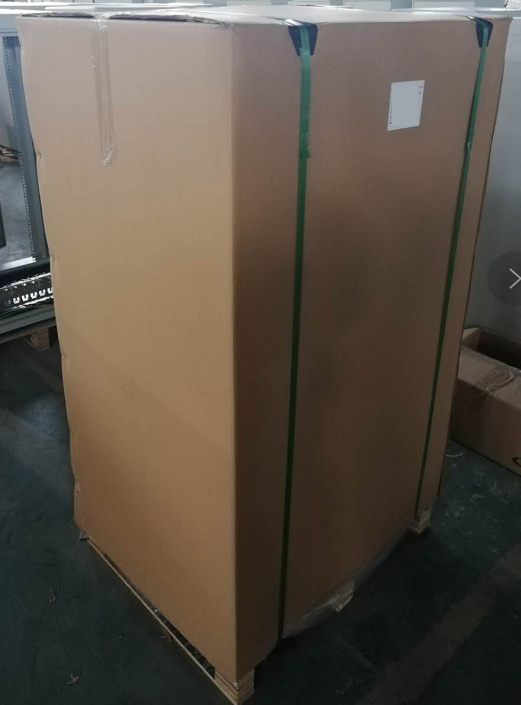

Carton package for reference
Ordering Information (SMC is option)
| Model | Name | Description |
| DA-FDH-288F-x | Outdoor Network Cabinet | Outdoor network cabinet; Material: 1.5mm Cold rolled steel; With base; SUS304 cable fixing board; Dimensions (mm):1590(H)×750(W) ×520(D); carton package with wooden pallet; 9pcs 1x32 angular SC/APC PLC splitter tray, Total 288F integrated splice trays (24F per tray, each tray have two lever, each lever 12F) for Distribution side, Total 288F integrated splice trays (24F per tray, each tray have two lever, each lever 12F) for Feeder side, full loaded angular SC/APC adapters and SC/APC pigtail |
