Outdoor Remote Cable Patch Cord with ODVA MPO Connector and Armored Outdoor Cable for Low Insertion Loss
Outdoor Remote Cable Patch Cord (ODVA MPO Connector)
MPO Polarity A
Applications
l Telecommunication networks
l FTTA
Features
l Low insertion loss and high return loss
l Good durability
Patchcord Specifications
|
Parameters |
Specification |
|
|
Connector |
Type |
ODVA (MPO) Female |
|
Insertion Loss (dB) |
≤0.7 |
|
|
Return Loss (dB) |
≥55 (APC) |
|
|
Main Cable |
Type |
Armored outdoor remote cable |
|
Fiber Core |
12 or 24 |
|
|
Jacket Material |
LSZH |
|
|
Jacket Color |
Black |
|
|
Diameter (mm) |
7.0±0.2 |
|
|
Total Length (m) |
as customer request |
|
|
Tolerance (m) |
0~+0.1, If L ≤10, 0~+0.2, If 10< L≤20, 0~+1%×L, if L>20, L= patchcord length |
|
|
Temperature (°C) |
Operating/Storage |
-20~+60 |

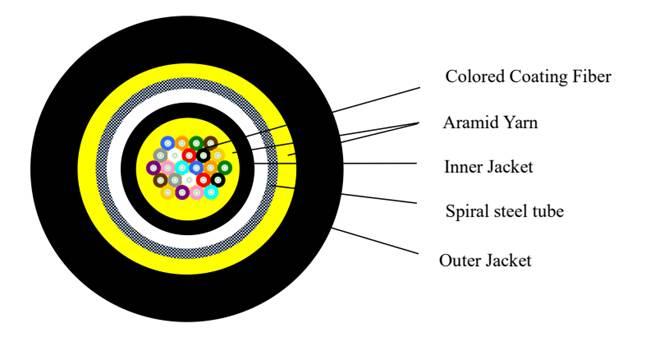

7.0mm Armored Outdoor Remote Cable
Fiber Parameters
|
No. |
Items |
Unit |
Specification |
||
|
G.657A1 |
|||||
|
1 |
Mode Field Diameter |
1310nm |
μm |
8.8±0.4 |
|
|
1550nm |
μm |
9.8±0.5 |
|||
|
2 |
Cladding Diameter |
μm |
125±0.7 |
||
|
3 |
Cladding Non-Circularity |
% |
≤0.7 |
||
|
4 |
Core-Cladding Concentricity Error |
μm |
≤0.5 |
||
|
5 |
Coating Diameter |
μm |
245±5 |
||
|
6 |
Coating Non-Circularity |
% |
≤6.0 |
||
|
7 |
Cladding-Coating Concentricity Error |
μm |
≤12.0 |
||
|
8 |
Cable Cutoff Wavelength |
nm |
λcc≤1260 |
||
|
9 |
Attenuation(max.) |
1310nm |
dB/km |
≤0.35 |
|
|
1550nm |
dB/km |
≤0.21 |
|||
|
10 |
Macro-Bending Loss |
1turn×10mm radius @1550nm |
dB |
≤0.75 |
|
|
1turn×10mm radius @1625nm |
dB |
≤1.5 |
|||
Cable Parameters
|
Items |
Specifications |
|
|
Fiber Count |
12 or 24 |
|
|
Colored Coating Fiber |
Dimension |
250±15μm |
|
Color |
Blue,Orange,Green,Brown, Gray, White,Red,Black,Yellow,Purple, Pink,Aqua |
|
|
Cable subunit |
Diameter |
2.9±0.1mm |
|
Material |
LSZH |
|
|
Color |
Black |
|
|
Strength member |
Aramid Yarn |
|
|
Spiral steel tube |
Dimension |
4.6±0.2mm |
|
Material |
stainless steel Tube |
|
|
Jacket |
Dimension |
7.0±0.2mm |
|
Material |
LSZH |
|
|
Color |
Black |
|
|
Strength member |
Aramid Yarn |
|
Mechanical and Environmental Characteristics
|
Items |
Unite |
Specifications |
|
Tension (Short Term) |
N |
400 |
|
Crush(Short Term) |
N/10cm |
3000 |
|
Min. Bend Radius(Dynamic) |
mm |
20D |
|
Min. Bend Radius(Static) |
mm |
10D |
|
Operating Temperature |
℃ |
-20～+60 |
|
Storage Temperature |
℃ |
-20～+60 |
