Spider Web Fiber Optic Cable with ITU-T G.657A1 Fiber, 0.4mm Steel Wire Support, and 2.6mm Steel Wire Strength Member

Name: Spider Web Fiber Optic Cable with ITU-T G.657A1 Fiber, 0.4mm Steel Wire Support, and 2.6mm Steel Wire Strength Member
Brand: Dawnergy Technologies(Shanghai) Co., Ltd.

Price Negotiable

Price: Negotiable

MOQ: 100

Delivery Time: Negotiable

Brand: Dawnergy

Product Description

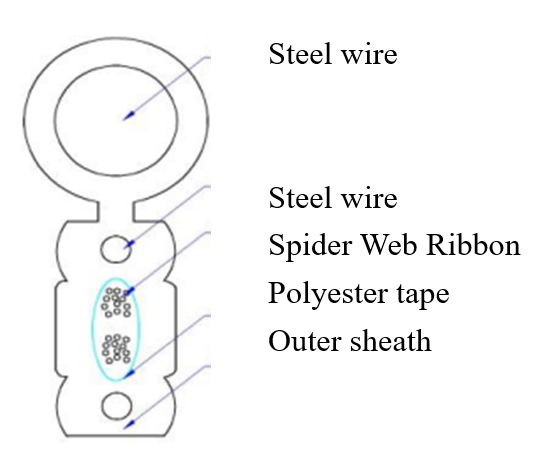

CABLE SPECIFICATION

- Not to scale -

STRUCTURE

ITEM		PERFORMANCE
Fiber	Type	ITU-T G.657A1
Fiber	Cores	Blue, Orange, Green, Brown, Gray, White, Red, Black, Yellow, Violet, Pink, Aqua, Blue, Orange, Green, Brown, Gray, White Red, Black, Yellow, Violet, Pink, Aqua, *Black ring marking
Materials	Supporting wire	0.4mmSteel wire
	Strength member	2.6mmSteel wire
	Outer sheath	LSZH (Black)
	H1 - H2 × W	12:10.0 ± 0.5 mm - 5.0 ± 0.3 mm × 3.5 ± 0.2 mm 24:10.5 ± 0.5 mm - 5.5 ± 0.3 mm × 3.5 ± 0.2 mm
Cable weight		12:Approx. 81 kg/km；24:Approx. 83 kg/km；

TECHNICAL SPECIFICATIONS

ITEM	PERFORMANCE
Attenuation	≤0.40 dB/km@1310 nm ≤0.30 dB/km@1550 nm
Tensile strength (IEC 60794-1-21 E1)	Short-term: 3000 N. Additional attenuation after test ≤ 0.10 dB
Crush resistance (IEC 60794-1-21 E3)	Short-term: 1500 N/100mm. No fiber break, no sheath damage. Additional attenuation ≤ 0.10 dB.
Minimum bending radius	Bend radius with supporting wire 260mm Bend Radius without supporting wire 100mm
Environmental performance	RoHS
