SS304 Easygate Cabinet Swing Speed Gate 550mm Channel
Price:
Negotiable
MOQ:
1 lane
Delivery Time:
5-7 working days
Brand:
DOOR
Product Description

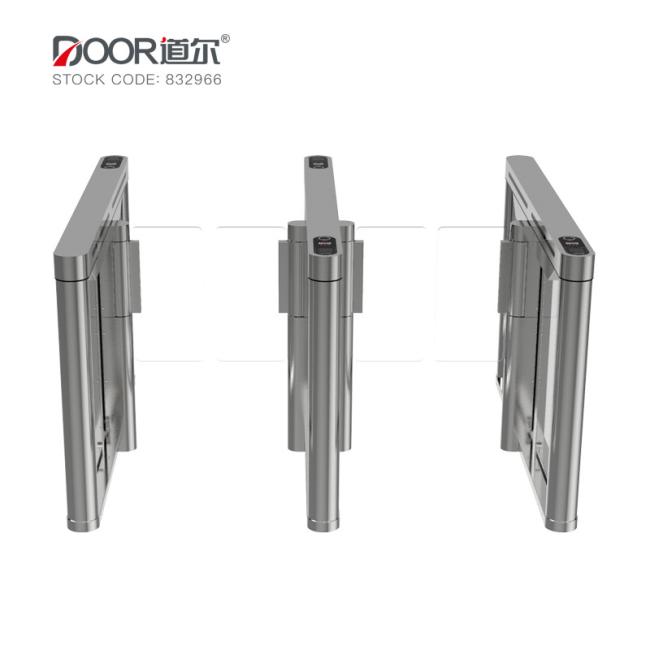

Easygate cabinet slim design swing speed gate
Device Parameter:
- Structure Parameter
-
Material: SUS304 brushed stainless steel,
-
top cover 2.0mm, whole body 1.5mm, Acrylic Arm
-
Size: L1600*W160*H1030mm
- Technical Parameter
| Passage Width | standard 550mm, max 1100mm |
| Passing Speed | 35-40 personal/min |
| Opening Speed | Adjustable, fastest 0.3s |
| Working Temperature | -25℃-+70℃ |
| Mean Cycles Between Failure | 5 million times |
| IP Rating | IP42 |
- Electric Parameter
1.Voltage: AC110V/AC220V±10% 50-60Hz
2.Operating Power: Single Core 100w, dual core 200w
3.Driving Motor: Servo motor
4.Method of Position: Use the encoder to make sure the swing gate position
5.Communication Interface: RS485, TCP/IP interface
6.Input Signal: dry contact signal or +12V level signal or DC 12V
7.pulse signal with width of more than 100ms, driving current >10mA
8.Number of Sensor: 8 groups
Project cases:
Factory Show:
Company Introduction:
Shenzhen Door Intelligent Control Technology Co.,Ltd. (Stock Code 832966) is a high-tech
enterprise in the field of intelligent access control based on cloud computing, which located in
Longhua District, Shenzhen. The company has more than 400 employees, including 200 R&D
and technical personnel. Door has already achieved National High-Tech Enterprise Certification,
Double Soft Enterprise Certification, ISO9000 International Quality System Certification and
CE Certification. Meantime, the company has obtained over 60 invention patents and national
software copyright with registered capital of CNY 100.06 million.
