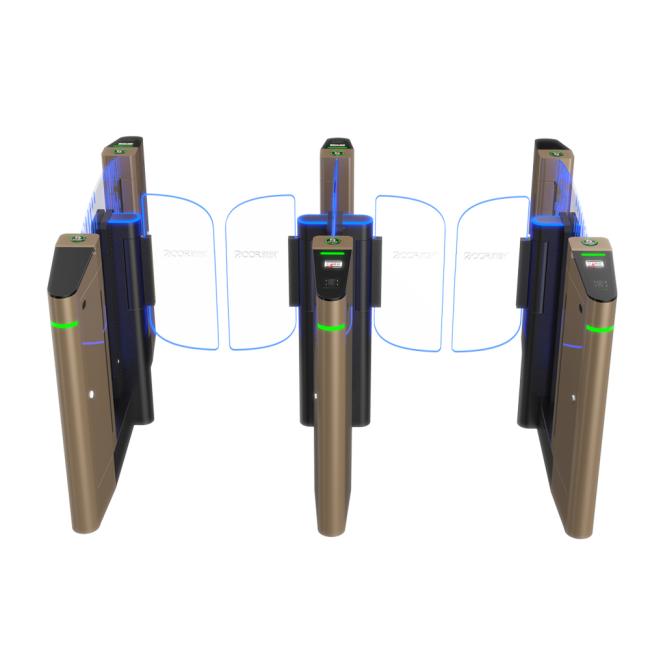

Electroplating Stainless Steel Slim Fastlane Pedestrian Swing Barrier Gate Turnstile
Electroplating Stainless Steel Slim Fastlane Pedestrian Swing Barrier Gate Turnstile
Speed gate is an ideal solution for office, administrative buildings,
ministries, public buildings, banks, financial institutions, airports and so on. it well adopted in entrances and exits of buildings or construction sites, to help tracking staffs and visitors. Only authorized users are able to access to specific areas through the swing turnstile entrance security gate.can easily be integrated into access control RFID system,mifare system face recognition, fingerprint, barcode or time attendance reader.
|
Product name |
Speed gate |
|
Model |
DR.TD.6628 |
|
Material |
Cold rolled sheet + baking finish (thickness 1.5mm)+10mm Acrylic Arm |
|
Size |
1600 140*1000mm |
|
Bar Width |
Customized |
|
Bar material |
Tempered glass |
|
Passage direction |
single directional/bi- directional |
|
Pass rate |
30- 50 persons/min |
|
Infrared sensors |
8 pairs |
|
Motor |
servo motor,50-100w/24v |
|
Power input |
AC100- 240V,50/60HZ |
|
Working voltage |
24V |
|
Working humidity |
≤95% |
|
Working temperaturer |
-20°C-+70°C |
|
working enviroment |
Indoor/outdoor(Build canopy) |
|
Communitcation interface |
RS485 |
|
Access control system |
ID/IC card ,fingerprint, face recognition,Barcode/QRcode,phone app, visitor system,etc |
Installation pictures:
Packing & Delivery:
|
Packaging details |
|
|
Size(mm) |
1680 (L) * 220 (W) * 1160 (D) |
|
Weight |
90 KGS |
|
Packaging Details |
plywood box |
Delivery: Suggest for the sea shipping by containers, we also could send by air, express DHL,TNT,etc if emergency using.
Forwarders for optional and negotiation.
