Swing Gate Brushed Motor Automatic Indoor Outdoor Entrance Control Person Limited Quipment

Swing Gate Brushed Motor Automatic Indoor/Outdoor Entrance Control Person Limited Quipment

Highly customizable swing gate discription:

1) The swing brake has the functions of fault self inspection and alarm prompt, which is convenient for users to maintain and use;

2) Through the built-in small press plate on the main control board, the swing gate can program the operation state of the equipment;

3) The swing brake has anti pinch and anti collision functions. When the swing arm is blocked in the process of resetting, the motor will automatically stop working within the specified time, reset again after the default delay (until reset), and the force is very small (≤ 2kg);

4) Swing gate anti impact function, when the opening signal is not received, the swing arm will be locked automatically;

5) The swing arm is synchronously adjustable (for double swing);

6) The swing gate has the function of automatic reset. After opening the gate, if there is no passage within the specified time, the system will automatically cancel the user's permission to pass this time;

Application scope of vertical swing brake:

Parameter

Working types

In the swing gate products, there are three working types for users to choose at the entrance and exit: controlled passing, free passing and no passing. Namely there are nine working types for users to choose for one lane in open status and normal close status:
1) Controlled at both entrance and exit: it needs to read card to pass through at both the entrance and exit;
2) Controlled at entrance, free at exit: it needs to read card at entrance, and it does not need to read card at exit to pass through;
3) Controlled at entrance, no passage at exit: it needs to read card at entrance, and no one can pass through at the exit;
4) Free at entrance, controlled at exit: it does not need to read card at entrance to pass through, and it needs to read card at exit to pass through;
5) Free at entrance, free at exit: it does not need to read card at entrance and exit to pass through;
6) Free at entrance, no passage at exit: it does not need to read card at entrance to pass though, and no one is allowed to pass through at exit;
7) No passage at entrance, controlled at exit: no one is allowed to pass through at entrance, and it needs to read card at exit to pass through;
8) No passage at entrance, free at exit: no one is allowed to pass through at entrance, and it does not need to read card at exit to pass through;
9) No passage at entrance, no passage at exit: passage is cut off, and on one is allowed to pass through at both entrance and exit;

Swing Barrier Gate Function

• Anti-tailgating funtion:infrared detection,one person one card.
• Anti-reverse function:infrared detection,lock the passage and alarming.
• Anti-pushing function:when the arm is suffered by external force,it will be locked to a certain angle and after that the arm will be reset and original section,This will be good to protacting the arm and motor.
• Anti-smashing function:multiple sets of infrared monitoring for personnel access,pedestrians cover the infrared,precision actuarial analysis,to eliminate false positives tailgating or close the arm.
• Anti-crushing function:multiple sets of infrared anti-crushing+mechanical anti-crushing+current detection anti-crushing triple anti-crushing technology tio avoid clipping.
• Emergency Control Device:arm automatically opened in case of emergency.

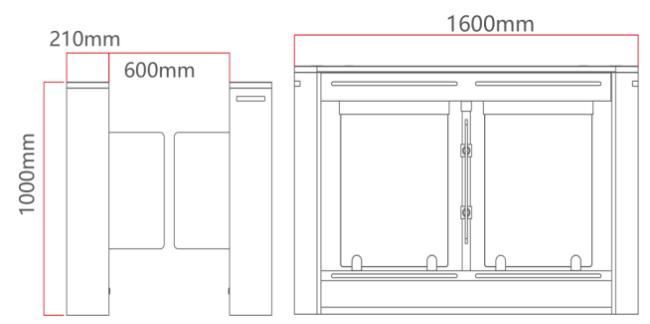

Demesion

FAQ:
Q1: Do you have English version system?
A: Yes, we can provide English version system. Also you can use your own system as well.
Q2: Does the equipement include control board?
A: Yes, it is with control board. But if need our system to management, need to order extra channel management control board.
Q3: Can we connect your access control system with our system?
A: Yes, we provide SDK and Software development service with connection port.
Q4: How can we install the turnstiles/barrier gates? Is it easy?
A:Yes, it's easy to install, we have done most of the jobs before sending our products. You just need fix the gates with screws, and connect power supply cables and internet cables.Also we provide one sheet of specific manual specification in the package.
Q5: What is your company’s strength?
A: We are the top 3 manufacturer in turnstile field in China. And we are listed company with famous brand in China. We have more than 400 employees, a R&D group with 160 people, 15-person customized team, 18 offices, 9 agents and more than 20 distributors all around China.
Q6: How do you do after-sale service?
A: We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.
Q7:How about the lead time?
Normally we have raw material in stock for the hot sale models of standard products. Regular products need 5-7 working days. The customized products need 15-20 working days.

Q8: How many years of warranty?
A: We provide 2 year warranty for our products.
