MCBF 10 Million Times New Aluminum Alloy Slim Speed Gate Turnstile Security Entrance
MCBF 10 Million Times New Aluminum Alloy Slim Speed Gate Turnstile Security Entrance
Product Description

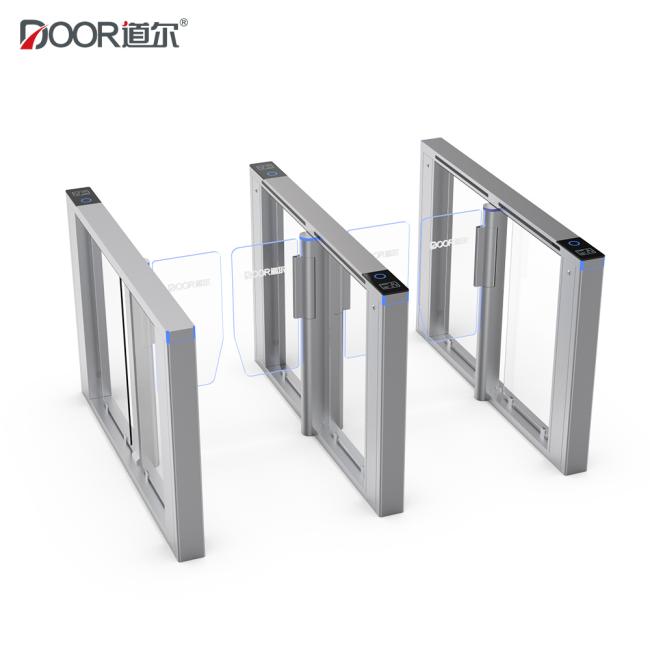

Our new Speed Gate are adopts slim and elegant design,it has a minimal footprint while still being comfortable for visitors.
Using aluminum alloy material,corrosion resistance,high temperature resistance,oxidation resistance, durable.
Anti fingerprint housing,side tempered glass.Standard passing indicator light and swing arm led light.Unique design.
Support IC/ID card,NFC card, CPU card,Fingerprint Recognition,QR Code and Face Recognition etc.
Product Specification
| Structure Parameter | |
| Material |
Aluminum Alloy (whole body over 3mm) |
| Swing arm available | Acrylic |
| Size | L1500×W110×H988mm |
| Technical Parameter | |
| Passage Width | Standard 550mm, max 900mm |
| Passing Speed | 40-45personal/min |
| Opening Speed | Adjustable, fastest 0.3s |
| Working Temperature | -30℃-+65℃ |
| Mean Cycles Between Failure | 10 million times |
| IP Rating | IP42 |
| Electric Parameter | |
| Voltage | AC110V/AC220V±10% 50-60Hz |
| Operating Power | Single Core 100w, dual core 200w |
| Driving Motor | Servo motor |
| Method of position | Use the encoder to make sure the swing gate position |
| Communication Interface | RS485, TCP/IP interface |
| Number of Sensor | 6 groups |
Multiple protection function
Anti-trailing:
Multiple sets of infrared beam monitoring can pass one person and one card to personnel,to prevent trailing and alarm prompt.
Anti-reverse:
Precise actuarial calculation,infrared beam monitoring,reverse passage,automatic blockade of channels,voice alarm prompt.
Anti-clip and anti-collision monitoring:
Triple safety protection mechanism to ensure the safe passage of person.
Infrared anti-clip and anti-collision.
Passing process logic anti-pinch and anti-collision.
Current detection anti-clamp and anti-collision.

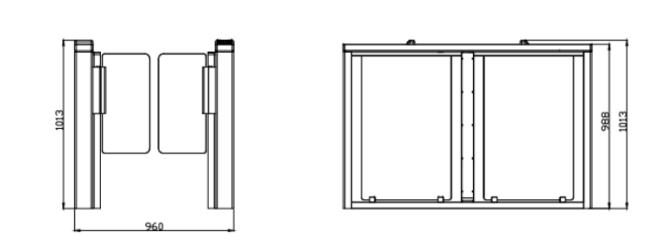

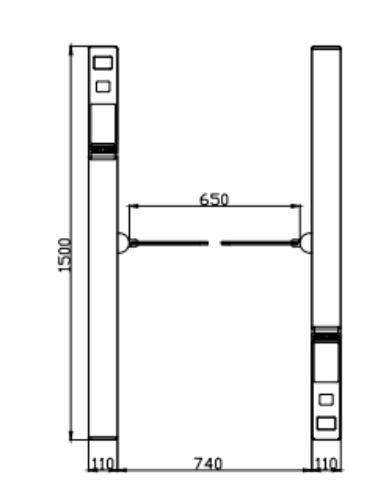

Product Dimenssion
Product Application
FAQ
Q1: Do you have English version system?
A: Yes, we can provide English version system. Also you can use your own system as well.
Q2: Does the equipement include control board?
A: Yes, it is with control board. But if need our system to management, need to order extra channel management control board.
Q3: Can we connect your access control system with our system?
A: Yes, we provide SDK and Software development service with connection port.
Q4: How can we install the turnstiles/barrier gates? Is it easy?
A:Yes, it's easy to install, we have done most of the jobs before sending our products. You just need fix the gates with screws, and connect power supply cables and internet cables.Also we provide one sheet of specific manual specification in the package.
Q5: What is your company’s strength?
A: We are the top 3 manufacturer in turnstile field in China. And we are listed company with famous brand in China. We have more than 400 employees, a R&D group with 160 people, 15-person customized team, 18 offices, 9 agents and more than 20 distributors all around China.
Q6: How do you do after-sale service?
A: We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.
Q7:How about the lead time?
Normally we have raw material in stock for the hot sale models of standard products. Regular products need 5-7 working days. The customized products need 15-20 working days.
Q8: How many years of warranty?
A: We provide 1 year warranty for our products.
