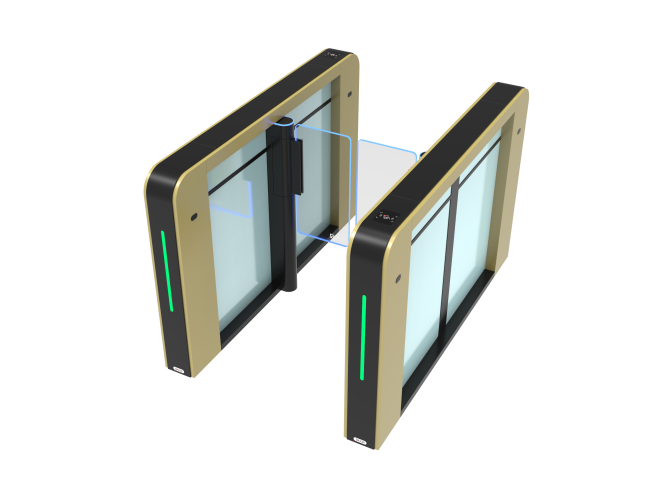

Aluminum Alloy Speed Gate Turnstile SUS304 Brushed IP42 RS485
Aluminum Alloy New Speed Gate Screwless Turnstile Servo Motor Door
Product Description
Our new speed gate using high-precision electroplating on stainless steel thick plate, corrosion resistance,high temperature resistance,oxidation resistance, durable.Using Servo Motor,Highly stable and efficient;MTBF 10million times;1024 signal detection points are located accurately.
Support IC/ID card,NFC card, CPU card,Fingerprint Recognition,QR Code and Face Recognition etc.
Application to Office and administrative buildings;Ministries and public buildings;Banks and financial institutions;Industrial installations;Residential areas;Schools, colleges and universities.
Product Parameter
| Structure Parameter | |
| Material |
SUS304 brushed stainless steel +Aluminum Alloy |
| Swing arm available | Acrylic |
| Size |
L1604×W140×H1002mm |
| Technical Parameter | |
| Passage Width | Standard 600mm, max 1100mm |
| Passing Speed | 35-40 personal/min |
| Opening Speed | Adjustable, fastest 0.3s |
| Working Temperature | -25℃-+70℃ |
| Mean Cycles Between Failure | 10 million times |
| IP Rating | IP42 |
| Electric Parameter | |
| Voltage | AC110V/AC220V±10% 50-60Hz |
| Operating Power | Single Core 100w, dual core 200w |
| Driving Motor | Servo motor |
| Method of position | Motor + clutch + encoder |
| Communication Interface | RS485 |
| Number of Sensor | 8 groups |
Product Dimenssion

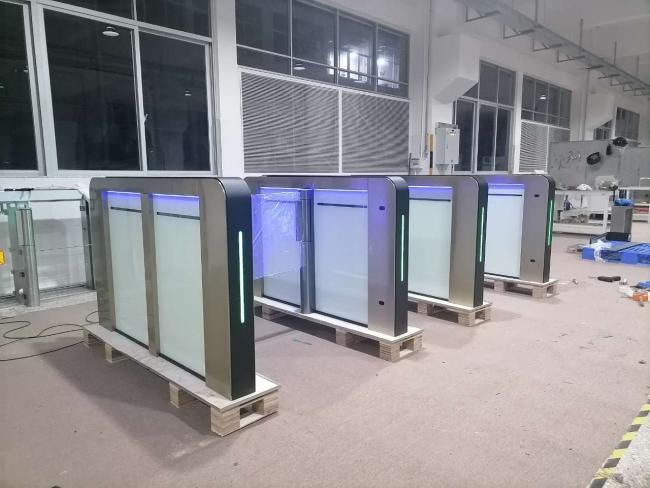

Our Factory
FAQ
Q1: Do you have English version system?
A: Yes, we can provide English version system. Also you can use your own system as well.
Q2: Does the equipement include control board?
A: Yes, it is with control board. But if need our system to management, need to order extra channel management control board.
Q3: Can we connect your access control system with our system?
A: Yes, we provide SDK and Software development service with connection port.
Q4: How can we install the turnstiles/barrier gates? Is it easy?
A:Yes, it's easy to install, we have done most of the jobs before sending our products. You just need fix the gates with screws, and connect power supply cables and internet cables.Also we provide one sheet of specific manual specification in the package.
Q5: What is your company’s strength?
A: We are the top 3 manufacturer in turnstile field in China. And we are listed company with famous brand in China. We have more than 400 employees, a R&D group with 160 people, 15-person customized team, 18 offices, 9 agents and more than 20 distributors all around China.
Q6: How do you do after-sale service?
A: We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.
Q7:How about the lead time?
Normally we have raw material in stock for the hot sale models of standard products. Regular products need 5-7 working days. The customized products need 15-20 working days.
Q8: How many years of warranty?
A: We provide 1 year warranty for our products.
