Stainless Steel Turbine Wheel Factory Stock Customized Micro Francis Runner

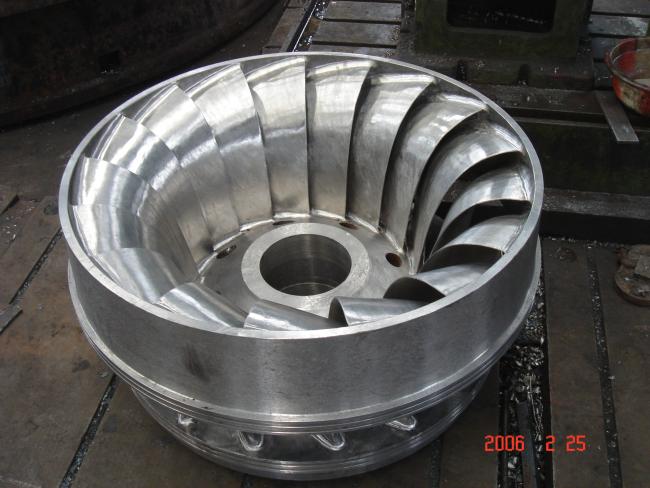

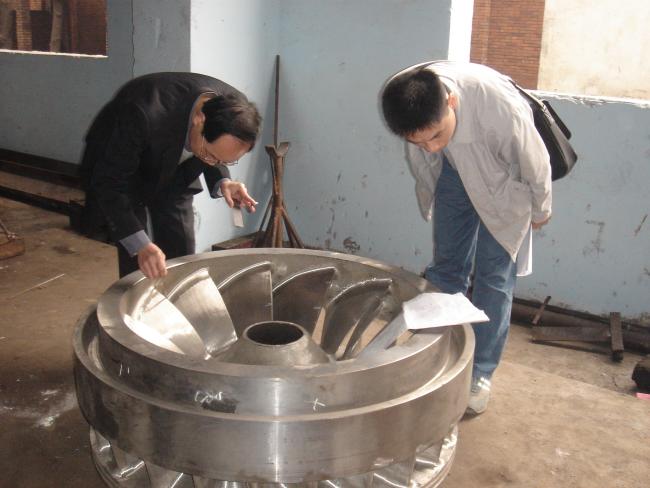

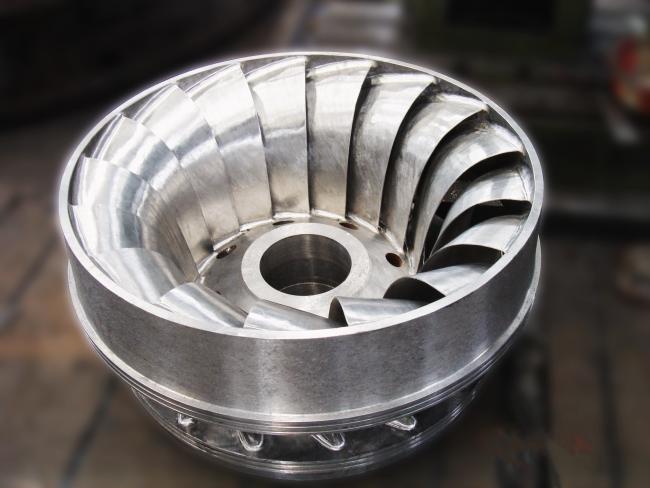

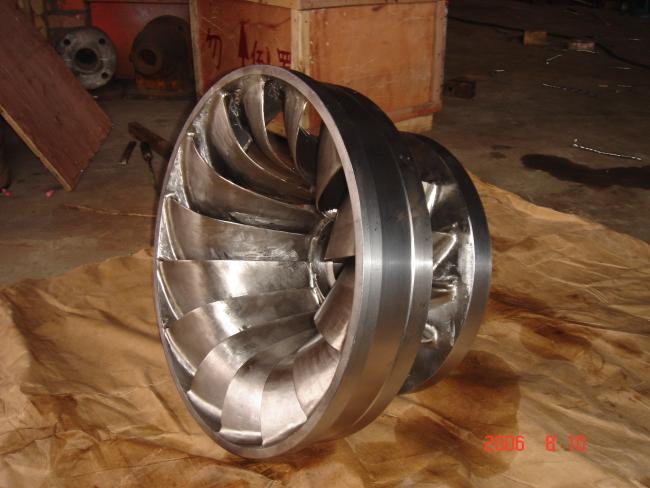

Francis Turbine Runner
Hot-Sell Stainless Steel Turbine Wheel Factory Stock Customized Micro Francis Runner
Product Paramenters
Product Name:
High Quality and Nice Price Pelton Turbine, CNC Machining Hydro Turbine Runner Francis Wheel Turbine Runner Generator Made in China.
Processing process: make a sample according to the cross-section size of the water cutting edge, use the sample to draw a line on the large plane of the water bucket, turn the center of the runner on the vertical lathe according to the size of the runner, and turn it on the runner water bucket check with template;
Mixed-flow turbine(also called Francis turbine) has a compact structure, high efficiency and can adapt to a wide range of head, which is one of the turbine types widely used in the world.
When the water flows through the working wheel of this turbine, it enters in a spoke direction and flows out axially, so it is also called a spoke axial flow turbine.
It is suitable for the range of water head from 20 meters up to 700 meters, with simple mechanism, stable operation and high efficiency, but it is generally used in the medium head range (50 meters to 400 meters). Single machine output from tens of kilowatts to hundreds of thousands of kilowatts.
| Runner range | 30cm-200cm |
| Speed range | 100RPM-1000RPM |
| Efficiency | 85%-96% |
| Description | 100kw-50mw Nice Price Pelton Turbine |
| Water head | 25m-300m |
| Nozzle number | Single/Multiple |
| Power range | 100kw-50mw |
| Frequency | 50Hz/60Hz |
| Generator Voltage | 400v,800v,6300v,10500v |
| Layout pattern | Horizontal or Vertical |
| Material | Stainless steel or Carbon steel |
| Excitation | Brushless or Static Excitation System |
| Generator Insulation | F/F |
| Lifespan | 20~50 years |
| Manufacturer | Deyang Dongsen Hydropower Equipment Co.,Ltd |
Application
Production process:
What Kind of hydropower generator units should I choose?
All of our products are customized. We have more than 15 yeras experience on design and manufacture of hydro turbine. And we have served for more than 500 HPPs. We could design and customized products according to your informations or requirements. All of our products are strictly designed and manufactured under ISO,TUV and CE.
Could you please send me below parameters, so our engineers could offer the best suggestions for your project?
Where is the plant?
1. Design head: ___m
2. Design flow: ___m³/s
3. Frequency: 50Hz or 60Hz?
4. Unit Capacity: ___KW；How many kw each unit? How many units?
5. Power factor COSφ:
6. Generator output voltage: __V
7. On-grid or Off-grid type? (On-grid type voltage: ____Kv
8. M.a.s.l: ___ m
9. Basic situation about the project and your company introduction.
