Water Powered Tubular Water Turbine / Hydro Tubular Turbine 500kw
Quality Water Powered Tubular Water Turbine/Hydro Tubular Turbine 500kw

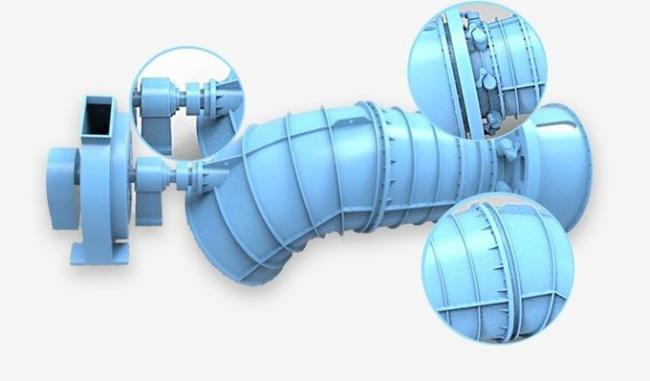

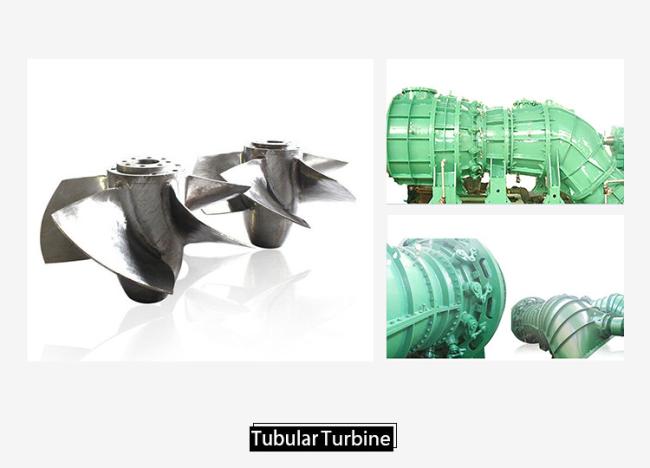

Pit type tubular turbine is a new hi-tech product. It is well suitable for hydropower plants with water
head ranging from 2 m to 10 m and unit capacity below 15MW. It has the following particular advantages:
Its efficiency is higher than shaft-extension type tubular units and axial flow units; its cost is lower than axial
flow units and bulb tubular units, and it is convenient to operate and maintain. Pit type tubular turbine is
divided into fixed blade type (GD) and moveable blade type (GZ).
| Water Head | 2m-10m |
| Runner Diameters | 0.45m-5m |
| Power Range | 100KW to 70MW |
| Frequency | 50HZ/60HZ |
| Generator Voltage | 400V, 800V, 6300V, 10500V |
| Layout pattern | Horizontal or Vertical |
| Material(blades) | Stainless Steel ZG0Cr13Ni4Mo |
| Excitation | Brushless or Static excitation system |
| Generator Insulation | F/F |
| Lifespan | 30~50 years |
| Manufacturer | Deyang Dongsen Hydropower Equipment Co., Ltd. |
MAIN PRODUCTS
We could supply Francis turbine, Pleton turbine, Kaplan turbine, Propeller turbine, Tubular turbine etc. as well as butterfly valves, gate valves, ball valves, and all kinds of electrical panels.
DSSD is an experience EPC supplier for hydropower plant and served for more than 500 hydropower plants and our engineers have more than 30 years' experience.
ONE STOP PURCHASE FROM WATER TO WIRE DESIGN TO POWER
