70mw 1000rpm Kaplan Turbine Generator For Hydro Power Plant

Kaplan Hydro Generator Turbina Kaplan Kaplan Turbine Generator Kaplan Propeller

1. Brief Introduction

Kaplan Turbine Propeller Turbine

Kaplan turbine is a kind of turbine suit to low water head 3-45 meters, and with certain big flow, normally divided into fixed blades and adjustable blades turbine. Main components including: runner, draft cone, water chamber, guide vane, bearing, and main shaft. The spiral case could be steel or concrete. The runner diameter we can manufacture is from 80cm to 4meters, with rated output 50Kw to 20Mw.

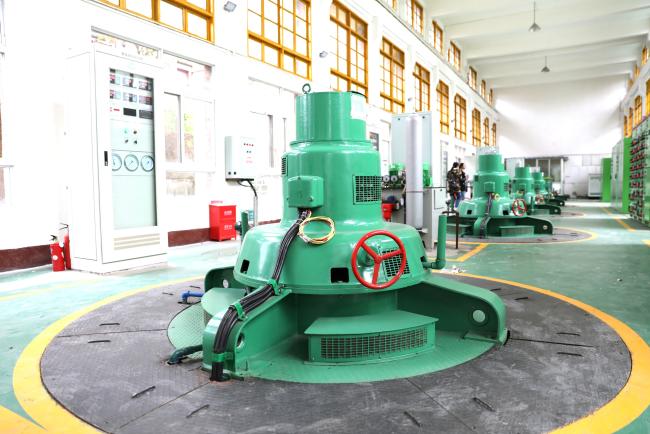

Turbine units normally be vertical shaft arrangement. Generator equipped with same or different shaft, with Anyway, they will share the same rotating speed. If specially required, a speed increase gear could be equipped between turbine and generator in order to smaller the generator size.

1,Suitable water head : 3-45m

2, Output scope : 100Kw -70Mw

3, Runner diameter : 80cm -400cm

4,Runner material : stainless steel

5, Arrangement type : Horizontal or Vertical

2. Product Paramenters

3. Application

4. Our advantages

1).DSSD has senior engineering and technical experts, professional hydro-generator design team and installation team

2).Provide complete proposal for hydro power plant from water to wire

3).Abundant foreign power plant project implementation experience

4).Design and manufacture of hydro power generator with voltage 400V, 3.3KV, 6.3KV, or 10.5KV AC three phase

5).More than 20years of industry experience, install commissioning more than 100 equipment each year

6).Power generation equipment has been provided for more than 500 power stations at home and abroad

Friendly reminder: The price of this product is not the actual price, because our products are non-standard customized, please contact customer service to provide the water head and flow rate, select the model on-site quotation, and then place the order. Welcome to visit, thank you!
