Francis Water Turbine Generator 1000kw Hydro Power Plant Equipment
Price:
20000~300000 USD per set
MOQ:
1set
Delivery Time:
3-12months
Brand:
DSSD
Product Description
Water Turbina Generator 1000kw Hydro Power Plant Equipment Francis Turbine

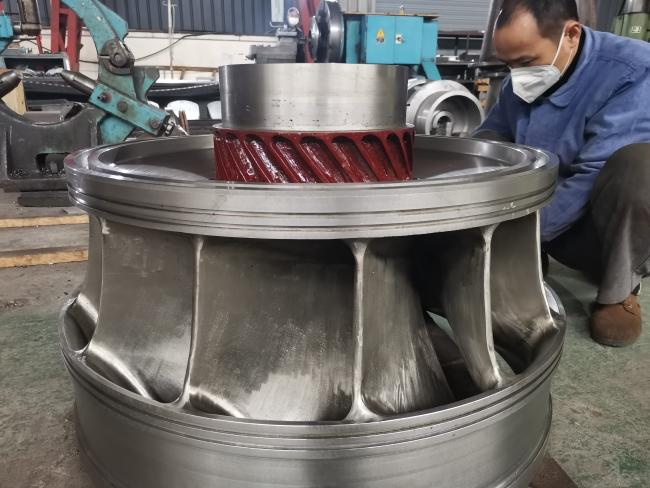

Francis turbine
It is a kind of counterattack turbine. Francis turbine applies to a wide range of water head.
Specifications of Francis Turbine
| Power Range | 100kw~20mw |
| Water Head | 10m~300m |
| Frequency | 50HZ/60HZ |
| Rated Voltage | 400V 800V 6.3KV 10.5KV |
| Layout Pattern | Horizontal or Vertical |
| Warranty | 1 year |
| Lifespan | 30~50 years |
| Blade Material | Stainless steel or Carbon steel |
The hydro turbine belongs to custom-made. If you want to inquiry for your project, you need prepare the following parameters:
1.Design head: ___m
2.Design flow: ___m³/s
3.Frequency: 50Hz or 60Hz?
4. Unit Capacity: ___KW;How many kw each unit? How many units?
