T - Slot Flat Inspection 400x400 Cast Iron Bed Plates Grade 1

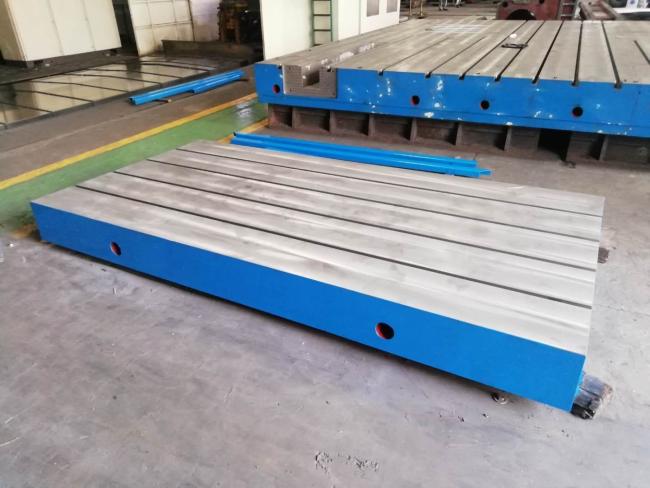

Cast Iron T-Slot Flat Bed Inspection Plate
The appearance of the cast iron platform is basically a box type. It consists of three parts: working surface, side wall and rib plate. Each part is made by one casting. The thickness of the work surface is the most critical, not only to ensure that the effect is not too thick, but also the price is high, but also the surrounding and ribs. The circumference plays a supporting role in use. The thickness and height are closely related to the platform support ability. For the stretching effect, the height and thickness of the reinforcing ribs should also be designed according to the bearing requirements. The height of the reinforcing ribs is usually half gluten, full ribs and flat ribs.
Standard: GB/T22095-2008
Specification: 200x200-3000x8000mm or customize
Surface: flat (accessories are available according to your requirement, like V, T, straight-shaped slots and tapped holes, long
holes, grid lines, etc)
Hardness of the working surface: HB160-240
Surface treatment: hand-scraped, finish-milling or ground finish
Foundry process: sand casting or centrifugal casting
Molding type: resin sand molding
Painting: primer and face paint
Surface coating: pickling oil and plastic-lined or covered with anticorrosion paint
Surface flatness: Master, Working, Reference
Precision grade: 0-3
Working temperature: (20±5)℃
Packaging: plywood box
Precision: According to the national standards measurement examination regulations execution,
respectively is 1,2,3, fine polish.
| Specification (mm) | Flatness tolerance (um) | |||
| Grade 1 | Grade2 | Grade 3 | Finihs plane | |
| 400x400 | 12 | 24 | ||
| 600x400 | 14 | 28 | ||
| 800x500 | 16 | 32 | 80 | |
| 900x600 | 16 | 32 | 80 | |
| 1000x750 | 18 | 36 | 90 | |
| 1000x1000 | 20 | 39 | 96 | |
| 1500x1000 | 25 | 48 | 120 | |
| 2000x1000 | 26 | 52 | 129 | |
| 2000x1500 | 56 | 140 | ||
| 2000x2000 | 60 | 152 | 230 | |
| 2500x1500 | 68 | 168 | 248 | |
| 3000x1000 | 174 | 248 | ||
| 3000x2000 | 184 | 275 | ||
| 3000x3000 | 210 | 300 | ||
| 4000x1000 | 210 | 300 | ||
| 4000x2000 | 219 | 310 | ||
| 4000x3000 | 240 | 360 | ||
| 5000x2000 | 255 | 375 | ||
| 5000x3000 | 287 | 420 | ||
| 6000x2000 | 293 | 430 | ||
| 6000x3000 | 308 | 460 | ||
| 8000x2000 | 370 | 520 | ||
| 8000x3000 | 382 | 570 | ||
