Professional Belt Type Food Sorting Machine For Dehydrated Vegetables / Fruits
Belt Color Sorter Machine Manufacturer for Dehydrated Vegetables
Belt type color sorter machine can be divided into double track color separator and single track color separator. Belt color sorter is suitable for applications in food processing companies of nuts, seafood, fresh cut vegetables, dried fruits, dried fruits, fresh fruits, freeze-dried fruits and vegetables.
Technical Parameters
| Model | BCS640B | BCS1280B | BCS1600B |
| Output(t/h) | 1.2-6 | 2.5-12 | 3.2-15 |
| Carryover (bad: good) | ≥15:1 | ≥15:1 | ≥15:1 |
| Accuracy (%) | ≥99 | ≥99 | ≥99 |
| Voltage (V/Hz) | 220V/50HZ | 220V/50HZ | 220V/50HZ |
| Power (Kw) | 1.0-1.3 | 1.6-2.6 | 2.0-3.3 |
| Air pressure (Mpa) | 0.6-1.0 | 0.6-1.0 | 0.6-1.0 |
| Consumption (L/min) | ＜1024 | ＜2048 | ＜2560 |
| Weight (Kg) | 1000 | 1360 | 1900 |
| Dimensions (mm) | 3108*993*1680 | 3108*1986*1680 | 3108*2306*1680 |
Examples of Sorting

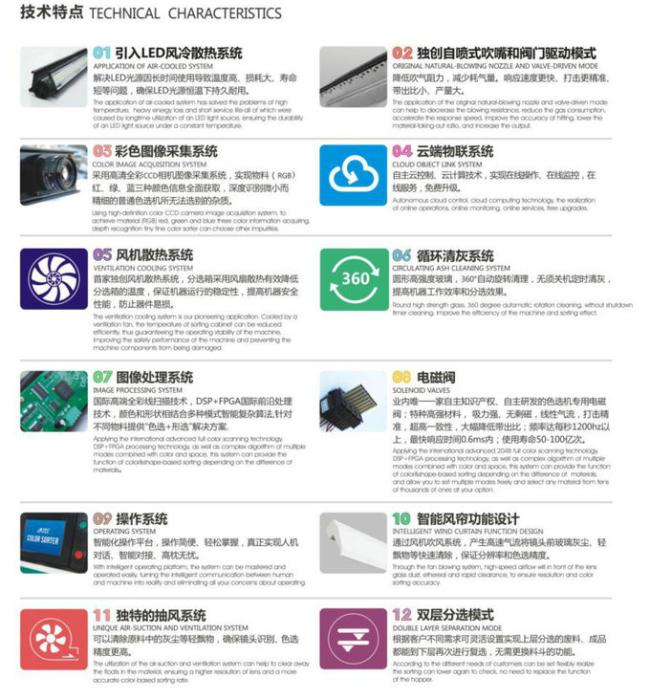

Features and Function
A bucket with a discharging system, no need to replace the hopper can be arranged flexibly. Scrap, finished all can check scheme.
Automatic fault protection and notification functions can stop the equipment and inform the operator of the danger before it is damaged, more effectively.
The sorting machine can be equipped with imported dedicated solenoid valves or self-made high frequency solenoid valves.
1. The broad scope of application
* Belt color sorter meet chute color sorter color sorting outside the range, the buoyant, irregular, fragile materials such as color selection to provide satisfactory solutions to address these special materials due to their own gravity heavy falling speed of light can not reach color sorting requirements problems conveyor belt speeds up, <4m / s, to effectively meet the requirements for color selection effect and yield requirements.
* 5088 full-color line scan technology, a combination of color and spatial algorithms for different materials to provide "color selection + shape selected" function, multi-mode set free, 10,000 kinds of materials arbitrarily selected.
2. A powerful color selection function
* According to the characteristics and needs of the material, optional special shatterproof material fight, reduce fragmentation rate.
* Optional import and homemade high-end professional solenoid valve solenoid valve, blow accurate, effective life of 50-100 million times.
* Double-track structure - for hetero higher, multi-colored material, without replacing the hopper can be flexibly set - waste, finished Jieneng multiplexing alternatives, sorted and disposable materials required.
* International high-end industry-specific lenses, each sorting box with up-down means are mirrors, choose a higher net rate.

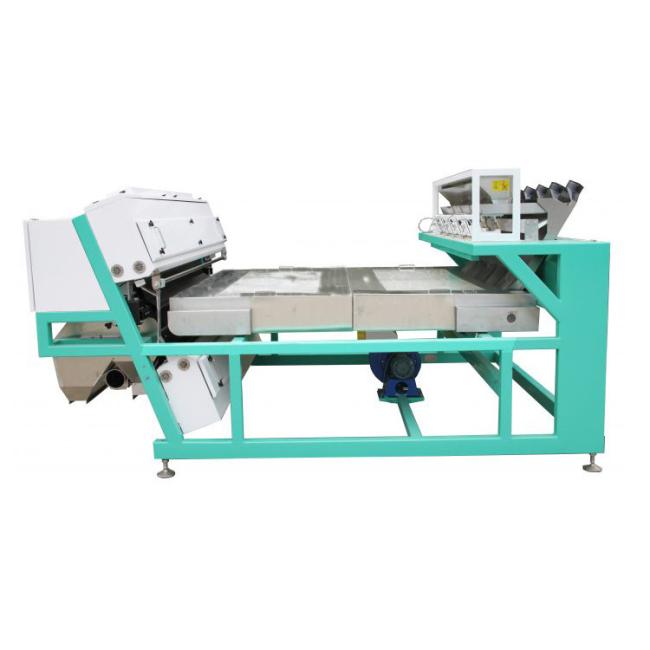

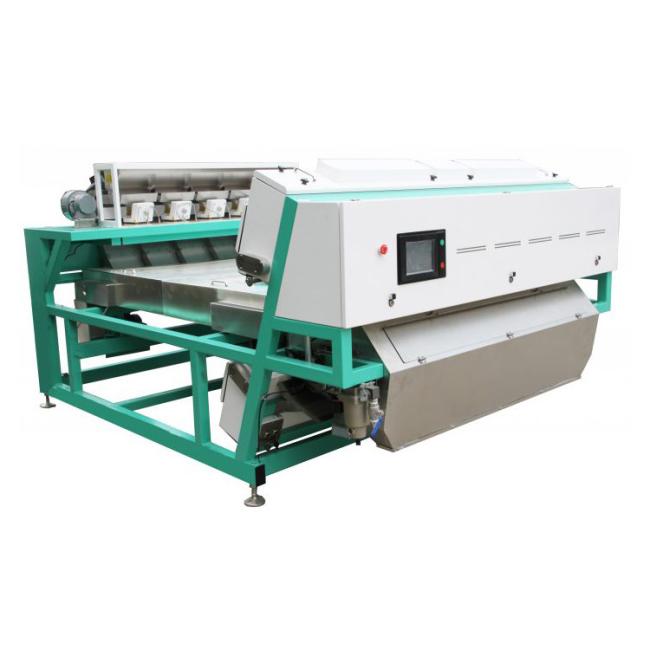

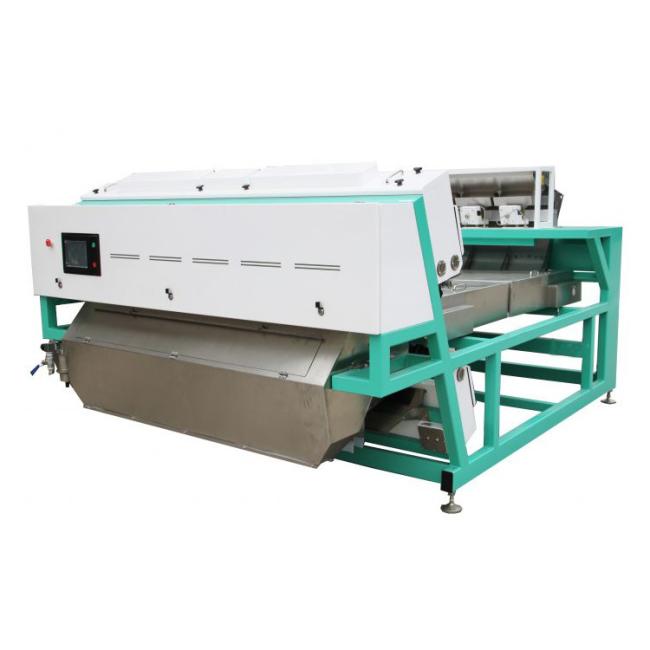

Products Show
