CCD Camera Rice Color Sorter Machine , Dust Proof Optical Color Sorter
CCD Camera Rice Color Sorter Machine
Product Description
CCD Camera Rice Color Sorter Machine is based on differences in the optical properties of rice. It uses photoelectric technology to scan the particles of the rice and sort it automatically, so as to improve its quality and remove any defect or contamination.
Our CCD camera color sorter machine is specialized for the rice processing industry, and the result of R&D on the use of sorting equipment.
The accuracy of our rice color sorter machine can reach 99.99%, with a wide range of capacities, from approximately 0.6-1T/h the smallest, to 6-10T/h the biggest size.
Technical parameters
| Model | 6SXZ-68 | 6SXZ-136 | 6SXZ-272 | 6SXZ-408 | 6SXZ-612 | 6SXZ-680 |
| Output(kg/h) | <500 | <1000 | <2000 | <3000 | <4000 | <5000 |
| Sorting Accuracy(%) | ≥99 | ≥99 | ≥99 | ≥99 | ≥99 | ≥99 |
| Voltage (v/Hz) | 220V 50HZ | 220V 50HZ | 220V 50HZ | 220V 50HZ | 220V 50HZ | 220V 50HZ |
| Power Supply(Kw) | 1.0-1.3 | 1.4-1.8 | 2.5-2.9 | 4.8-5.2 | 4.8-5.2 | 8.5-10.9 |
| Pressure(Mpa) | 0.4-0.6 | 0.5-0.7 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| Air Consumption(L/min) | <1000 | <1800 | <3200 | <4800 | <4800 | <6100 |
| Weight(Kg) | 260 | 440 | 820 | 1180 | 1620 | 2200 |
| Dimension(mm) | 950*1510*1428 | 1290*1510*1770 | 2010*1530*2100 | 2680*1530*2100 | 3710*1530*2100 | 4200*1530*2250 |
Examples of Sorting

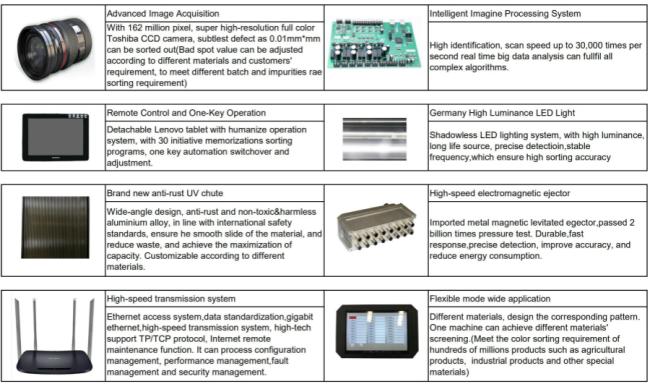

Product Advantages
1. Linear array CCD adopt full-color sorting technique, high resolution for full color, High speed sorting recognition is more exquisite.
2. Blend in Shape recognition technique,more precise to make a grade to the rice and grain.
3. Visible full color light spectral distribution, free to adjust the spectral region
4. It can be suitable to sort a variety of grains, industrial products, other particles and sheet material through choose different sloping chute.
5. High resolution imaging technology,take the pictures to collect the images of sorted products,it can be defined sorting for thousands of materials and 100,000 colors, truly achieve wide use color sorting.
6. Each group can independently and simultaneously process multi-tasking and multi-mode color sorting,multi, anti-election and multi-color simultaneously.
7. High Brightness,long-life LED light can satisfy to different products and color,and needn't to change LED light.
8. Powerful software platform, easy to lear and know, simple to operate.

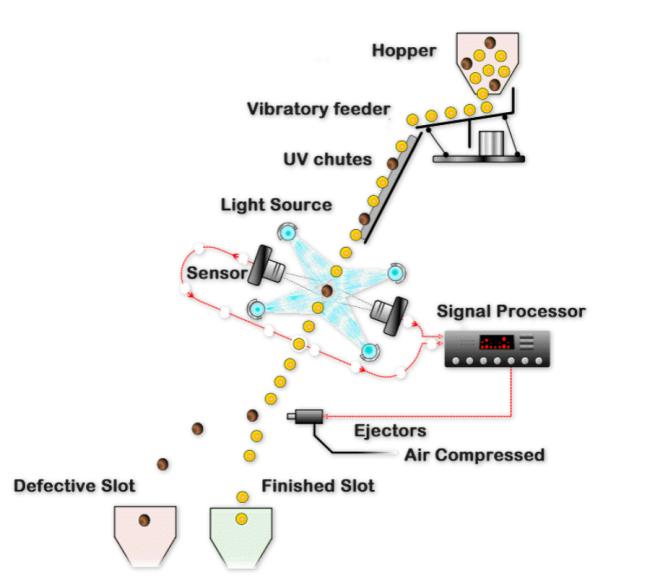

Working Principle
1. Raw material are put into the machine from its feeding hopper on the top.
2. Vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate .
3. Under the effect of light source, CCD sensor receives compound light from materials being sorted.
4. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.
