One Key Intelligent Operation CCD Color Sorter For Rice Processing Industry
CCD Rice Color Sorter
Product Description
We are a China-based CCD rice color sorter manufacturer. Our rice color sorter, as its name suggests, is a type of CCD color sorter used for sorting rice for food industry.
Product Details for Different Chutes
| Model | SIZE(MM) | POWER(KW) | Output (T/H) (take ≤2% polished round-grained rice as an example) |
Sorting accuracy (%) |
Micro yellow recognition accuracy(%) |
Chalky recognition accuracy(%) |
Ratio of color separation mass(%) |
WEIGHT(KG) |
| 6SXM-126S | 1244*1504*2090 | 1.5 | 2.0-6.0 | ≥99.99 | 98 | 98 | >80:1 | 614 |
| 6SXM-189S | 1558*1504*2090 | 2.2 | 4.0-9.0 | ≥99.99 | 98 | 98 | >80:1 | 789 |
| 6SXM-252S | 1872*1504*2090 | 2.9 | 5.0-12.0 | ≥99.99 | 98 | 98 | >80:1 | 834 |
| 6SXM-315S | 2186*1504*2090 | 3.6 | 6.0-15.0 | ≥99.99 | 98 | 98 | >80:1 | 1052 |
| 6SXM-378S | 2500*1504*2090 | 4.3 | 7.0-18.0 | ≥99.99 | 98 | 98 | >80:1 | 1265 |
| 6SXM-441S | 2814*1504*2090 | 4.9 | 9.0-21.0 | ≥99.99 | 98 | 98 | >80:1 | 1457 |
| 6SXM-504S | 3128*1504*2090 | 5.6 | 10.0-24.0 | ≥99.99 | 98 | 98 | >80:1 | 1637 |
| 6SXM-630S | 3756*1504*2090 | 7.0 | 11.0-30.0 | ≥99.99 | 98 | 98 | >80:1 | 2018 |
Products Advantage
Cloud Interconnection System
Thanks to cloud service technical platform, remote control, operation, matainence, software
upgrade can be achieved and it can detect and solve the LED light, electronic,mechanical and
adjustment problems.It also can provide real-time online tracking service for the machine operation monitoring,data acquisition and online instruction.
One Key Intelligent Operation System
The users can set the area of the material color, shape, size and defect by themselves and confirm the rejected material,so the machine can automatic set the sorting solution of the material according to the independent calculating, intelligent recognition and intelligent sorting principles with one key intelligent control technology.
Intelligent Visual Image Capture System
It can realize the visual dynamic image capture system by adopting the high resolution full color CCD sensor and beg eye low distortion lens.
Intelligent LED Light Control System
It can adjust the brightness of the LED automatically according to the material sorting requirements and environment changing due to advanced digital stepless automatic LED light adjustment technology. The best sorting performance will be achieved.
Examples of Sorting

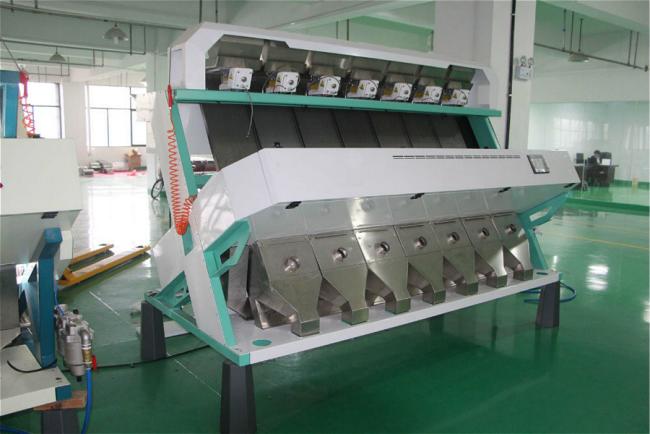

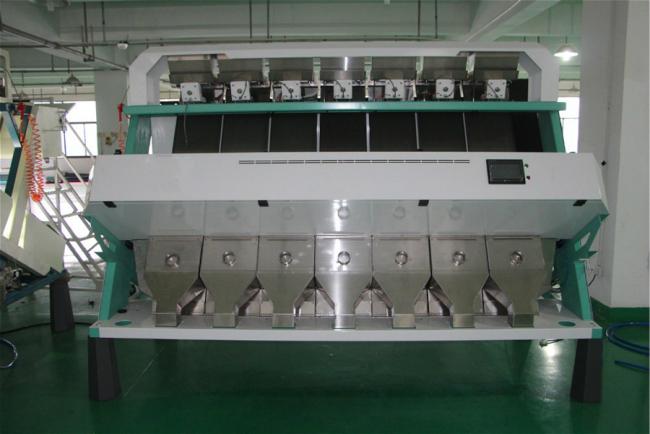

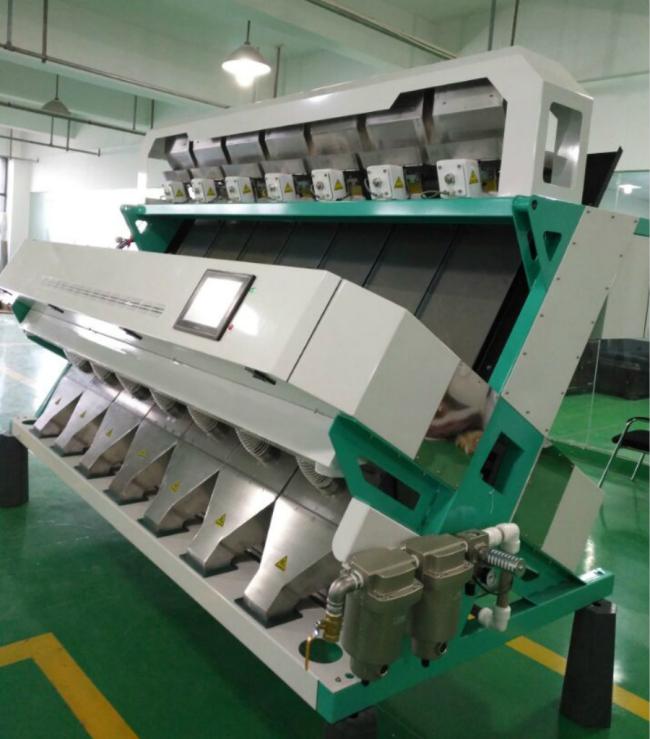

Product Show
