User Friendly Rice Color Sorter Machine , Intelligent Grain Colour Sorter
Intelligent Rice Color Sorter Machine
Product Description
* High-quality distinction system
Adopting HD full color 5000+ PX CCD image sensor that reach the aim of distinguishing 0.1mm are of object.
* Image processing system
Adopting the chips of FPGA and DSP from companies of Alter and TI.
The forth generation processing technology of EPGA which sharply promote the processing speed.
* Adjustable light source technology
The overall upgrade LED source could adjust the power of light source according to those different materials.Ensure the accurate obtaining of materials’ information;LED lighting system with radiating function makes it in longer using,lower energy consumption and better performance.
* Anti-jamming system
High-performance A.J. Signal transmission design make it applicable to many environments.
* Cleaning system
Special cleaning and dust absorption device provide a better environment.
* Original creative high frequency solenoid valve
With the national patent certification,operating reached 12 billion times make the solenoid valve is not a quick-wear part anymore;respond rapidly,lower air-consumption.
* Intelligence operation surface
Overall upgrade touch screen proved the zooming and sliding function,easy to test and operate,multiple sorting modes make you operating easier.
Parameter Table
| Model | IA7 |
| Throughput(T/H) | 8.0-12.0 |
| Voltage(V) | 220V(50-60HZ) |
| Power(KW) | 3.4 |
| Weight/(KG) | 1600 |
| Dimension(L*W*H/mm) | 2757*1544*1870 |
| Sorting accuracy(%) | ≥99.99 |
| Rejection rate(%) | ≥8:1 |
| Air consumption(L/min) | 2000-4200 |
| Notes | Subject to different impurities of raw materials,parameters listed in table will change to some extent |
Sorting Samples
Sorting Result

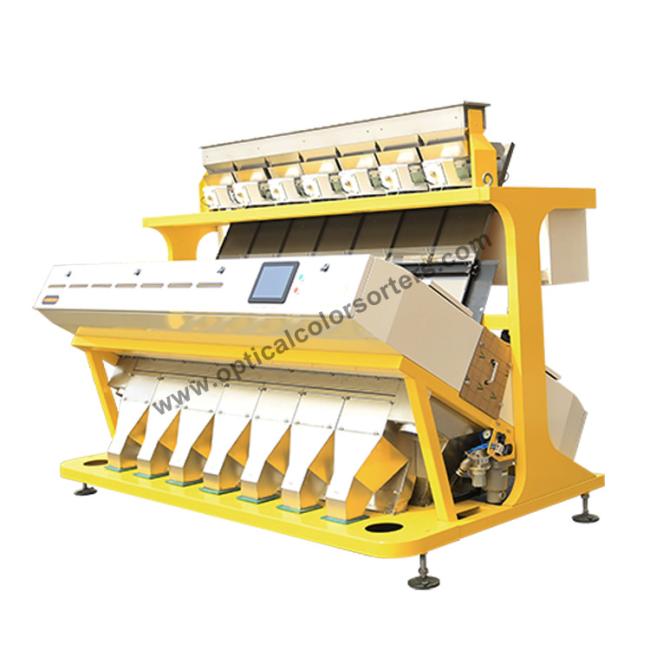

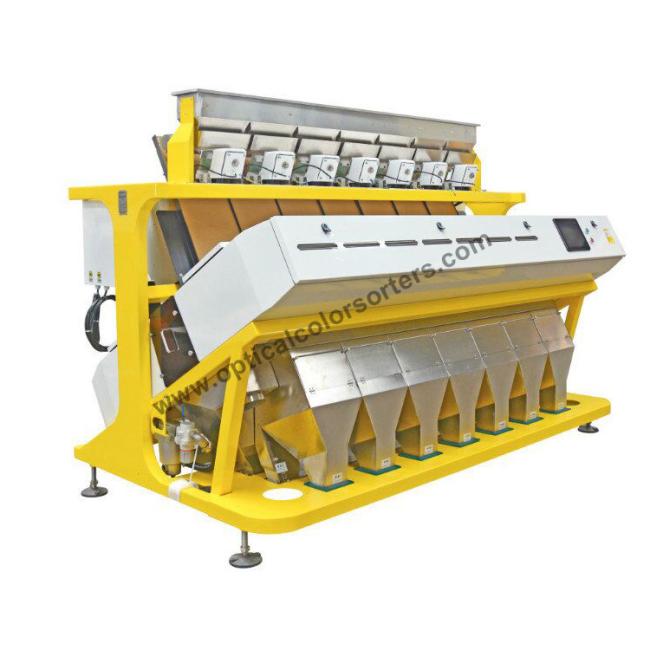

Intelligent Rice Color Sorter Machine Show
