Smart Rice Color Sorter With High Brightness LED Lighting Source
Smart Rice Color Sorter
Product Description
* High resolution 4096 pixel CCD camera,high reliability and long life LED light source;
* Efficient and stable software system,intelligent algorithm,user friendly interface;
* Better sorting accuracy,lower carryover,and bigger production capacity;
* SOC platform to realize stable,reliable, ultra-fast mass data processing;
* Expert sorting solution realizes one key debugging;
* Remote debugging, diagnosing and maintenance. four core technologies to ensure your operations;
* Intelligent ejection system,higher reliability,tiny color difference;
* Composite light path technique,visualization analysis,3d recognition technology;
* Unique impurity control technology,intelligent dust auto-cleaning system,ccd camera,superior resolution technology.
Parameter Table
| Model | MS300 | MS500 | MS700 |
| Throughput(T/H) | 1.0-3.0 | 2.5-7.0 | 4.5-10.0 |
| Voltage(V) | 110-250V(50-60HZ) | ||
| Power(KW) | 1.8 | 2.6 | 3.5 |
| Weight/(KG) | 885 | 1275 | 1665 |
| Dimension(L*W*H/mm) | 1174*1658*2038 | 2402*1658*2038 | 3030*1658*2038 |
| Sorting accuracy(%) | ≥99 | ||
| Rejection rate(%) | ≥10:1 | ||
| Air consumption(L/min) | 800-1600 | 1300-2200 | 1800-3600 |
| Notes | Subject to different impurities of raw materials,parameters listed in table will change to some extent | ||
Sorting Result

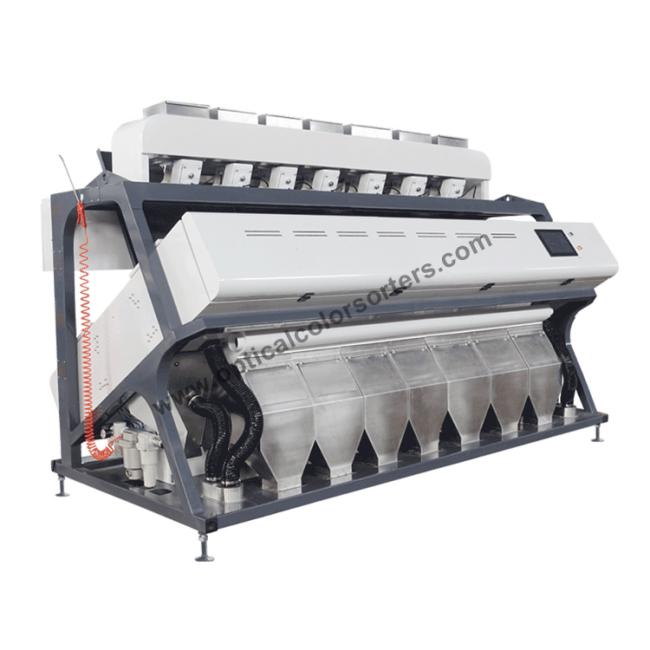

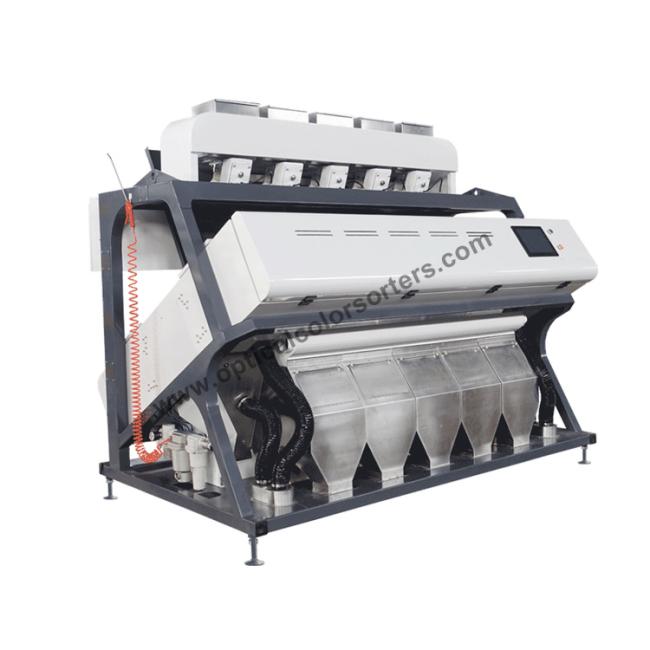

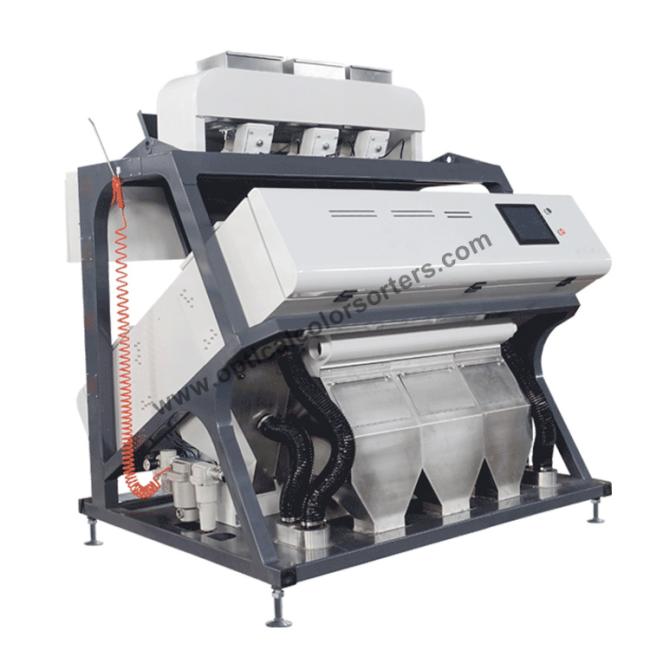

Product Show
