Professional CCD Plastic Color Sorter With Automatic Dust Removal System
Price:
Negotiable
MOQ:
1set
Delivery Time:
15 days after we receive your deposit
Brand:
BANGHAO
Product Description

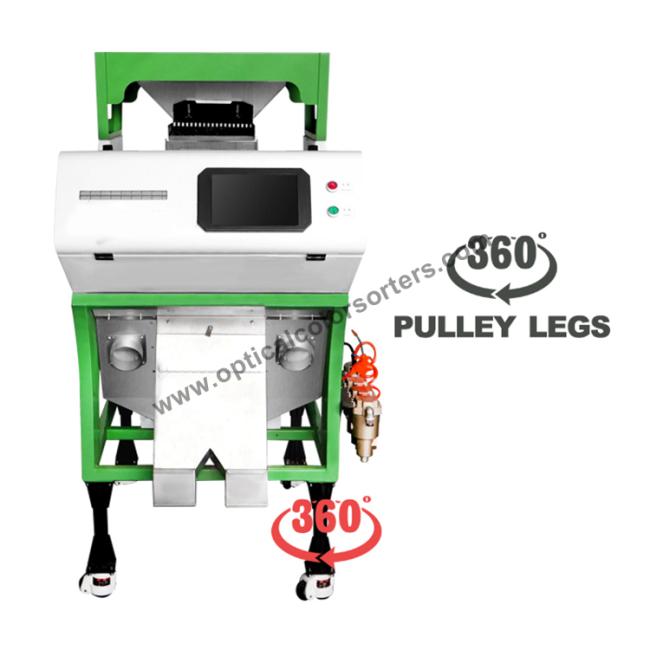

CCD Plastic Color Sorter
Product Description
We developed the first CCD plastic color sorter machine and NIR sorter in China and sell 7000 units plastic color sorting machines pear year now. We focus the sorting technology for plastic recycling as below: NIR PET flake material sorting-separate the PVC/ PP/ PE/ ABS/ Rubber from PET flake; PET flake color sorter- separate the PET flake by color.
Technical Parameters
| Model | 6SXZ-68L | 6SXZ-68L | 6SXZ-136L | 6SXZ-272L |
| Output | <600kg/h | <1000kg/h | <1200kg/h | <2400kg/h |
| Carry over Rate(Bad:Good) | 12.5:1 | 12.5:1 | 12.5:1 | 12.5:1 |
| Sorting Accuracy | ≥99.9% | ≥99.9% | ≥99.9% | ≥99.9% |
| Voltage(V/Hz) | 220V 50HZ | 220V 50HZ | 220V 50HZ | 220V 50HZ |
| Power Supply(Kw) | 0.7-1.0 | 1.5-2.0 | 1.5-1.8 | 2.5-3.0 |
| Pressure(Mpa) | 0.4-0.6 | 0.4-0.6 | 0.5-0.7 | 0.6-0.8 |
| Air Consumption(L/min) | <500 | <600 | <1000 | <2000 |
| Weight | 310kg | 550kg | 490kg | 920kg |
| Dimension | 2051*1240*1762mm | 3200*2020*810mm | 2037*1540*1550mm | 1922*2430*1349mm |
Examples of Sorting

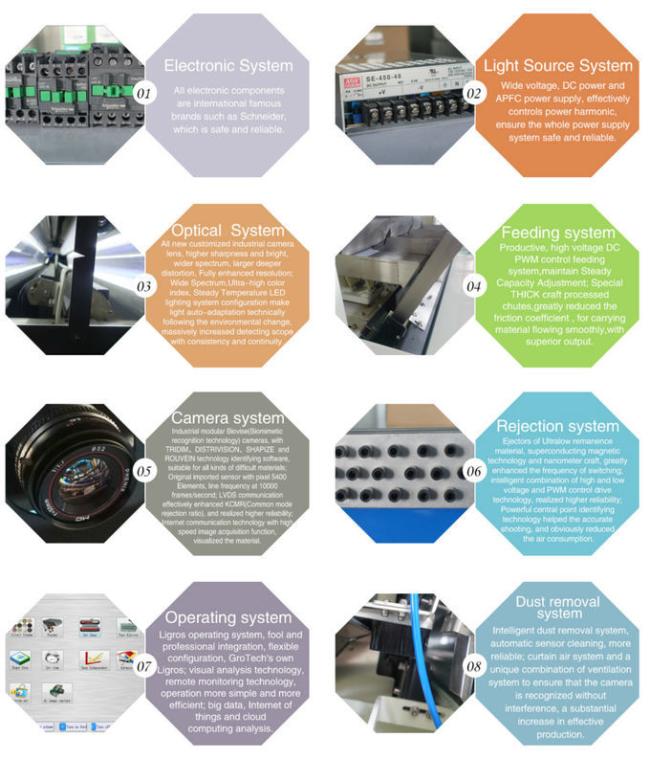

Product Advantages

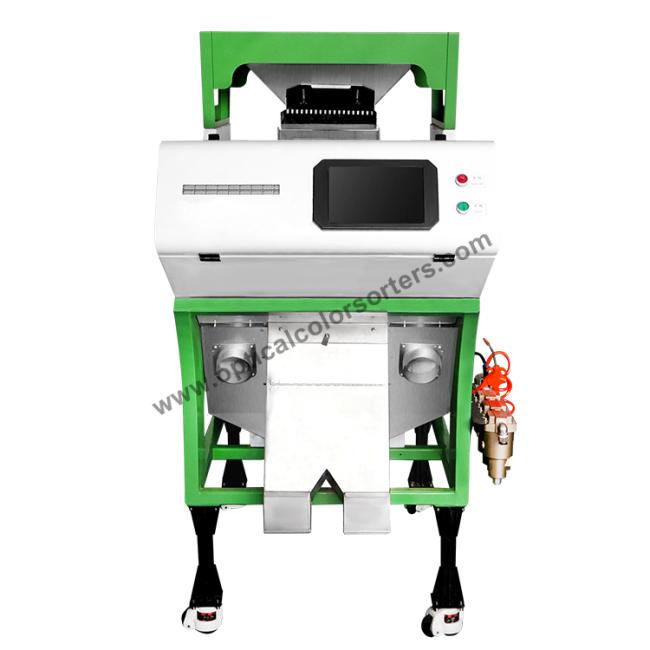

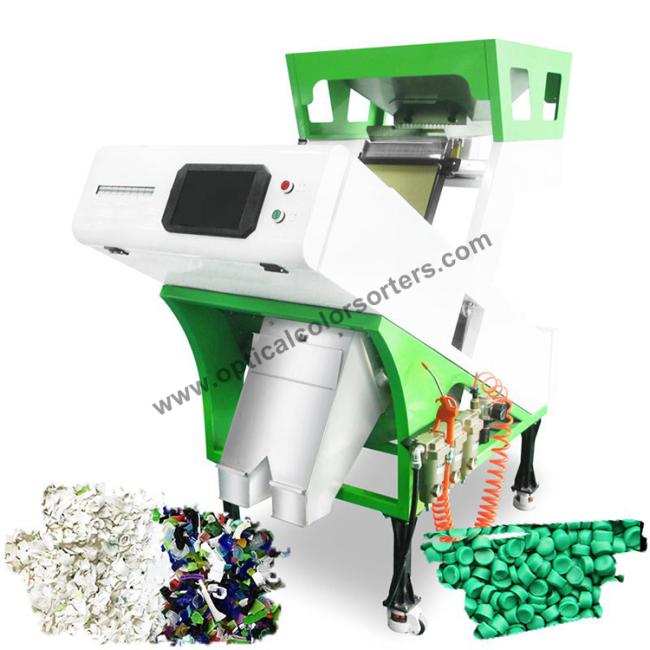

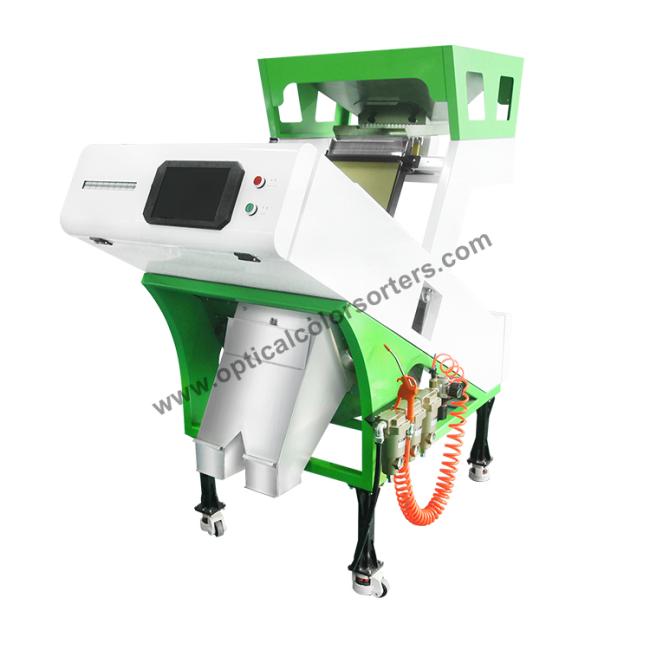

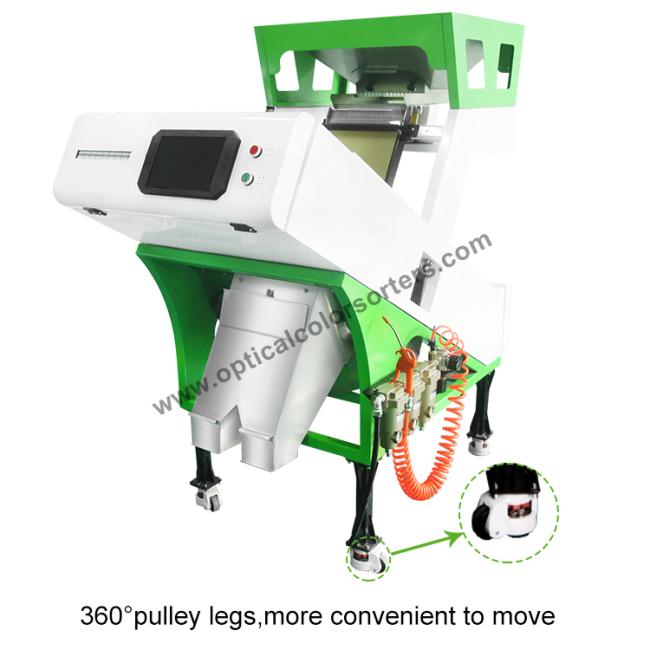

Products Show
