Automatic Coffee Bean Color Sorter With Smart LED Light Control System
Color Sorting Coffee Beans
Product Description
CCD automatic coffee bean color sorters are ideal for color sorting Arabica coffee beans, removing a variety of defects to increase product quality and safety.By incorporating the latest technological advances, defects such as sticks, stones, odd colors beans and other foreign seeds can be removed effectively and efficiently.
For major defects, we have 100% efficiency to eliminate severely defective or fully dyed grains (black and red)
Technical Parameters
| Model | Capacity(bad:good) | Accuracy(%) | Power(v/Hz) | Voltage(Kw) | Weight(Kg) | Dimension(mm) |
| RC64 | ＞10:1 | ≥99.99% | AC220V/50HZ | 0.3~0.5 | 240 | 974.2*1550.9*1399 |
| RC128 | ＞10:1 | ≥99.99% | AC220V/50HZ | 0.3~0. 5 | 500 | 1239*1705.3*1827.9 |
| RC192 | ＞10:1 | ≥99.99% | AC220V/50HZ | 0.7-1.1 | 800 | 1554*1707*1827.9 |
| RC256 | ＞10:1 | ≥99.99% | AC220V/50HZ | 0.7-1.1 | 1000 | 1869*1707*1827.9 |
| RC320 | ＞10:1 | ≥99.99% | AC220V/50HZ | 0.7~1.1 | 1100 | 2184*1707*1827.9 |
| RC384 | ＞10:1 | ≥99.99% | AC220V/50HZ | 1.1~1.9 | 1350 | 2499.2*1707*1827.9 |
| RC448 | ＞10:1 | ≥99.99% | AC220V/50HZ | 1.1~1.9 | 1350 | 2814.2*1706.7*1839.9 |
| RC512 | ＞10:1 | ≥99.99% | AC220V/50HZ | 1.3~2.2 | 1500 | 3129*1709.9*1827.9 |
| RC640 | ＞10:1 | ≥99.99% | AC220V/50HZ | 1.4~2.3 | 1750 | 3759.2*1709.9*1827.9 |
| RC768 | ＞10:1 | ≥99.99% | AC220V/50HZ | 1.4-2.3 | 1900 | 4389.2*1709.9*1827.9 |
Remark: We have many models from 1 chute to 16 chutes for option to meet any different production capacity.The exact production capacity may change due to different impurity level.

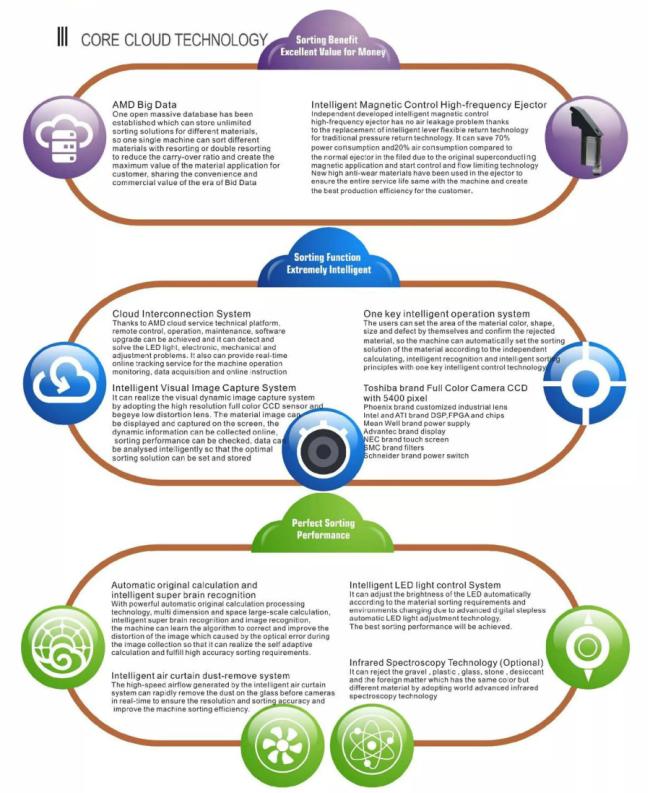

Function & Features
Examples of Sorting

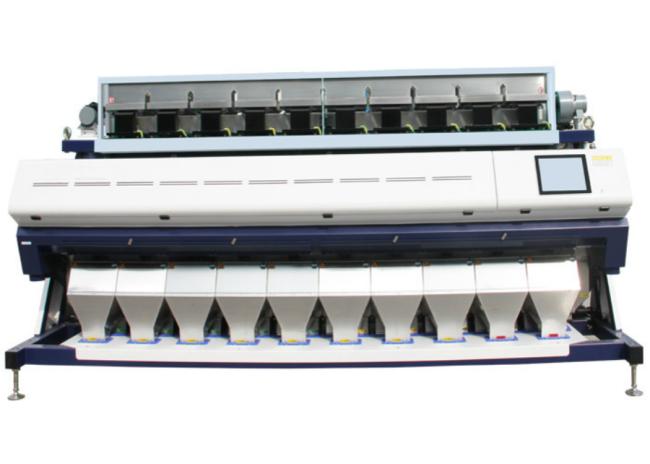

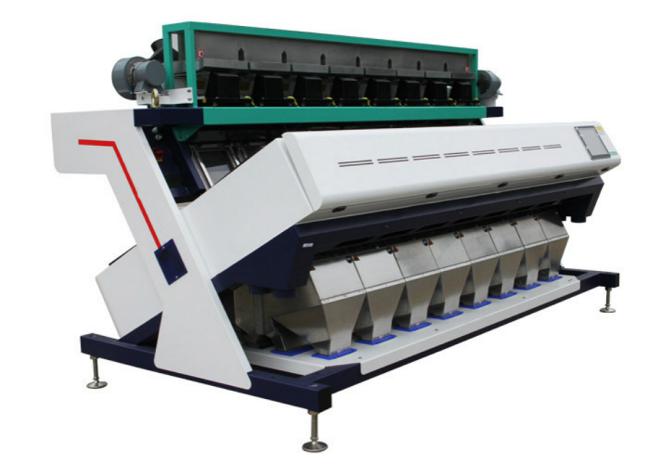

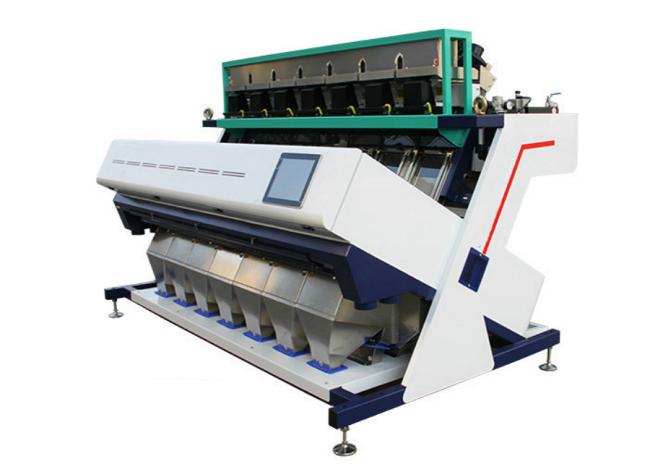

Products Show
