Stainless Steel Nut Sorting Machine High Accuracy With Remote Control System
Nuts Color Sorting Machine
Product Description

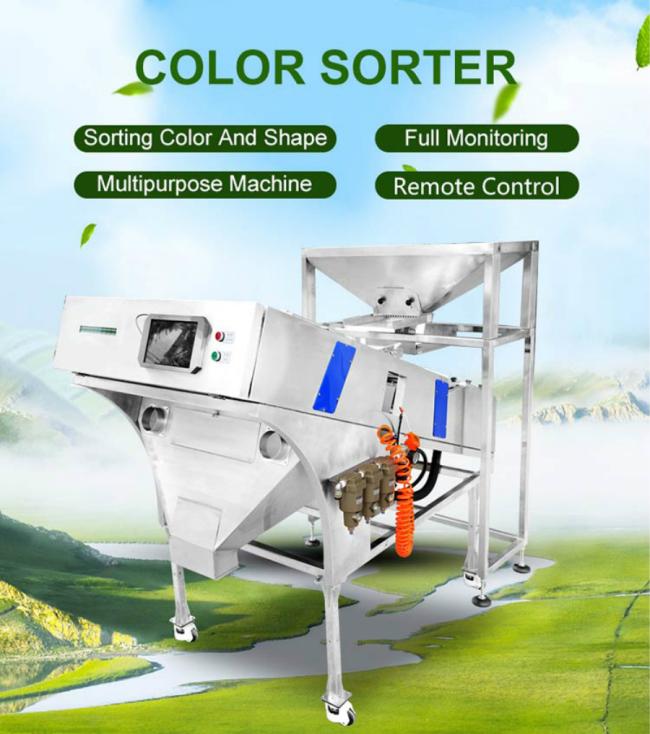

Stainless steel nuts color sorting machine is made by 100% high quality stainless steel. It has a large capacity, precise sorting, excellent performance and easy sorting with subtle defects. Highly compatible for all types of nuts, these sorting machines have the excellent advantage of multitasking function, which makes them capable of processing shape, color and grade sorting in one time. Full color CCD camera and lens in this machine is capable of recognizing all the minimum defects in the nuts stock.
Since our establishment, we endeavor hard to manufacture, export and supply nuts color sorting machine to our precious clients. The provided machine is designed and manufacture by our dexterous professionals using utmost quality components with the aid of advanced techniques in tandem with global industry standards. This machine is ideal for sorting colors of nuts. To suit the specific requirements of clients, we offer this nuts color sorter machine in several technical specifications at reasonable prices within committed time frame.
Technical Parameters
| Model | 6SXZ-68L | 6SXZ-68L | 6SXZ-136L | 6SXZ-272L |
| Output | <600kg/h | <1000kg/h | <1200kg/h | <2400kg/h |
| Carry over Rate(Bad:Good) | 12.5:1 | 12.5:1 | 12.5:1 | 12.5:1 |
| Sorting Accuracy | ≥99.9% | ≥99.9% | ≥99.9% | ≥99.9% |
| Voltage(V/Hz) | 220V 50HZ | 220V 50HZ | 220V 50HZ | 220V 50HZ |
| Power Supply(Kw) | 0.7-1.0 | 1.5-2.0 | 1.5-1.8 | 2.5-3.0 |
| Pressure(Mpa) | 0.4-0.6 | 0.4-0.6 | 0.5-0.7 | 0.6-0.8 |
| Air Consumption(L/min) | <500 | <600 | <1000 | <2000 |
| Weight | 310kg | 550kg | 490kg | 920kg |
| Dimension | 2051*1240*1762mm | 3200*2020*810mm | 2037*1540*1550mm | 1922*2430*1349mm |
Examples of Sorting

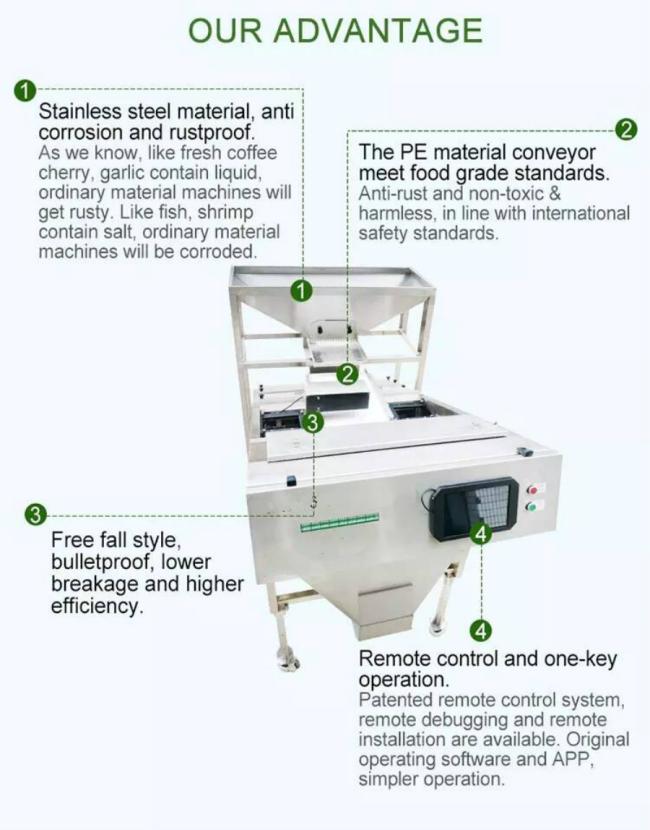

Product Advantages
* Stainless steel material, anti corrosion and rustproof
As we know, like fresh coffee cherry, garlic contain liquid,ordinary material machines will get rusty. Like fish, shrimp contain salt, ordinary material machines will be corroded.
* The PE material conveyor meet food grade standards
Anti-rust and non-toxic &harmless, in line with international safety standards.
* Free fall style
bulletproof, lower breakage and higher efficiency.
* Remote control and one-key operation
Patented remote control system,remote debugging and remote installation are available. Original operating software and APP,simpler operation.

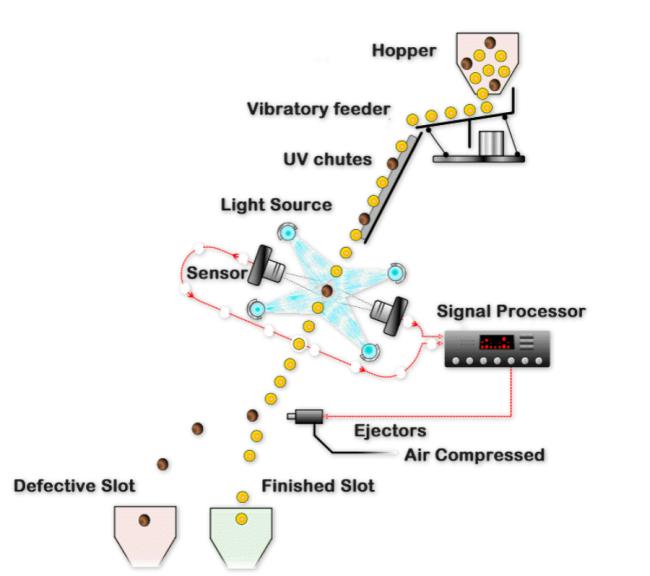

Working Principle
Color Sorter's working principle is according to the difference of the optical properties of the material, use photoelectric detection technology automatic sorting the heterochromatic granule from raw material. Colour sorters or color sorters (sometimes called optical sorters or digital sorters or electronic colour sorters ect.) are machines that are used on the production lines in bulk food processing and other industries. They separate items by their colours, detecting the colours of things that pass before them, and using mechanical or pneumatic ejection devices to divert items whose colours do not fall within the acceptable range or which are desired to form a separate group from the rest.

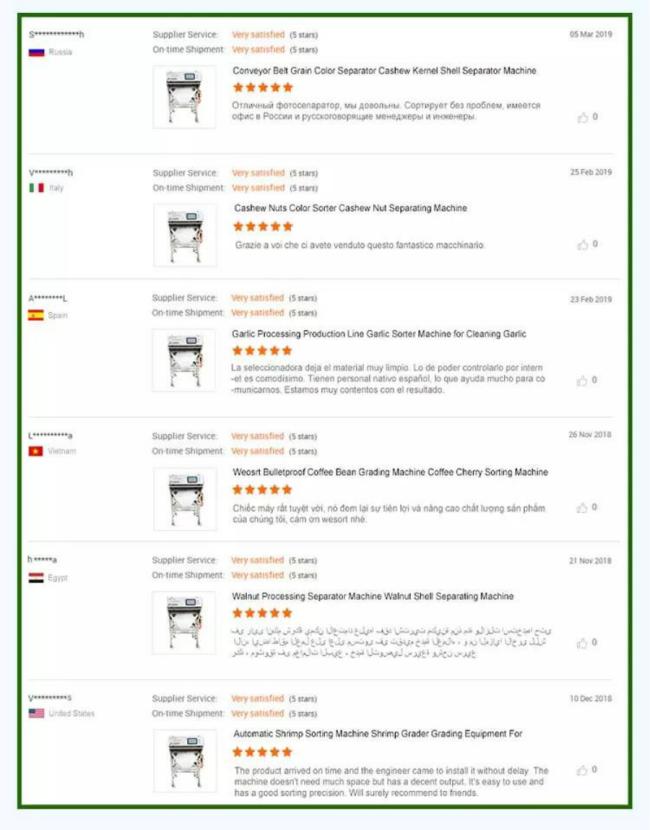

Customers Reviews
