Advanced Nuts Color Sorter , High Productivity Optical Color Sorter
Price:
Negotiable
MOQ:
1set
Delivery Time:
15 days after we receive your deposit
Brand:
BANGHAO
Product Description

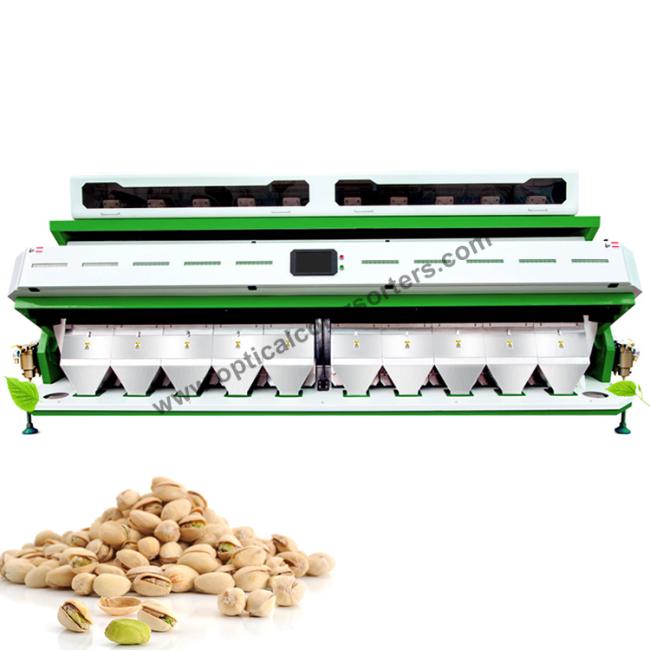

Pistachio Color Sorter
Product Description
Nuts sorting optimised for maximum productivity. Our advanced optical sorting technology delivers superior performance in removing the most challenging defects and foreign material from many types of nuts and dried fruit including peanuts, almonds, pistachios, walnuts, pecans, cashews, pine nuts, hazelnuts, macadamia, brazil nuts and raisins.
Technical Parameters
| Model | 6SXZ-68 | 6SXZ-136 | 6SXZ-272 | 6SXZ-408 | 6SXZ-612 | 6SXZ-680 |
| Output(t/h) | 0.6-1 | 1.2-2 | 2.4-5 | 4-7 | 6-10 | 8-16 |
| Carry over Rate(Bad:Good) | >12.5:1 | >12.5:1 | >12.5:1 | >12.5:1 | >12.5:1 | >12.5:1 |
| Sorting Accuracy | ≥99.99% | ≥99.99% | ≥99.99% | ≥99.99% | ≥99.99% | ≥99.99% |
| Voltage(V/Hz) | 220V 50HZ | 220V 50HZ | 220V 50HZ | 220V 50HZ | 220V 50HZ | 220V 50HZ |
| Power Supply(Kw) | 1.0-1.3 | 1.4-1.8 | 2.5-2.9 | 4.8-5.2 | 6.6-7.2 | 8.5-10.5 |
| Pressure(Mpa) | 0.4-0.6 | 0.5-0.7 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
| Air Consumption(L/min) | <1000 | <1800 | <3200 | <4800 | <5600 | <6100 |
| Weight | 260kg | 440kg | 820kg | 1180kg | 1620kg | 2200kg |
| Dimension | 950*1510*1428mm | 1290*1510*1770mm | 2010*1530*2100mm | 2680*1530*2100mm | 3710*1530*2100mm | 4200*1530*2250m |
Examples of Sorting

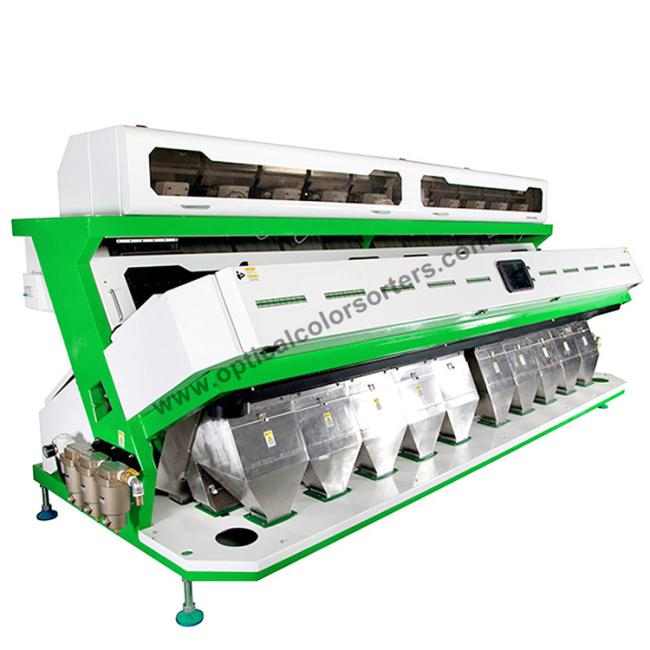

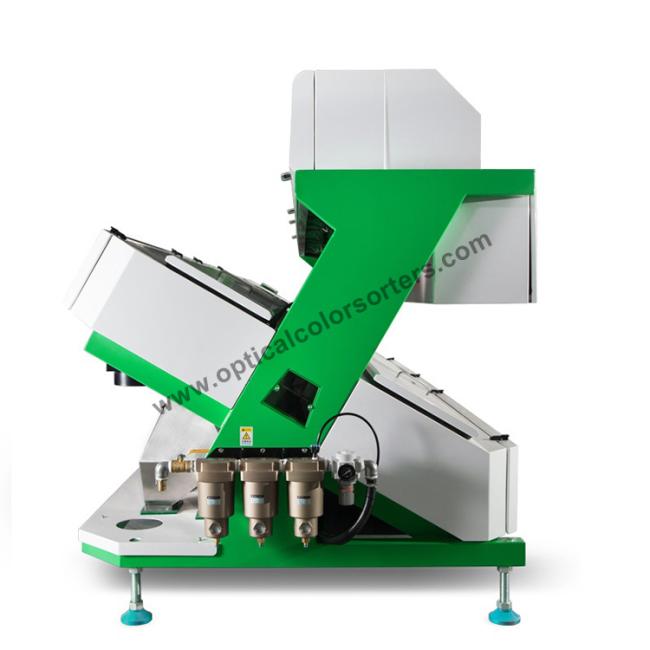

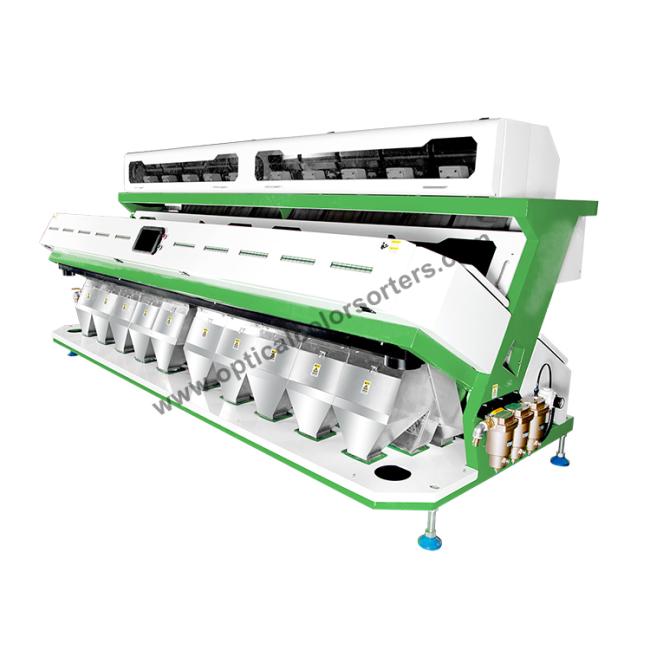

Product Show

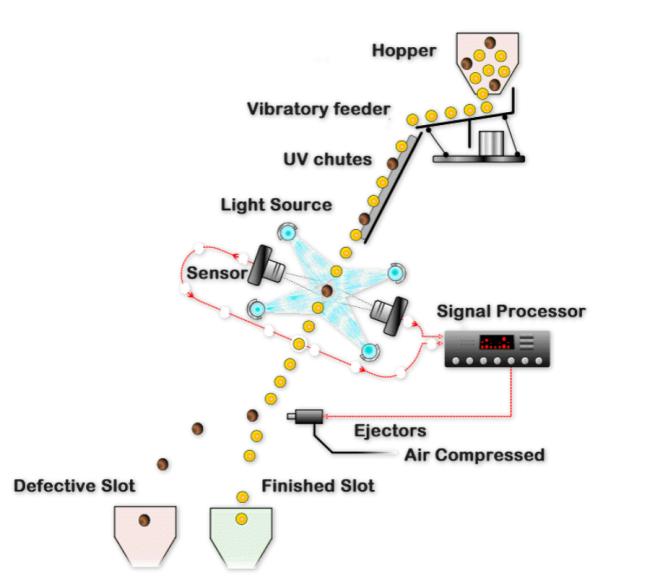

Working Principle
According to the difference in the color of the material, the equipment that automatically sorts the different-colored particles in the granular material.
