Salt Color Sorting Equipment High Speed With User Friendly Interface
Salt Color Sorting Machine
Product Description
SEA sorters are also successful in refined processes such as rock salt and sea salt.
Stainless steel salt color sorter is widely used for sorting sea salt, mountain salt, table salt, industrial salt, large particles of salt, powdered salt, etc.
Our salt color sorting machine detection system is able to detect minimum differences in color and shade, with an optical resolution of 0.1mm.
Light or dark grey impurities, such as anhydrite, or with light orange and brownish shade, such as sulfur or inert or organic parts, are perfectly detected and sorted with the highest efficiency.
The possibility to foresee a simultaneous reject resort allows to recover good product rejected during the sorting phase, due to the high operating speed.
Our sorters grants quality and hygiene safety when sorted salt is destined to food and non-food consumption.
Technical Parameters
| Model | MT1S | MT2S | MT3S | MT5S | MT7S | MT8S |
| Executing Unit | 64 | 128 | 192 | 320 | 448 | 512 |
| Throughout(t/h) | 0.5~3 | 1~4 | 2~6 | 5~10 | 9~17 | 11~20 |
| Voltage(V) | 110~250V (50~60Hz) |
110~250V (50~60Hz) |
110~250V (50~60Hz) |
110~250V (50~60Hz) |
110~250V (50~60Hz) |
110~250V (50~60Hz) |
| Power(kW) | 1 | 1.4 | 1.8 | 2.6 | 3.5 | 4 |
| Weight(kg) | 210 | 350 | 600 | 880 | 1150 | 1250 |
| Dimension(L*W*H/mm) | 960*1630*2050 | 1340*1630*2050 | 1610*1630*2050 | 2225*1630*2050 | 2980*1630*2050 | 3068*1630*2056 |
| Sorting accuracy(%) | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 | ≥99.99 |
| Rejection rate | ≥10:1 | ≥10:1 | ≥10:1 | ≥10:1 | ≥10:1 | ≥8:1 |
| Air consumption(L/min) | 400~88 | 600~100 | 800~1600 | 1300~2200 | 1800~3600 | 2200~4000 |
Examples of Sorting
Product Advantages
* High resolution special camera with pixile 5400 elements,high reliability,long life and maintenance free LED light source;
* Efficient and stable software system,intelligent algorism,user friendly interface;
* High reliability ejectors,key parts from Japan,life time over 10 billion times;
* Better sorting accuracy,lower carryover,and bigger production capacity;
* Super identification and rejection for tiny bad spot and micro impurities;
* Good at sorting salt of all kinds.

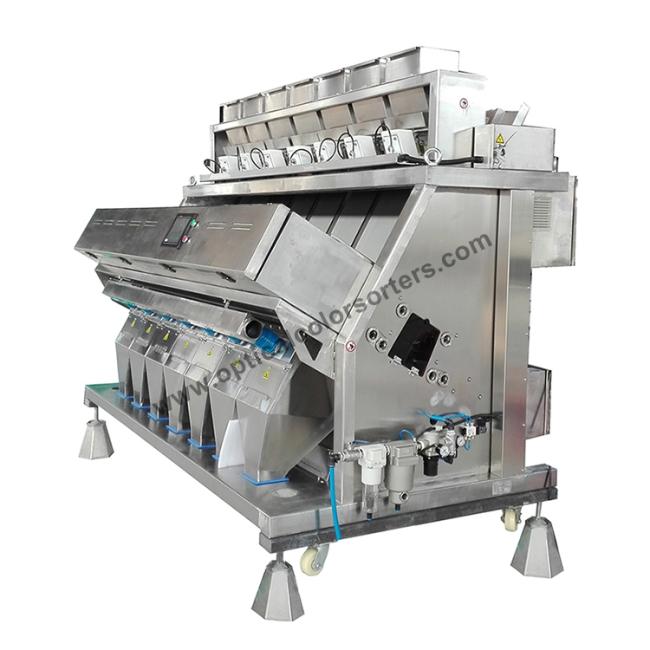

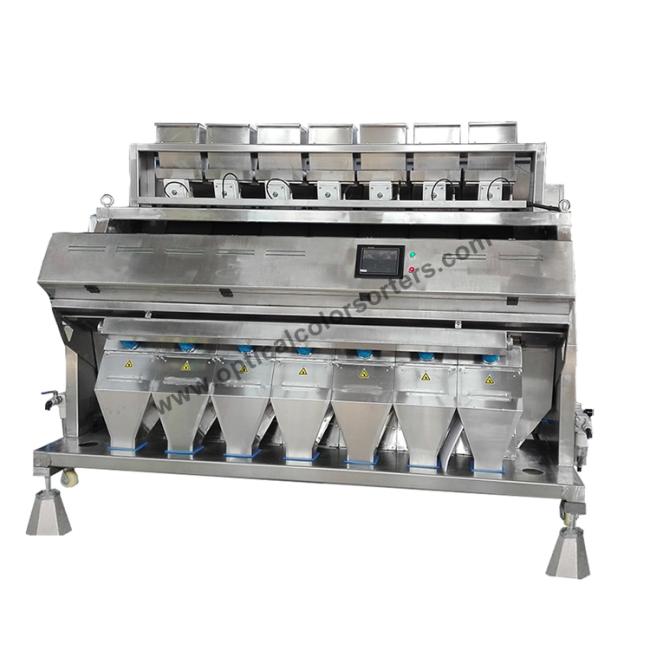

Products Show
