User Friendly Belt Color Sorter With Automatic Fault Protection Function
Belt Type Color Sorter for Dehydrated Vegetables
Product Description
Belt type color sorter machine can be divided into double track color separator and single track color separator. Belt color sorter is suitable for applications in food processing companies of nuts, seafood, fresh cut vegetables, dried fruits, dried fruits, fresh fruits, freeze-dried fruits and vegetables.
Technical Parameters
| Model | BCS640B | BCS1280B | BCS1600B |
| Output(t/h) | 1.2-6 | 2.5-12 | 3.2-15 |
| Carryover (bad: good) | ≥15:1 | ≥15:1 | ≥15:1 |
| Accuracy (%) | ≥99 | ≥99 | ≥99 |
| Voltage (V/Hz) | 220V/50HZ | 220V/50HZ | 220V/50HZ |
| Power (Kw) | 1.0-1.3 | 1.6-2.6 | 2.0-3.3 |
| Air pressure (Mpa) | 0.6-1.0 | 0.6-1.0 | 0.6-1.0 |
| Consumption (L/min) | ＜1024 | ＜2048 | ＜2560 |
| Weight (Kg) | 1000 | 1360 | 1900 |
| Dimensions (mm) | 3108*993*1680 | 3108*1986*1680 | 3108*2306*1680 |
Examples of Sorting

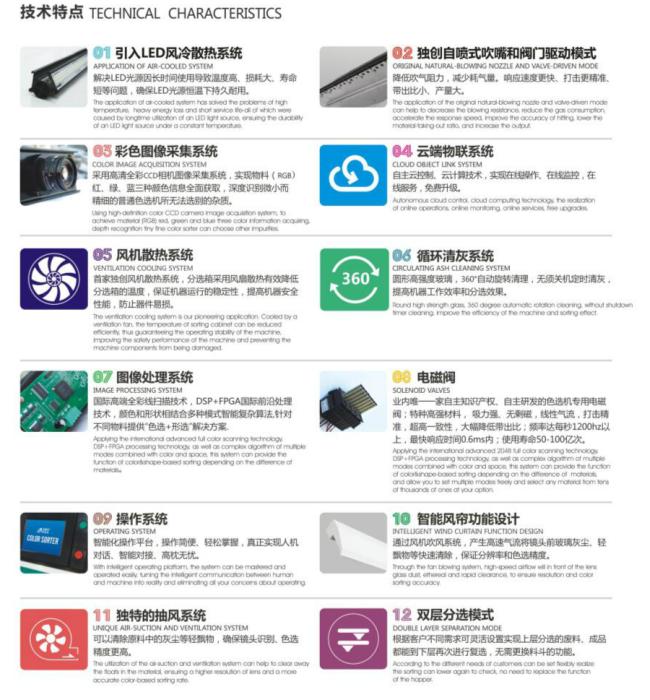

Features and Function
A bucket with a discharging system, no need to replace the hopper can be arranged flexibly. Scrap, finished all can check scheme.
Automatic fault protection and notification functions can stop the equipment and inform the operator of the danger before it is damaged, more effectively.
The sorting machine can be equipped with imported dedicated solenoid valves or self-made high frequency solenoid valves.

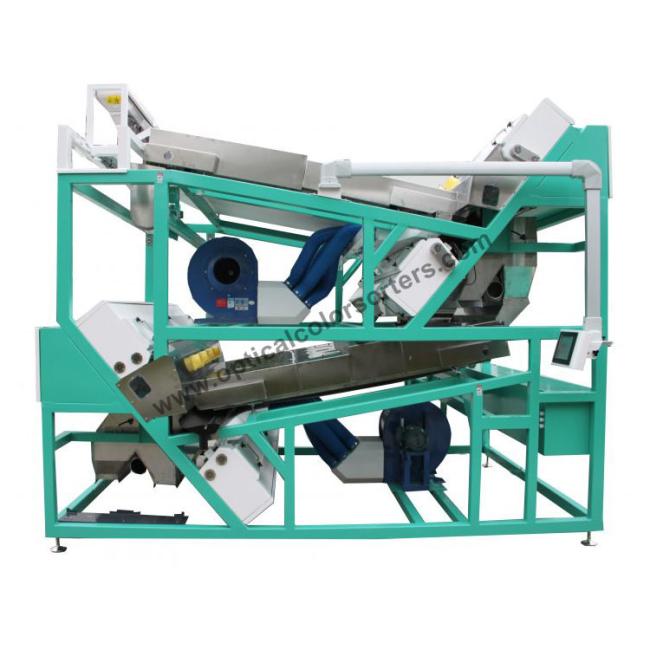

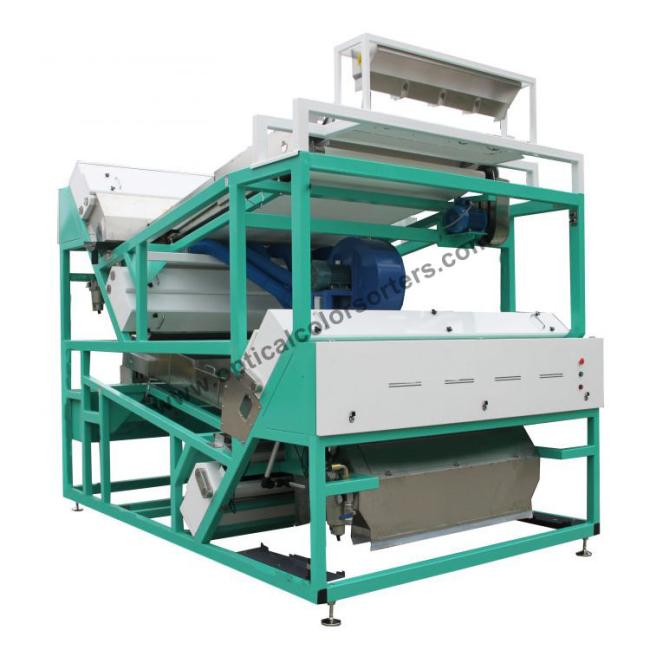

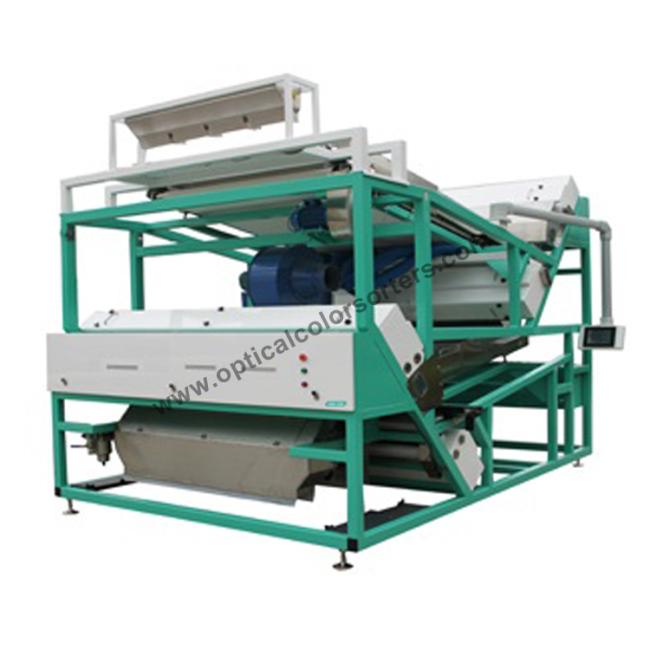

Products Show
