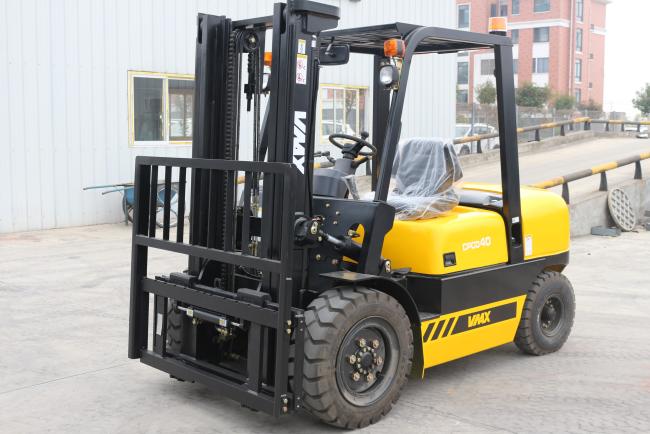

Hydraulic Transmission 1070mm Diesel Forklift Truck

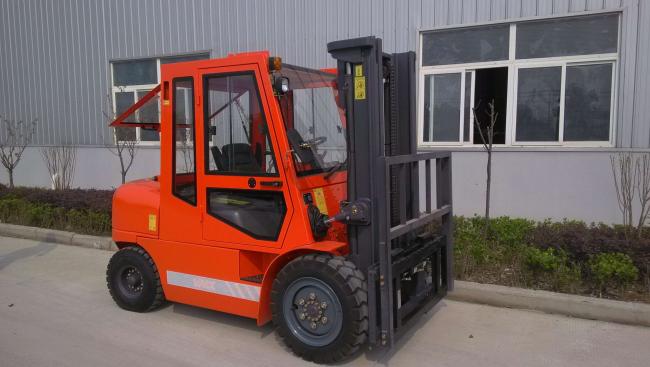

1070mm Fork Length Diesel Powered Forklift Optional Color 1 Year Warranty
STANDARD INSTALLMENT:
CPCD40: Load capacity 4000kg,hydraulic transmission,3m 2stage duplex mast, China engine XINCHAI 498,1070mm fork, Electronic gear transmission, key switch,Pneumatic tyres,Safety seat,Free tool box and spare parts.
OPTION:
As a professional manufacturer of forklift, we also can offer you customized service, the following items are optional:
Container mast, for example, 2-stage full free mast of 3m, 3-stage full free mast of 4.5m/ 4.8m
side shifter, fork positioner,longer forks, fork extension and all kinds of forklift attachment.
For the details of customized configurations and options, please contact with us. VMAX professional service will be impressed on you.
| Manufacturer's Data and Desigh Characteristics | ||||
| Specifications | ||||
| 1 | Manufacturer | |||
| 2 | Model | Unit | CPCD40 | |
| 3 | Power type | DIESEL | ||
| 4 | Rated capacity | kg | 4000 | |
| 5 | Load center | mm | 500 | |
| 6 | Operator type | |||
| Size | ||||
| 7 | Max. lift height of mast with Load-backrest | mm | 4275 | |
| 8 | Max.lift height of fork | mm | 3000 | |
| 9 | Height of mast | mm | 2150 | |
| 10 | Free lift height(with backrest) | mm | 150 | |
| 11 | Height of Load-backrest | mm | 1235 | |
| 12 | Distance from seat to overhead guard | mm | ||
| 13 | overhead guard height | mm | 2105 | |
| 14 | Length without fork | mm | 2895 | |
| 15 | Front overhang | mm | 500 | |
| 16 | Rear overhang | mm | 495 | |
| 17 | Wheel base | mm | 1900 | |
| 18 | The height of traction pin | mm | 330 | |
| 19 | Min. ground clearance | mm | 130 | |
| 20 | Overall width | mm | 1410 | |
| 21 | The distance between forks | mm | 1290/260 | |
| 22 | Tread(front /rear) | mm | 1160/1065 | |
| 23 | Min. Turning radius(outside) | mm | 2700 | |
| 24 | Min. Turning radius(inside) | mm | 230 | |
| 25 | Min. Intersecting aisle | mm | 2685 | |
| 26 | Mast tilt angle | deg | ||
| 27 | Fork size | mm | 1070*130*50 | |
| Performance | ||||
| 28 | Speeds |
Max.Drive speeds(with/without full load) | km/h | 18/19 |
| 29 | Lifting speeds (with /without full load) | mm/s | 350/380 | |
| 30 | Lowering speeds(with /without full load) | mm/s | 350/400 | |
| 31 | Max. tractive force(with /without full load) | KN | 20/18 | |
| 32 | Max.grade ability (with/without full load) | % | 15/18 | |
| Weight | ||||
| 33 | Total weight | kg | 5310 | |
| 34 | Weight Distribution full load (front/ rear) | kg | 8380/930 | |
| 35 | Weight Distribution zero load(front / rear) | kg | 2120/3190 | |
| Wheels and Tyres | ||||
| 36 | Quantity of wheels | |||
| 37 | Type of tyres | |||
| 38 | Tires | Front | 250-15-16PR | |
| 39 | Rear | 6.50-10-10PR | ||
| 40 | Driving Brake | |||
| 41 | Parking Brake | |||
| Control device for driving and transmitting | ||||
| 42 | Battery | V/AH | ||
| 43 | Engine (standard) | Model | XINCHAI 498 | |
| 44 | Rated output | kw/rpm | 45/2500 | |
| 45 | Rated torque | N.m/rpm | 198/1800 | |
| 46 | No.of cylinder | 4-98X105 | ||
| 47 | Displacement | L | 3.168 | |
| 48 | Fuel tank capacity | L | 70 | |
| 49 | Number of speeds for transmission | |||
