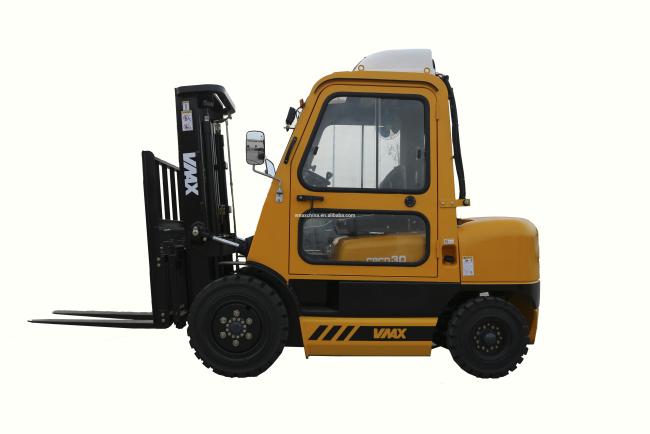

3 ton capacity diesel engine forklift truck CPCD30 with closed cabin with air condition ISUZU Mitsubishi engine optional

Name: 3 ton capacity diesel engine forklift truck CPCD30 with closed cabin with air condition ISUZU Mitsubishi engine optional
Brand: Anhui Banghao Optoelectronic Technology Co., Ltd

Price Negotiable

Price: Negotiable

MOQ: 1set

Delivery Time: 30days

Brand: vmax

Product Description

Products Description

3 ton capacity diesel engine forklift truck CPCD30 with closed cabin with air condition ISUZU Mitsubishi engine optional

1) Engine optional: China Xinchai Quanchai 490/ 498, optional Euro 3 standard; Japan Isuzu C240/4JG2, Mitsubishi S4S, Yanmar,TNE92/TNE98, Cummins, etc.;

2) Mast optional: 3/4/4.5/5/5.5/6/7m duplex mast, 3.6/4/4.5/5/5.5/6m triplex mast, 3/3.3/3.5/4/m duplex full free mast.

3) Transmission: Automatic/manual;

4) Tire: pneumatic/Solid/non-mark solid;

5) Forks: 1070/1220/1370/1520/1670/1820/1970mm;

6) Attachments: Side shifter, fork positoner, fork sleeve, paper roller clamp, bale clamp, drum clamp, load extender, rotator,fork clamps, push/pull, etc..

7) Additional: cabin, heating, fan, air conditioner, high exhaust, paper fold, USB, camera & image, suspension seat, etc..

Engine China 490	Engine power	Kw/rpm	40/2650
	No. of cylinders	Kw/rpm	4-90x105
	Rated torque	n.m/rpm	160/1800-1900
Engine Japan ISUZU C240	Engine power	Kw/rpm	35.4/2500
	No. of cylinders		4-86x102
	Rated torque	n.m/rpm	137.7/1800
Engine Japan Mitsubishi S4S	Engine power	kw/rpm	35.3/2250
	No. of cylinder		4-94x120
	Rated torque	n.m/rpm	165/1700
Main performance parameters	Max drive speed(with/without load)	km/h	18/20
	Lifting speed( with/without load)	mm/h	470/520
	Max. Gradeability	%	20/20
Lifting mast height	Max. lifting height of forks(standard)	mm	3000
	Max.lift height of mast with load-backrest(standard)	KN	4250
	Height of mast(standard)	KN	2085
Size	Free lift height(standard)	mm	160
	Distance from seat to overhead guard	mm	1240
	Overhead guard	mm	2085
	Overall length without fork	mm	2730
	Overall width	mm	1225
	Front overhang	mm	479
	Rear Overhang	mm	498.5
	Wheel base	mm	1740
	Height of traction pin	mm	310
	Min. ground clearance	mm	135
	Distance between forks	mm	250-1060
	Tread (front/rear)	mm	1000/970
	Min. turning radius (outside/inside)	mm	2400/200
	Min. intersecting aisle	mm	2380
	Mast tilt angle	.	6/12
	Fork size	mm	1070x125x50
Weight	Total weight	kg	4380
	Weight of distribution full load(front/rear)	kg	6543/727
	Weight distribution zero load(front/rear)	kg	1708/2562
Tires	Quantity of wheels		2x2
	Type of tyres		Pneumatic tires
	Front		28x9-15-12PR
	Rear		6.50-10-10PR

Details Images

Power system

Equipped with Chinese powerful and reliable engines with excellent enviromental performance,original imported ISUZU,Mitsubishi and Yanmar engine are optional.

Security system

Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from all sides.

Lighting system

Equipped with full set of LED lamps,which are brighter and energy saving.

Reliable lifting system

Wide-view mast design,providing superior vision,making the operation more security.

High performance hydraulic system

Equipped with load sensing priority hydraulic system,flxible steering,mast lifting speed increased by 20%.

Comfortable driving space

Lengthened wheelbase design,reasonable functional layout,super comfortable and larger ddriving space.
