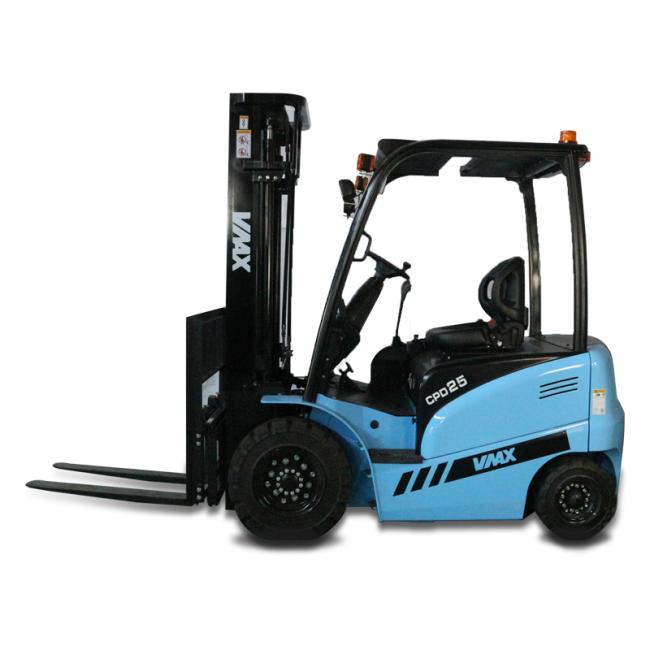

Hydraumatic Pedal Electric Warehouse Forklift Machine 2500kg CPD25
Brand Name:vmax
Model Number:CPD25
Type:electric fork-lift truck
Power Souce:AC Motor
Rated Loading Capacity:2500kg
Max. Lifting Height:6000mm
Min. Lifting Height:3000mm
Fork Length:1070
Fork Width:120
Overall Dimensions:3350*1150*2220
Certification:ISO,CE,SGS,BV
After-sales Service Provided:Engineers available to service machinery overseas
Operation type:car type
Load capacity:2500
Drive System:DC/AC
Electrical control system:Curtis from America
Fork size:40X120X1070
Load center:500m
Weight with battery:3450
Type of tyres:Pneumatic tire
Safety Device:Safety seat with steady
Others:Free tool box,spare parts
Electric Warehouse Forklift SPECIFICATION:
| SPECIFICATIONS of 1.5-3.5Ton Electric Forklift | ||||||||
| Manufacturer's Data and Desigh Characteristics | ||||||||
| Feature | ||||||||
| 1.1 | Brand | Vmax | Vmax | Vmax | Vmax | Vmax | Vmax | |
| 1.2 | Model | CPD15 | CPD18 | CPD20 | CPD25 | CPD30 | CPD35 | |
| 1.4 | Operation type | car type | car type | car type | car type | car type | car type | |
| 1.5 | Load capacity | Q (kg) | 1500 | 1800 | 2000 | 2500 | 3000 | 3500 |
| 1.6 | Load center | C (mm) | 500 | 500 | 500 | 500 | 500 | 500 |
| 2.1 |
Weight with battery |
kg | 3450 | 3650 | 4400 | 4600 | 4980 | 5100 |
| Tire,chassis | ||||||||
| 3.1 | Tire Type,Driving wheel/Load wheel |
Pneumatic tire |
Pneumatic tire |
Pneumatic tire |
Pneumatic tire |
Pneumatic tire |
Pneumatic tire | |
| size | ||||||||
| 4.1 |
backward |
α/β(°) | 6/12 | 6/12 | 6/12 | 6/12 | 6/12 | 6/12 |
| 4.2 |
after mast fall |
h1(mm) | 1995 | 1995 | 1995 | 1995 | 2025 | 2025 |
| 4.3 | Free lift height | h2(mm) | 120 | 120 | 100 | 100 | 100 | 100 |
| 4.4 |
Standard Mast height |
h3(mm) | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| 4.7 |
Overhead guard height |
h6(mm) | 2170 | 2170 | 2220 | 2220 | 2220 | 2220 |
| 4.8 | Overall length | I1(mm) | 2995 | 2995 | 3350 | 3350 | 3620 | 3620 |
| 4.9 | Vehicle width | b1/b2(mm) | 1080/1070 | 1080/1070 | 1150 | 1150 | 1220 | 1220 |
| 4.1 | Fork size | s/e/l(mm) | 40x100x920 | 40X100X920 | 40X120X1070 | 40X120X1070 | 45X125X1070 | 50X125X1070 |
| 4.11 |
with 1000X1200mm pallet |
Ast(mm) | 3970 | 3970 | 4210 | 4210 | 4520 | 4520 |
| 4.12 |
with 800X1200mm pallet |
Ast(mm) | 4015 | 4015 | 4260 | 4260 | 4560 | 4560 |
| 4.13 | Turning radius | Wa(mm) | 1920 | 1920 | 2100 | 2100 | 2300 | 2300 |
| Performance | ||||||||
| 5.1 |
withoutload |
km/h | 10.5/11 | 10.5/11 | 13/13.5 | 13/13.5 | 11/12 | 11/12 |
| 5.2 | lifting speed,loaded/load | m/s | 0.3/0.45 | 0.3/0.45 | 0.3/0.45 | 0.3/0.45 | 0.23/0.37 | 0.23/0.37 |
| 5.3 | Dropping speed loaded/without load |
m/s | 0.45/0.44 | 0.45/0.44 | 0.44/0.435 | 0.44/0.435 | 0.50/0.48 | 0.50/0.48 |
| 5.6 | Maximum traction,loaded |
N | 11000 | 11000 | 17000 | 17000 | 18000 | 18000 |
| 5.8 |
without load |
% | 10.5/14 | 10.5/14 | 10.5/14 | 10.5/14 | 10.5/12 | 10.5/12 |
| Drive | ||||||||
| 6.1 |
Drive motor power |
kw | 8 | 8 | 11 | 11 | 16.6 | 16.6 |
| 6.2 |
Drive motor power |
kw | 11 | 11 | 8.6 | 8.6 | 10 | 10 |
| 6.4 |
Level voltage/ Capacitance |
V/Ah |
48/400 (max545) |
48/400 (max545) |
48/500 (max700) |
48/630( max700) |
80/500(max550) | 80/500(max550) |
| Others | ||||||||
| 7.1 | Drive System | DC | DC | DC | DC | DC | DC | DC |
