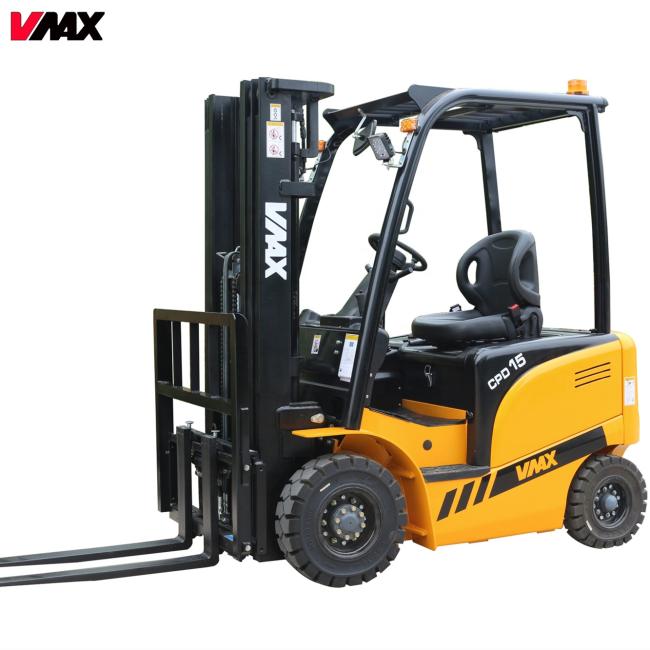

Capacity 1.5 Ton Mini Electric Forklift With Wide View Mast Solid Tire Side Shifter
VMAX Brand 1.5ton capacity electric used forklift with wide view mast solid tire side shifter

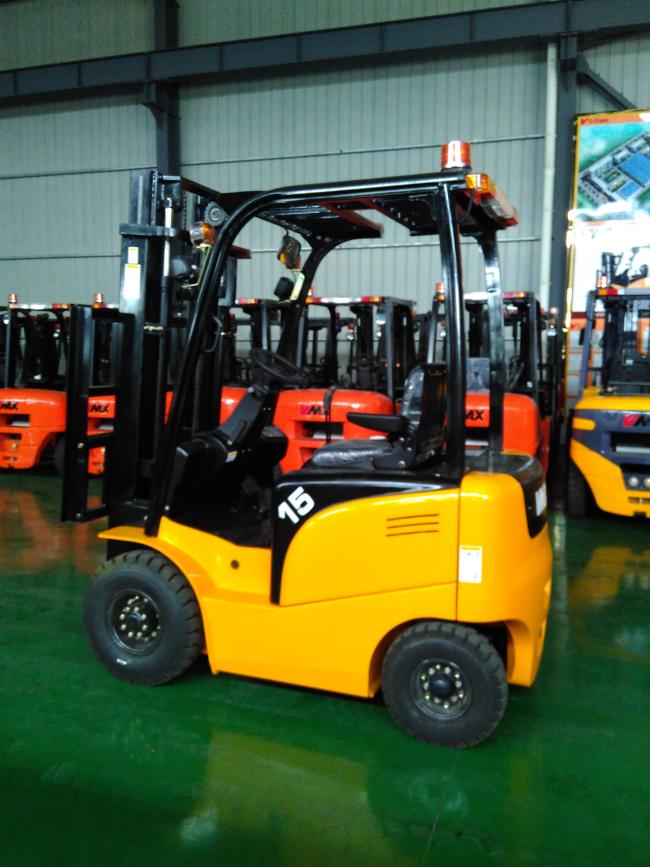

1.5ton electric forklift
1) China top brand battery, 48V/400Ah, water automatic filling system is poptional.
2) Mast optional: 3/4/4.5/5/5.5/6/7m duplex mast, 3.6/4/4.5/5/5.5/6m triplex mast, 3/3.3/3.5/4//4.5/5/5.5/6m duplex full free mast.
3) Transmission: Automatic/manual;
4) Tire: pneumatic/Solid/non-mark solid;
5) Forks: 1070/1220/1370/1520/1670/1820/1970mm;
6) Attachments: Side shifter, fork positoner, fork sleeve, paper roller clamp, bale clamp, drum clamp, load extender, rotator, fork clamps, push/pull, etc..
7) Additional: Cabin, heating, fan, air conditioner, high exhaust, paper fold, USB, camera & image, suspension seat, etc..
Now VMAX dealers has been wide spread in many countries like Russia, Australia,Turkey, Brazil, Mexico etc. Also We company had obtained the following certificates in this industry with the development of over 10 years:
1. CE certificate
2. ISO 9001:2008 Standard approved
3. BV&SGS Factory Audit Pass Report
4. Alibaba golden supplier for 7 years
Besides, we are always trying to be innovative and have won several patent certificate on forklift in China.
Currently the factory's capacity per year is 5000 sets(including all sorts of forklift) and averagely the leading production time is 20-30 days. While standing to expand our brand, we also gladly accept OEM based model in which you can pick Japan Engine/Curtis Controller/different forklift attachment and any you like.
VMAX do more than just selling product, but also provide material handling solution for customer. We're sure that it can satisfy your demand if needed.
| Main Information | |||||||
| 1.1 | Brand | VMAX | |||||
| 1.2 | Model | CPD15 | CPD20 | CPD25 | CPD30 | CPD35 | |
| 1.4 | Operation type | Drive in seat | Drive in seat | Drive in seat | Drive in seat | Drive in seat | |
| 1.5 | Load capacity | kg | 1500 | 2000 | 2500 | 3000 | 3500 |
| 1.6 | Load center | mm | 500 | 500 | 500 | 500 | 500 |
| 2.1 | Weight with battery | kg | 3120 | 4214 | 4270 | 4950 | 5010 |
| Tire,chassis | |||||||
| 3.1 | Tire Type,Driving wheel/Load wheel | Pneumatic tire | |||||
| 3.2 | Number of wheels X=driving wheel(front/behind) | 2X/2 | |||||
| 3.3 | Tire size (front/behind) | 6.50-10-12PR/5.00-8-8PR | 7.00-12-12PR/18X7-8PR | 28X9-12PR/18X7-8-14 | 28X9-12PR/18X7-8-14 | ||
| 3.4 | Service brake | Hydraumatic pedal | |||||
| 3.5 | Parking service | Mechanical manual | |||||
| Size | |||||||
| 4.1 | Mast tilt,Forward/backward | α/β(°) | 6/12 | 6/12 | 6/12 | 6/12 | 6/12 |
| 4.2 | Mast height after mast fall | mm | 1995 | 1995 | 1995 | 2025 | 2025 |
| 4.3 | Fork lift max height | mm | 4025 | 4045 | 4045 | 4160 | 4160 |
| 4.4 | Free lift height | mm | 140 | 150 | 150 | 150 | 150 |
| 4.5 | Standard Mast height | mm | 3000 | 3000 | 3000 | 3000 | 3000 |
| 4.6 | Overhead guard height | mm | 2100 | 2098 | 2098 | 2092 | 2092 |
| 4.7 | Overall length | mm | 2035 | 2353 | 2353 | 2507 | 2507 |
| 4.8 | Fork overhang | mm | 400 | 468.5 | 468.5 | 475 | 475 |
| 4.9 | From the rear | mm | 335 | 384 | 384 | 432 | 472 |
| 4.10 | Wheelbase | mm | 1360 | 1500 | 1500 | 1600 | 1600 |
| 4.11 | Minimum distance between the ground | mm | 110 | 110 | 110 | 110 | 110 |
| 4.12 | Tread (front/behind) | mm | 912/920 | 970/950 | 970/950 | 1000/970 | 1000/970 |
| 4.13 | Vehicle width | mm | 1090 | 1170 | 1170 | 1220 | 1220 |
| 4.14 | Fork size | mm | 1070x122x45 | 1070x125x45 | 1070x125x45 | 1070x125x45 | 1070x125x45 |
| 4.15 | Channel width, | mm | 3797 | 4040 | 4040 | 4105 | 4105 |
| 4.16 | Turning radius | mm | 1997 | 2172 | 2172 | 2360 | 2360 |
| Performance | |||||||
| 5.1 | Walking speed,loaded/withoutload | km/h | 13/15 | 12/14 | 12/14 | 14/15 | 14/15 |
| 5.2 | lifting speed,loaded/load | m/s | 240/450 | 320/450 | 320/450 | 300/400 | 300/400 |
| 5.3 | Dropping speed loaded/without load | m/s | 450/420 | 476/426 | 476/426 | 260/390 | 260/390 |
| 5.4 | Maximum traction,loaded | N | 15000 | 18000 | 18000 | 20000 | 21000 |
| 5.5 | Max grade ability,loaded/without load | % | 12/15 | 13/15 | 13/15 | 14/15 | 14/15 |
| Drive | |||||||
| 6.1 | Drive motor power | kw | 8 | 11 | 11 | 16.6 | 16.6 |
| 6.2 | Drive motor power | kw | 7.5 | 12 | 12 | 13.5 | 13.5 |
| 6.4 | Level voltage/Capacitance | V/Ah | 48/400 | 48/490 | 48/560 | 80/450 | 80/500 |
| Others | |||||||
| 7.1 | Drive System | DC/AC | |||||
| 7.2 | Electrical control system | Curtis from America | |||||
Details:
Q: Are you trading company or manufacturer ?
A: VMAX was founded in 2010, is a professional production and sales of forklift manufacturer.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-45 days if the goods are not in stock, it is according to quantity and model.
Q: Do you provide samples ?
A: Yes, VMAX accept the sample order.
Q: What is your terms of payment ?
A: T/T and L/C is accepted.
