Optional Color Gasoline LPG Forklift 2.5 Ton Automatic Transmission
2.5 ton forklift of LPG gasoline best quality of Japanese engine import hot sale now:
3m 2 stage duplex mast, pneumatic tyre, 1070mm fork, safety seat with belt , warning light.
| Generals | Model | Unit | CPQY25 | CPQYD25 | |
| Power type | Gasoline/LPG | ||||
| Rated capacity | Kg | 2500 | |||
| Load center | mm | 500 | |||
| Dimensions | Lift height | mm | 4500 | ||
| Free lift height | mm | 130 | |||
| Fork size (L×W×T) | mm | 1070×122×40 | |||
| Mast inclination F/R | Deg | 6°/12° | |||
| Front overhang | mm | 482 | |||
| Overall Dimensions | Length to face of fork | mm | 2630 | ||
| Overall width | mm | 1150 | |||
| Mast lowered height | mm | 2200 | |||
| Overhead guard height | mm | 2120 | |||
| Turning radius | mm | 2380 | |||
| Min. right angle aisle width | mm | 2000 | |||
| Performance | Travel speed | Unload I/II | Km/h | 9/20 | |
| Full load I/II | Km/h | 8.8/18.5 | |||
| Lift speed | mm/s | 480 | |||
| Max. grade ability | % | 20 | |||
| Max. drawbar pull | Kn | 14 | |||
| Self weight | Kg | 4020 | |||
| Wheels & Tires | Tires | Front | 7.00-12-12PR | ||
| Rear | 6.00-9-10PR | ||||
| Tread | Front Q | mm | 970 | ||
| Rear S | mm | 970 | |||
| Wheelbase | mm | 1650 | |||
|
Min. ground clearance (unload/full load) |
Mast | mm | 152/132 | ||
| Frame | mm | 158/138 | |||
| Drive units & Control | Battery | V/Ah | 12/90 | ||
| Engine | Model | Nissan K21 | |||
| Rated output | Kw/rpm | 31.2/2250 | |||
| Rated torque | N.m/rpm | 143.7/1600 | |||
| Displacement | cc | 2065 | |||
| Transmission | Type | Hydraulic | |||
| Shift Fwd/Rwd | 1/1 Power shift | ||||
| Operating pressure | Mpa | 17.5 | |||

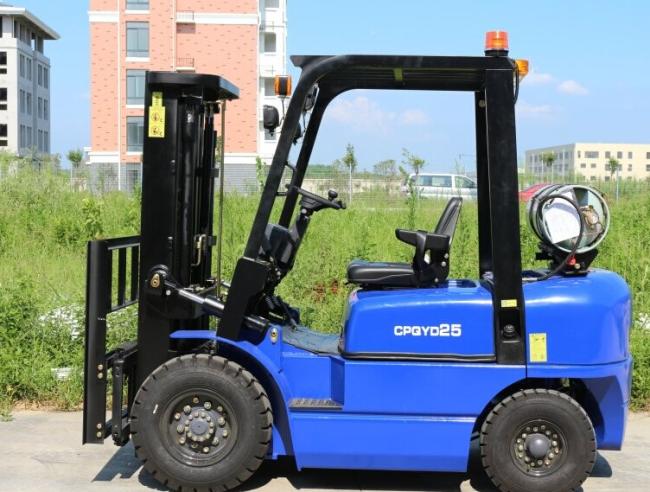

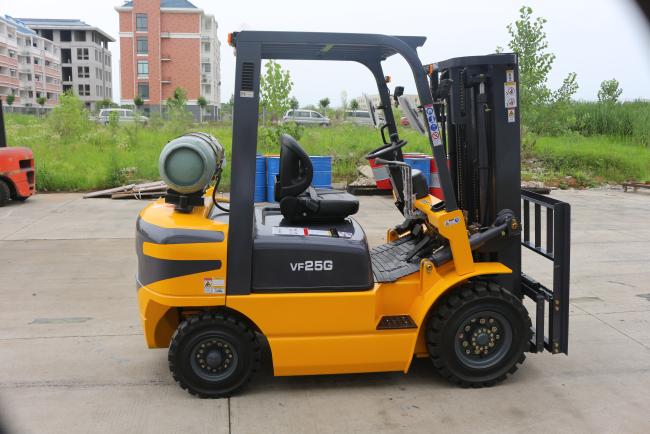

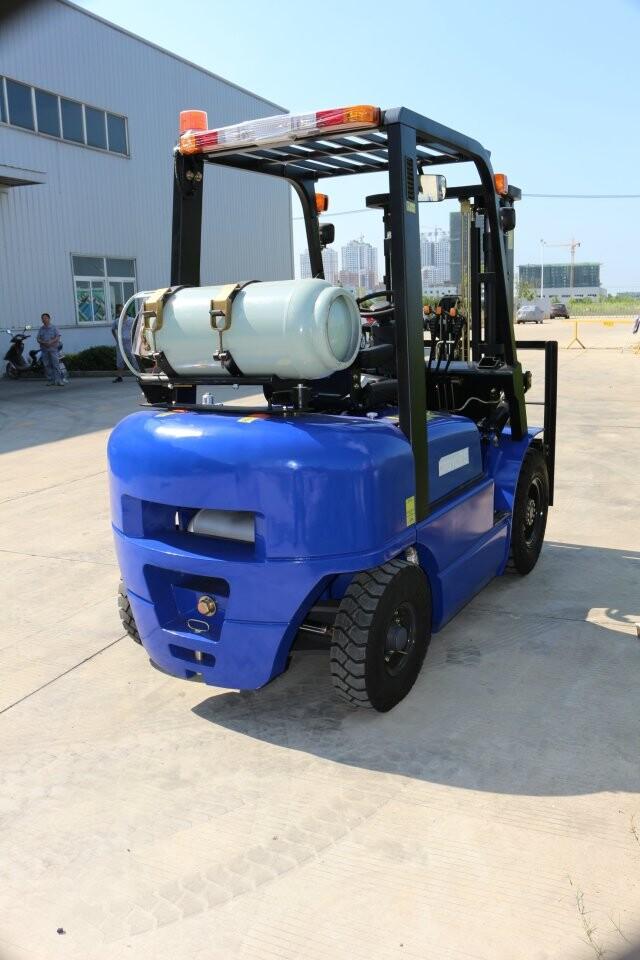

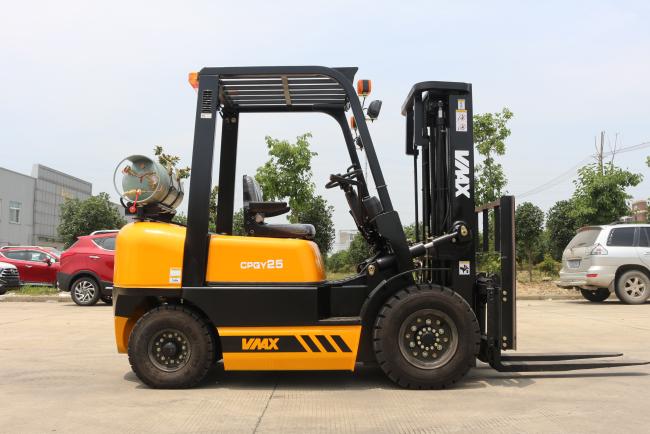

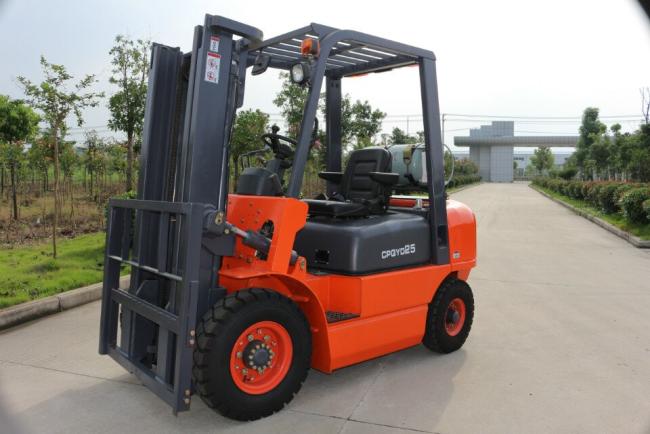

Please see details of trucks' real photos from our factory:
Anhui VMAX Heavy Industry Co.,Ltd is the subsidiary of Hengtian Group, and is responsible for the import and export business of VMAX the sales channels and marketing network management, and providing forklifts, spare parts, and after-service to overseas.

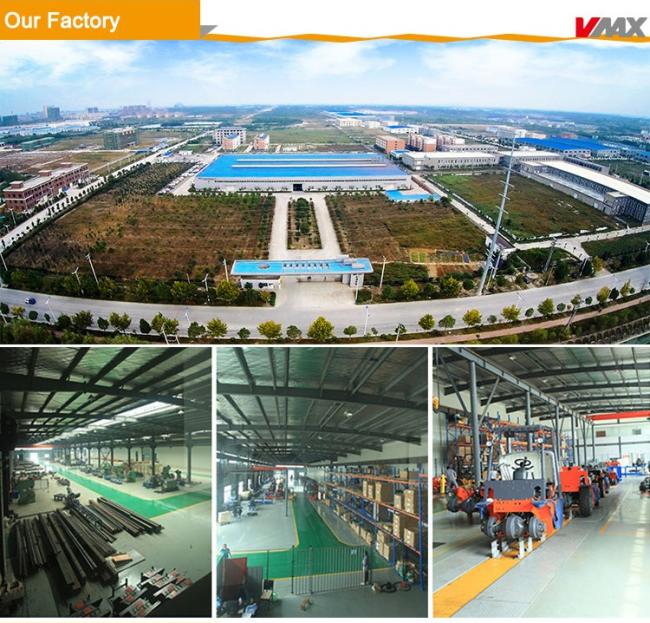

Anhui VMAX Heavy Industry Co.,Ltd is a major enterprise in the forklift truck manufacturing industry in China.VMAX has a complete product range of material handling equipment, from 1-16t internal combustion counterbalance forklift, 1-5t electric counterbalance forklift truck, warehouse equipment, reach stacker and more. Utilizing our state-of-art R&D center, our provincial level technology center, efficient production support system and our strong marketing leading system, more 40 abroad agents, all these offers strong support to our customers.
Q: Are you trading company or manufacturer ?
A: VMAX was founded in 2010, is a professional production and sales of forklift manufacturer.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-45 days if the goods are not in stock, it is according to quantity and model.
Q: Do you provide samples ?
A: Yes, VMAX accept the sample order.
Q: What is your terms of payment ?
A: T/T and L/C is accepted.
Any more questions, pls feel free to cntact with me.
