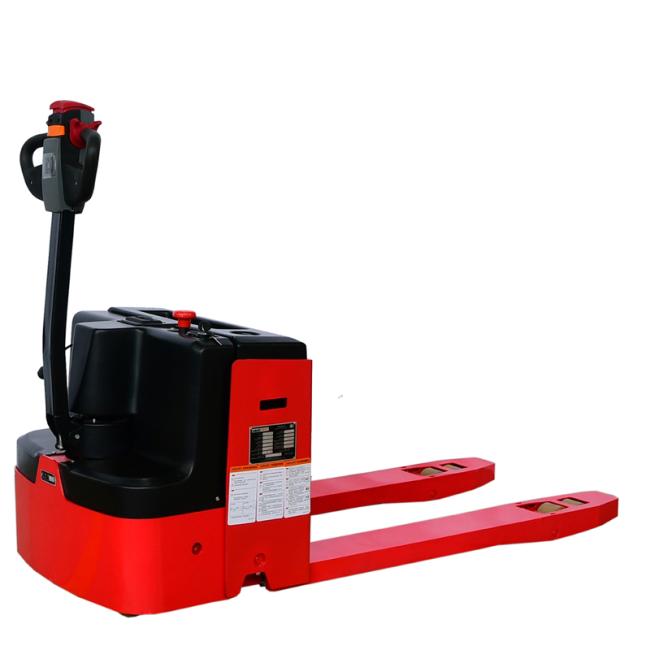

1.5 - 2.0T Walkie Electric Pallet Truck With Maintenance Free Battery
1.5-2.0T Walkie Pallet Truck with maintenance-free Battery
Main Features:
1. DC permanent magnet drive motor provide strong power and excellent performance;
2. Maintenance-free battery is worry-free. The built-in charger is more convenient to charge;
3. It is higher strength and impact resistance, durable for Strong fork structure;
4. The design of forklift is more reasonable with the low gravity, small size and light weight.
Specification:
| Brand | VMAX | ||
| Model | MEW15 | MEW20 | |
| Power Type | Battery | Battery | |
| Operation Type | Walkie | Walkie | |
| Service weight(incl. battery) | kg | 380 | 400 |
| Rated Capacity | Q(kg) | 1500 | 2000 |
| Load Center | C(mm) | 600 | 600 |
| Lifting height | h3(mm) | 115 | 115 |
| Forks size | l/e/s(mm) | 1150/160/45 | 1150/160/45 |
| Front Overhang | x(mm) | 969 | 969 |
| Turning radius | Wa(mm) | 1535 | 1535 |
| Max. climbing ability | %(tanθ ) | 3/10 | 3/10 |
| Driving speed(load/unload) | km/h | 3.5/4 | 3.6/3.7 |
| Lifting speed(load/unload) | mm/s | 39/46 | 39/46 |
| Lowering speed(load/unload) | mm/s | 46/40 | 46/40 |
Products Advantages:
Performance
● Powerful and 2.0T load which meet the needs of most customers.
● It adopts permanent magnet travel motor with excellent performance and low heat generation.
Comfort
● Compact design, small size, space saving, and smooth passage in a small passage;
● It is simple and beautiful with integrated joystick. All operation functions can be easily completed with one hand;
Safety
● It has three kinds of braking functions: release brake, reverse brake and emergency brake to ensure the safety of driving.
