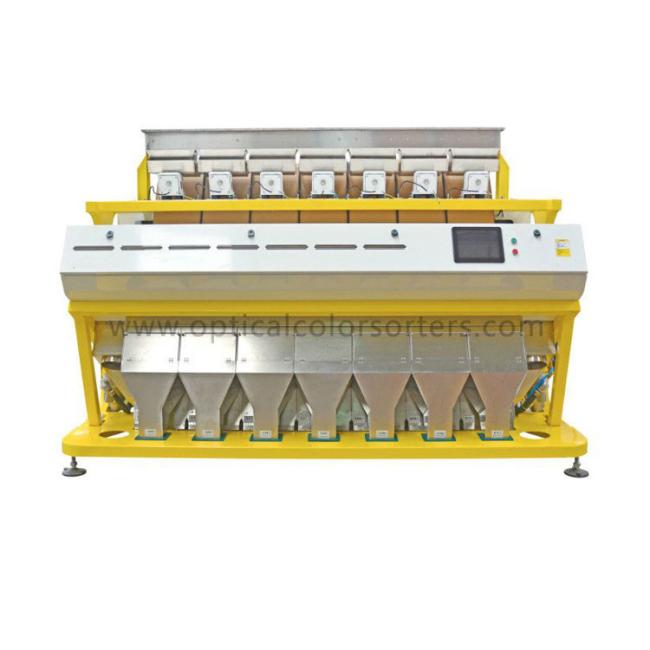

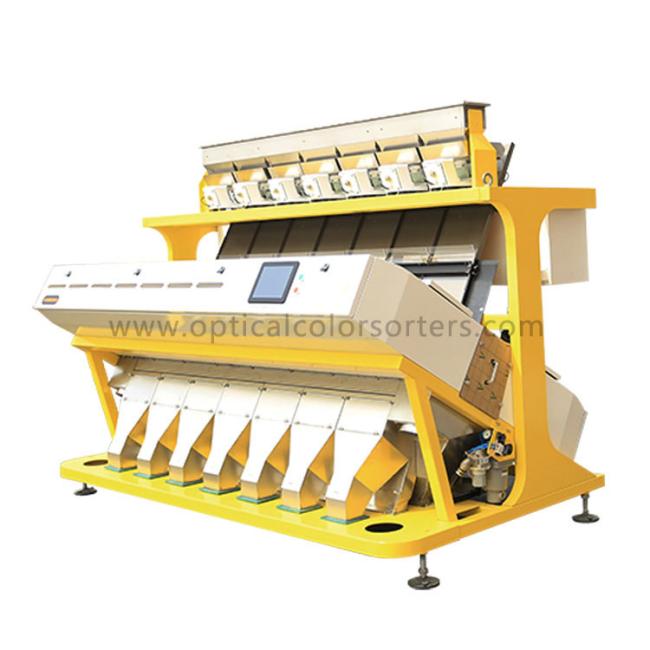

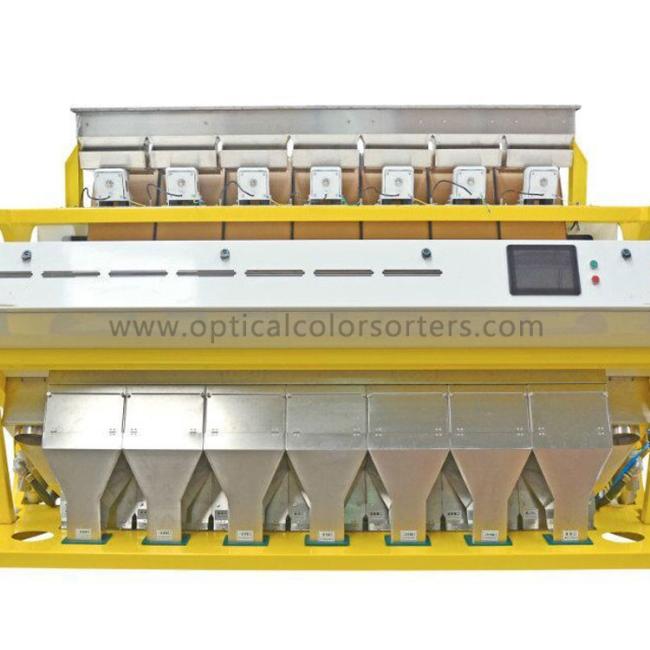

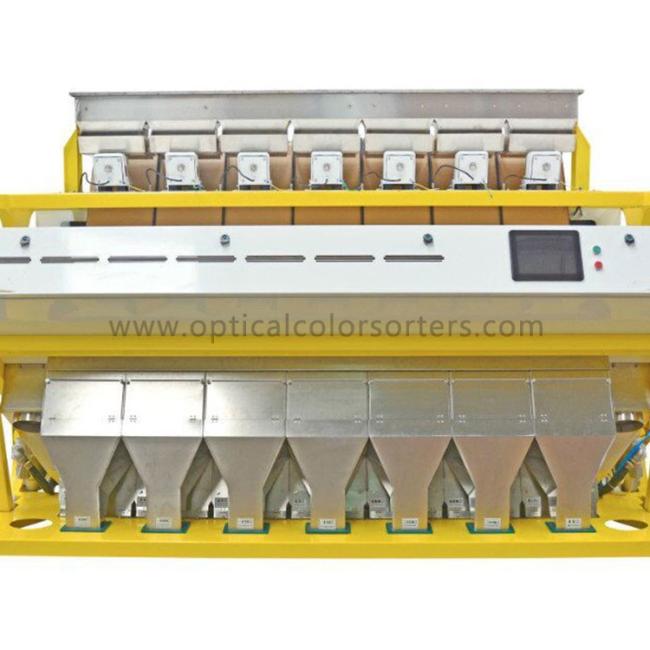

2.6KW Coffee Bean Intelligent Ccd Camera Color Sorter
NEWBELT Intelligent Optical Coffee Bean Color Sorter Green Coffee Bean Sorting Machine
Coffee is the second most sought world commodity, behind only oil. Yet well ahead of natural gas, gold, sugar, and corn. 90 percent of the world’s coffee production takes place in developing countries, and the top three producing countries are Brazil, Vietnam and Colombia. With this type of market demand and consumption, precision agricultural machines (such as optical sorters) play a critical role in the processing of Arabica and Robusta green coffee beans. BANGHAO took more time to optimize the selecting mode to get better accuracy of coffee beans after sorting. Whatever it is green coffee bean or roasted coffee bean, you will get excellent accepted beans by shapes or colors.
NEWBELT Beans Color Sorter Machine,can be applied into Coffee beans sorting, White or Black beans,Mung Beans' Processing plant,for separating the defects and remove the unwanted material out, to improve the quality of the end products.
For other beans like soybean, kidney bean, chickpea, hyacinth bean, lentil, pea and others, we can provide the excellent 99.9% accuracy and processing speed 0.3-10 ton per hour.
NEWBELT Intelligent Optical Coffee Bean Color Sorter Features
The Newest Tech Innovation Beans Color Sorter for Various Beans Sorting
* Optical Sorting technology With High Resolution 4096 Pixel CCD Camera,High Reliability And Long Life LED Light Source;
*With Efficient And Stable Software System, Intelligent Algorism, User Friendly Interface;
*With Better Sorting Accuracy, Lower Carryover, And Bigger Production Capacity for Coffee Beans sorting, Black Beans sorting etc;
*SOC Platform To Realize Stable, Reliable, Ultra-Fast Mass Data Processing;
*colour sorter Image capturing&Auto Intelligent sorting system with hundred programs can be applied for various beans sorting;
* BANGHAO provide Remote Debugging, Diagnosing And Maintenance. Four Core Technologies To Ensure Your Operations
NEWBELT Intelligent Optical Coffee Bean Color Sorter technical parameter
| Model | BHCBCS0003 | BHCBCS0005 | BHCBCS0007 | ||
| Throughput(T/H) | 1.0-3.0 | 2.0-5.0 | 3.0-8.0 | ||
| Voltage(V) | 110-250V(50-60HZ) | ||||
| Power(KW) | 1.8 | 2.6 | 3.5 | ||
| Weight/(KG) | 885 | 1275 | 1665 | ||
| Dimension(L*W*H/mm) | 1174*1658*2038 | 2402*1658*2038 | 3030*1658*2038 | ||
| Sorting accuracy(%) | ≥99 | ||||
| Rejection rate(%) | ≥10:1 | ||||
| Air consumption(L/min) | 800-1600 | 1300-2200 | 1800-3600 | ||
| Notes | Subject to different impurities of raw materials,parameters listed in table will change to some extent | ||||
Material Sorting
Sorting Result
NEWBELT Intelligent Optical Coffee Bean Color Sorter Green Coffee Bean Sorting Machine
Why Choose NEW BELT Coffee Bean Color Sorter ?
1) Designed and manufactured by a major Chinese color sorter company who has been devoted in color sorter
Manufacture for over 10 years, the technology is mature and the machine is long time tested by the market
2) Famous of high accuracy and persistence
3) All our machines can be customized, including Italian matrix ejectors, Japanese SMC ejectors, Japanese Nikon cameras, etc
4) OEM is available for all of our machines
5) Engineers available to provide installation and after sale service in all countries.
